I have two fingers that have had major reconstruction resulting in very poor circulation which at times, causes severe pain. It so happens that they are the same two that I use on the brake lever.
I purchased a heated brake lever that was supposed to be plug and play, however it arrived with the wrong connection. I sent pics but the new connector that I just received does not resemble anything that I can find on my machine.

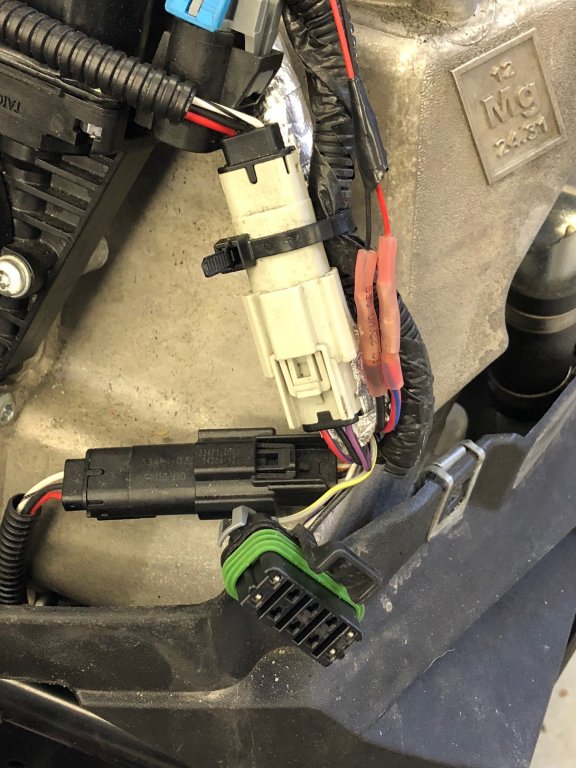

The above pic is the lower right side just below the reverse actuator and shows all available connectors. The one with green has about 4.5 volts on left and 12 volts on right side but the connector I received is just a very common standard 2 wire connector. My sled is a 2016 Viper LTX. I tried a direct 12 volt connection for a few second and the lever got too hot.
Questions:
1) Have there been wiring changes with the 2016 that would account for this?
2) Are there others out there that have done this installation and can help?
3) Any suggestions on where to tap into?
Any and all help much appreciated.
I purchased a heated brake lever that was supposed to be plug and play, however it arrived with the wrong connection. I sent pics but the new connector that I just received does not resemble anything that I can find on my machine.
The above pic is the lower right side just below the reverse actuator and shows all available connectors. The one with green has about 4.5 volts on left and 12 volts on right side but the connector I received is just a very common standard 2 wire connector. My sled is a 2016 Viper LTX. I tried a direct 12 volt connection for a few second and the lever got too hot.
Questions:
1) Have there been wiring changes with the 2016 that would account for this?
2) Are there others out there that have done this installation and can help?
3) Any suggestions on where to tap into?
Any and all help much appreciated.
blueironranger
TY 4 Stroke God
- Joined
- Feb 3, 2009
- Messages
- 2,002
- Age
- 44
- Location
- Iron Range MN
- Country
- USA
- Snowmobile
- 2014 Viper XTX
2009 Phazer MTX
My 14' has a 2 prong accessory plug on the two wires that you have a red and black connected to with butt connectors. Red/Blue is 12v key on power I believe.
blueironranger
TY 4 Stroke God
- Joined
- Feb 3, 2009
- Messages
- 2,002
- Age
- 44
- Location
- Iron Range MN
- Country
- USA
- Snowmobile
- 2014 Viper XTX
2009 Phazer MTX
blueironranger
TY 4 Stroke God
- Joined
- Feb 3, 2009
- Messages
- 2,002
- Age
- 44
- Location
- Iron Range MN
- Country
- USA
- Snowmobile
- 2014 Viper XTX
2009 Phazer MTX
What brand lever? The only heated one I can find is Skinz. Looks to have a 3 wires combing from the lever so there must be a high/low/off switch to install with it somewhere.
Dusty Dan
Lifetime Member
- Joined
- Jan 24, 2015
- Messages
- 211
- Country
- Canada
- Snowmobile
- 2016 SRViper LTX LE
2012 Vector
I was just going to send you a pic asking if it looked like that. Thank you very much, it explains a lot, they obviously changed the wiring sometime since 2014. I still have one concern though is I checked and it is 12 volts but when I ran 12 volts direct from a battery the handle got very hot. Any thoughts?Here is a picture
Dusty Dan
Lifetime Member
- Joined
- Jan 24, 2015
- Messages
- 211
- Country
- Canada
- Snowmobile
- 2016 SRViper LTX LE
2012 Vector
Yes, it is from them but there is just 2 wires, red and black. It is the same with the original as well as the second connector sent to me. The butt connectors look like they are for the heated shield on a helmet.What brand lever? The only heated one I can find is Skinz. Looks to have a 3 wires combing from the lever so there must be a high/low/off switch to install with it somewhere.
mtcooler
Extreme
Looks to me who ever put in your helmet plug cut the connector off.
Dusty Dan
Lifetime Member
- Joined
- Jan 24, 2015
- Messages
- 211
- Country
- Canada
- Snowmobile
- 2016 SRViper LTX LE
2012 Vector
That is not only possible but likely. I bought my sled brand new though so as far as I know it is factory. \i can try and jumper those wires and see what happens, but I already tested and it seems a full 12 volts.Looks to me who ever put in your helmet plug cut the connector off.
mtcooler
Extreme
Who installed helmet plug?Does the wire harness for heated brake lever comes with a fuse inline?
blueironranger
TY 4 Stroke God
- Joined
- Feb 3, 2009
- Messages
- 2,002
- Age
- 44
- Location
- Iron Range MN
- Country
- USA
- Snowmobile
- 2014 Viper XTX
2009 Phazer MTX
I don't know of an accessory plug on the sled with variable voltage. The only way to control the heat is voltage or resistance. I can't seem to find a picture online of the Cat/Viper version, did it come with any sort of switch? Sometimes the switch has resistors built in like the one for the factory heated seat. I can't believe that they would just have it plug straight into 12v without and current limiting device.
Dusty Dan
Lifetime Member
- Joined
- Jan 24, 2015
- Messages
- 211
- Country
- Canada
- Snowmobile
- 2016 SRViper LTX LE
2012 Vector
I have no idea. I bought it new unless that is installed by the dealer it should be factory. Yes, there is an inline fuse.Looks to me who ever put in your helmet plug cut the connector off.
Dusty Dan
Lifetime Member
- Joined
- Jan 24, 2015
- Messages
- 211
- Country
- Canada
- Snowmobile
- 2016 SRViper LTX LE
2012 Vector
I don't know of an accessory plug on the sled with variable voltage. The only way to control the heat is voltage or resistance. I can't seem to find a picture online of the Cat/Viper version, did it come with any sort of switch? Sometimes the switch has resistors built in like the one for the factory heated seat. I can't believe that they would just have it plug straight into 12v without and current limiting device.
Dusty Dan
Lifetime Member
- Joined
- Jan 24, 2015
- Messages
- 211
- Country
- Canada
- Snowmobile
- 2016 SRViper LTX LE
2012 Vector
I agree, but no switch is supplied. I had thought that the connection would be controlled by the hand or thumb warmer switch. I have sent multiple emails and pics to supplier but no reply. Really frustrating.I don't know of an accessory plug on the sled with variable voltage. The only way to control the heat is voltage or resistance. I can't seem to find a picture online of the Cat/Viper version, did it come with any sort of switch? Sometimes the switch has resistors built in like the one for the factory heated seat. I can't believe that they would just have it plug straight into 12v without and current limiting device.
mtcooler
Extreme
The current limiting device is built right into the accessory being plugged in such as heated helmet shield or gps. You just can't hook a gps to 12v with out the current limiting device that is built into the factory cord that comes with it, it will fry i did it once.
sxr70001
Lifetime Member
- Joined
- Dec 4, 2010
- Messages
- 1,109
- Location
- Michigan
- Country
- USA
- Snowmobile
- Sidewinder LTX SE
SR Viper RTX SE
If you can find an old potentiometer like on the old Yamaha sleds handwarmers you could wire it into the hot wire (series) and adjust the heat from there? Just a thought.
