Expandable Tunnel Bag Measurements?

[DigitalFusion]

Hey All,

My Phazer has a cut down seat and no under-seat exhaust. I want to get a tunnel bag for it, and I think the expandable one for the viper will work. Is there anyone that would be able to measure theirs so I could see if it would work? The measurements I need are the yellow and red lines in the attached image



[ishpeming fan]

about 16 inches



[DigitalFusion]

Is that for the yellow line? If so, thats a lot more than I figured! How long is the entire bag?



[ishpeming fan]

yes the yellow line that you had in the picture. I started at the strap buckle like in the picture. The entire length starting behind the buckle is about 30 inches or so.



[TILAM1]

The red vertical line is 7".



[blueironranger]

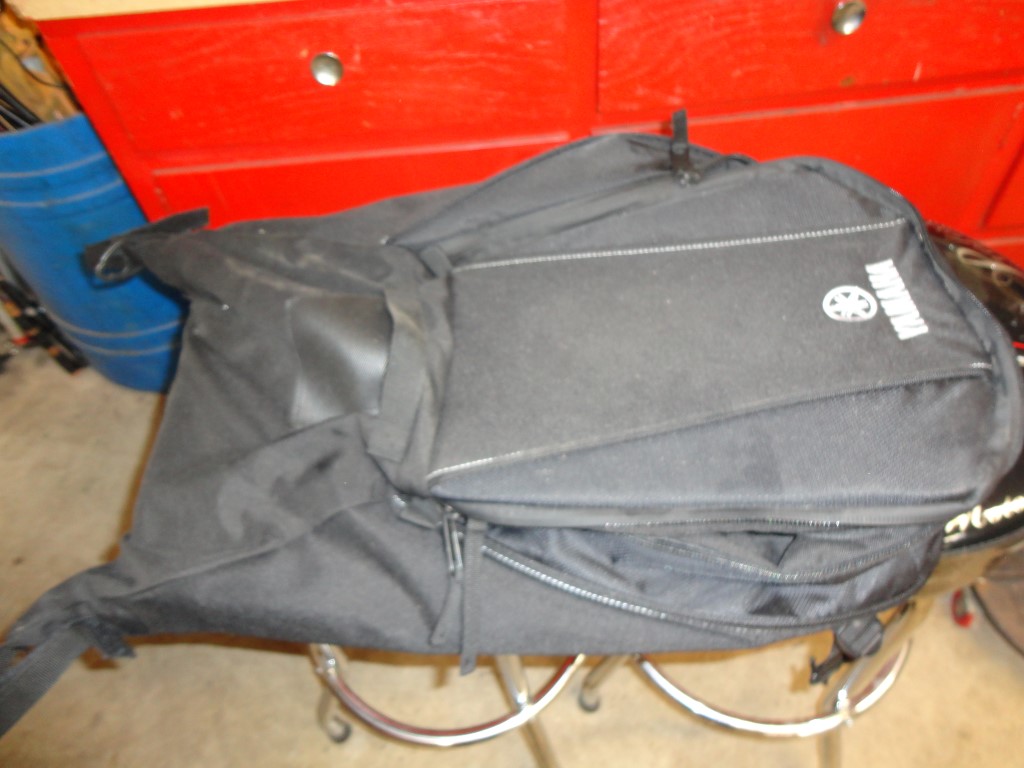

Does this help, tossed my Viper bag on my MTX



[DigitalFusion]

Man, thanks to everyone helping me out there!

If my yellow line stopped where the bag stopped (not the straps), how long would that be?



[ishpeming fan]

your killing me smalls, LOL, you can take 3 inches off for all the measurements, 13 and 27. I hope this helps you.



[DigitalFusion]

Seriously, thank you, and thanks to all that posted!

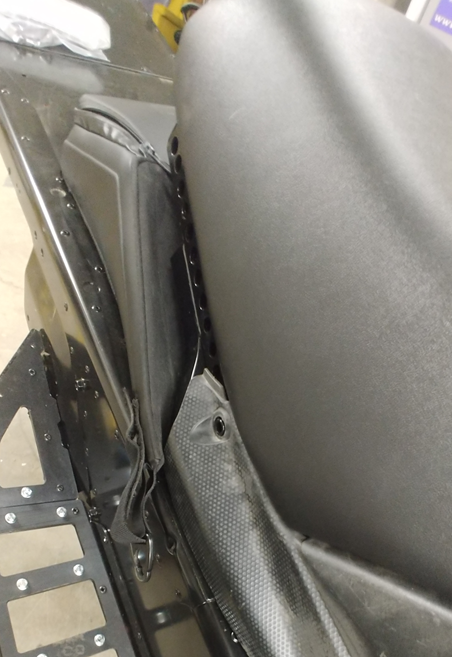

I grabbed the small tunnel bag off my Viper and it seemed like the right angle, but I want something bigger for the phazer. I didnt want to order one just to find out it wasnt even close.

I think it might work. Im just concerned about where it will actually end up. If the tapered/front ends up too far forward in order to have it flush with the end of the seat, it would be really annoying. I could cut the mounting straps off and bolt it to the seat rail if needed, but it would be great if I could swap the bags between the phazer and viper.

Plus, it seems like the expandable one is much wider than the short version (it goes from tunnel edge to tunnel edge right?) Even the small one sicks out a bit and I cant help but feel like they will be wings that will just grab snow and/or catch the wind.



[ishpeming fan]

always willing to help any way I can. yes the bag is as wide as the viper tunnel. From your picks it looks like it will work. the front mount straps go into the stock location and the rear goes under the bumper. viper had holes in it stock so will most likely have to drill some mount holes on the underside of your bumper. I believe the new bag will come the the front hardware that you will have to drill a hole to install the mount studs that the front of bag attaches to.



[TILAM1]

Here's a mounting option. just use the strap through the cam buckle and don't need to wrap around bumper.
Yamaha P/N SMA-SNAPS-03-CM


http://yamaha-motor.ca/eshop/detail...oup=SM&unitYear=2017&items_per_page=12&page=2



[cannondale27]

I have a bag used once I would sell for half price so $50 Digital. PM me. Comes with the mushrooms and rivets to mount on side of sled.
https://www.ebay.com/i/253379148262?chn=ps



[DigitalFusion]

perfect! PM coming your way!



[DigitalFusion]

Here's a mounting option. just use the strap through the cam buckle and don't need to wrap around bumper.
Yamaha P/N SMA-SNAPS-03-CM
http://yamaha-motor.ca/eshop/detail.php?sectionId=AC&groupId=19&subGroupId=15&categoryId=64&itemId=2006&unitId=4750&unitName=2017+SRViper+R-TX+SE&unitGroup=SM&unitYear=2017&items_per_page=12&page=2

FYI for future searchers. The US part number is SMA-LUGGE-HW-KT



[ishpeming fan]

Just wondering if you got the bag mounted yet? If so post some pics so we can check it out!
