Tuesday
Veteran
Easiest follow what I have done so far from here.
http://www.snowestonline.com/forum/show ... p?t=200330
I am at the point that I need to correct connector to plug into the mcx-box. Anyone know what these are called, part number, where I can find them.
Thanks
My wires do not have plugs
http://www.snowestonline.com/forum/show ... p?t=200330
I am at the point that I need to correct connector to plug into the mcx-box. Anyone know what these are called, part number, where I can find them.
Thanks
My wires do not have plugs
Tuesday
Veteran
Mine
yukonranger
Pro
I believe those wires must be put into on of the existing efi box plugs I could be wrong though, more pics would help. You can always call PG Yamaha and those guys will gladly help you out.
Tuesday
Veteran
rxrider
Jan-Ove Pedersen
- Joined
- Apr 25, 2003
- Messages
- 7,356
- Age
- 59
- Location
- Lakselv - 70N & 25E
- Country
- Norway
- Snowmobile
- 2014 Phazer XTX, 2013 Phazer RTX, 2008 Apex RTX, 2007 Warrior, 2006 Attak
I'll check with my friend right away, he's out in my Turbo Garage working on his sled, I'll ask him how it's supposed to be hooked up the the MCX ECU.
Tuesday
Veteran
Thanks, think I found the amp terminal connectors at an electronic store. Will know in a couple of days.
great white north
Extreme
display hook-up
The instructions that came with the display unit should show location in mcx eca control box plug. They are inserted in the the mcx plug that connects to mcx eca.
The instructions that came with the display unit should show location in mcx eca control box plug. They are inserted in the the mcx plug that connects to mcx eca.
great white north
Extreme
display unit
From the pictures posted above, it looks like there is a harness missing that connects the oxygen sensor to eca. The display unit's red wire is ignition power with key on and the black wire from display is connected to ground. The green and yellow wires are bus + and - lines from eca so you can read eca settings, fuel and boost maps and change them if required thru usb cable and lap top.
From the pictures posted above, it looks like there is a harness missing that connects the oxygen sensor to eca. The display unit's red wire is ignition power with key on and the black wire from display is connected to ground. The green and yellow wires are bus + and - lines from eca so you can read eca settings, fuel and boost maps and change them if required thru usb cable and lap top.
TBird
Expert
- Joined
- Dec 25, 2004
- Messages
- 379
- Location
- North of Sweden
- Country
- Sweden
- Snowmobile
- Yamaha Viper and Yamaha Nypex
No one reads his thread @ SnoWest i take it .

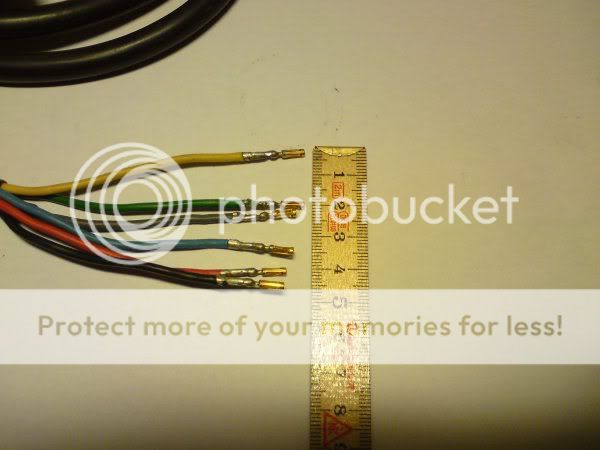

All basics is covered i hope, as i mailed installations instructions, and the missing cable is also covered, the critical part missing is the pins that is inserted in to the connector, i believe it's this: http://www.tycoelectronics.com/catalog/ ... 63261&N=14
But i'm not certain, anybody else?
All basics is covered i hope, as i mailed installations instructions, and the missing cable is also covered, the critical part missing is the pins that is inserted in to the connector, i believe it's this: http://www.tycoelectronics.com/catalog/ ... 63261&N=14
But i'm not certain, anybody else?
Tuesday
Veteran
Picked up the terminal ends at a specialty electronic store. They are female pins associated with the square 23 pin Amp connector.
And yes they where a pita to push into the connector.
Just rounding up the rest of the wiring harness and it will time to start logging.
And yes they where a pita to push into the connector.
Just rounding up the rest of the wiring harness and it will time to start logging.
catchmeifucan
Extreme
a bud picked up a used display box and is wondering which O2 sensor he needs for it? also needs info on wiring of display box to new gen 5 mcx box. tks in advance for any help.
