My Apex GT Projector Headlight Retrofit (HID enabled)

Snowmobileaddict

TY 4 Stroke Junkie
Joined
Feb 20, 2010
Messages
550
Location
Cedarburg, WI
JqOr5582ENK3HN9WpHXeI5-5lhsqWTcVVO-p6zma32Xr7QKtFDn58uwEJ_8prDs9wPyC1k2PA-ExS-LDxgUHTmbRTq5b3JlFyvrRhuG6956L9jlcg77L8Mx1BvTDD2xIne1w3KAL1SVzdO5uNBHqlSCL85PH6X7ZD2TTz7e_nN_KJlavwBn_QR-0tkwVpE5nhhRvQcT-l2gV7k_yvkPFyds_dmi90Ez5s_b2SetHOy_NMvW_kXLnZs285oGwcaUFCk62uhlOj4mKAx1qulYaJ1MZICgvDItC_qyYfzw4k6rSU2mpn1M0TISkR_W--OnDT1Su6ITmmp1CPO1gvgLLH_hevAXwxtczMSF4ODaaN_hX8mXy5669U9bB8isTedfDbyMRq35DaT0ouKSz-lGud4FIrrQS0DM09KU51KpMV5t5E2BBtG7b-jVS1A9ee9mnMAw4s3B7TOAKZGlIXT05ZQqv8t1LWPiFQXD0WdO5ntzGI8gLV6kRKBgJjiTyoshogW9w_DItLDimn0qhJVCejj4XBsq0gM0XZ4HFin23rIhVrf1HxRE4f4H8dZW20Gi8frAfJomkMo828MnBe8oBgEiTlZpQ8W3WSsI7Mqt3UxP9HPAcqwVP=w1023-h682-no






This is my 2.5" mini H1 projector retrofit mod on my 2006 yamaha apex gt. I chose to do this project because of the look that the projectors give the sled and because of the quality of the light output that that projectors provide with HID lights.


I already had a drop-in kit not unlike what is pictured below.


This project utilized my existing ballasts and hi/low relay harness. I added a mini H1 projector kit with Gatling Gun shrouds and 5000k pure white bulbs.

This projector kit calls for h1 type bulbs that I sourced for less than $10 for the pair. The projectors and shrouds were under $70. All project items were sourced from the ubiquitous online auction website that shall remain nameless. This project took about 4 hours start to finish and required the following:

Mini H1 projector and shroud kit
Bulbs for projectors
Existing ballasts
Existing relay harness to power up lights and actuate the high beams
Phillips screwdriver
Socket set
Flat head screw driver
Accurate oven
Pliers

As I said above, in addition to the bling factor I also wanted the wide angle of uniform light distribution and a seamless transition from low to high beams with no glare, hot spots, or dead space that HID bulbs can create when placed in a reflector housing designed for halogen equipment.

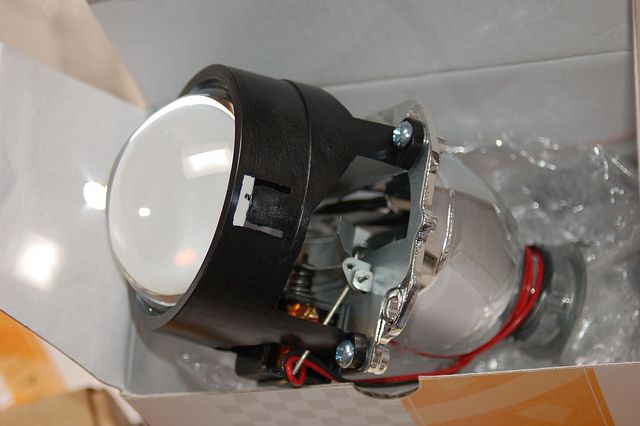

This is the projector kit I bought











The bulbs look like this


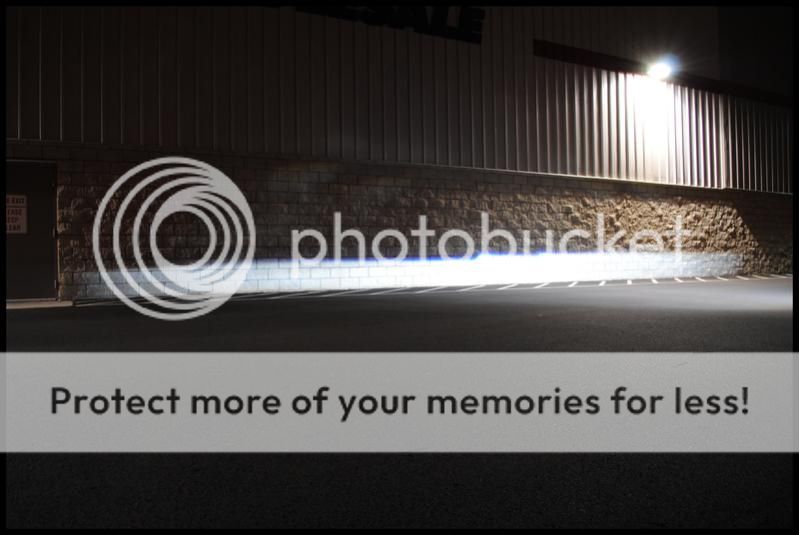

And this is the lighting pattern that mini H1 projectors create

@High Beam


@Low Beam


These projectors fit right into the reflector housing and are aimed up and down with stock adjuster bolt. The only trick is the stock housing needs to be opened up in order to fit them. That is where the oven comes in.

An accurate oven set to 260 degrees will soften the gooey butyl like glue so that it can be pried open with a flat blade screwdriver. Here is my stripped housing ready for the oven.



In the rack


Seven minutes is all it takes at 260 degrees


The heat does not harm the plastic housing. Here it is separated. You have to work fast and oven mitts or gloves are helpful.






The next step is installing the projectors. They fit into the stock hole with the kit-provided H4 adapter ring







I used the thin silicone washer on the threaded base and then tightened the projector down until it wouldn't move. The only mod you have to do to the kit is Dremel off a flat locking tang on the adapter ring. This needs to be done so each projector can be "clocked" to provide a horizontal cutoff. The stock yamaha headlight socket holds the stock bulbs at a slight angle. This has to be worked around otherwise you'll end up with crooked cutoffs.

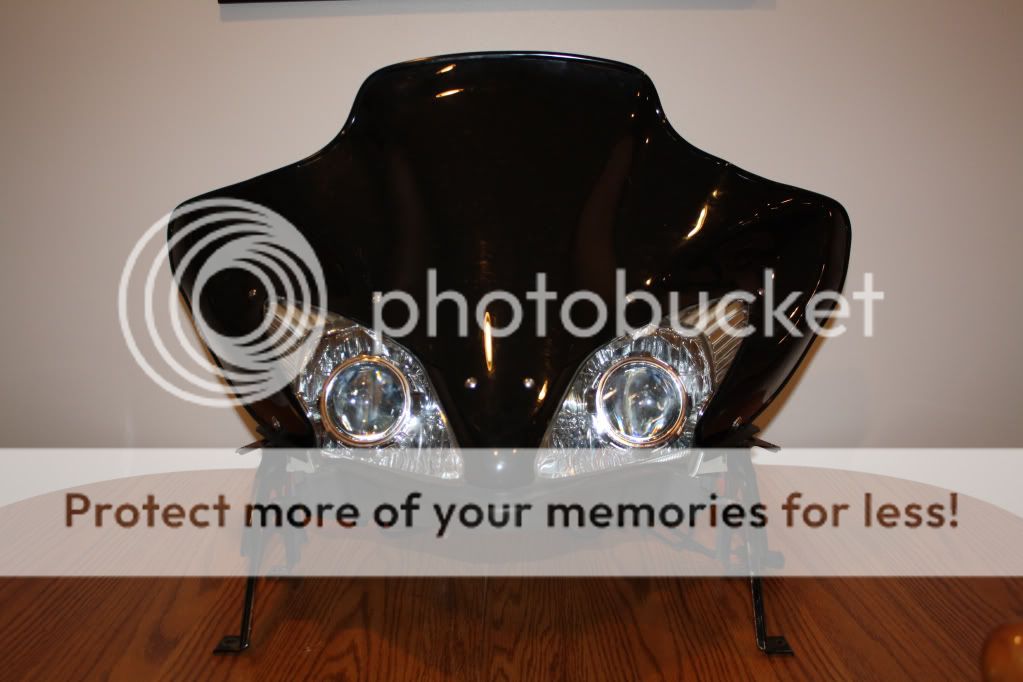

Here is picture of the projectors "clocked" to horizontal after I test lit them on my apex. You need to test light these on your sled before sealing the housing back up. You want to confirm horizontal cutoff alignment and that everything inside the housing is working.






You can see my sharpie alignment dots indicating the correct orientation vs the skewed alignment the stock housing would have provided.

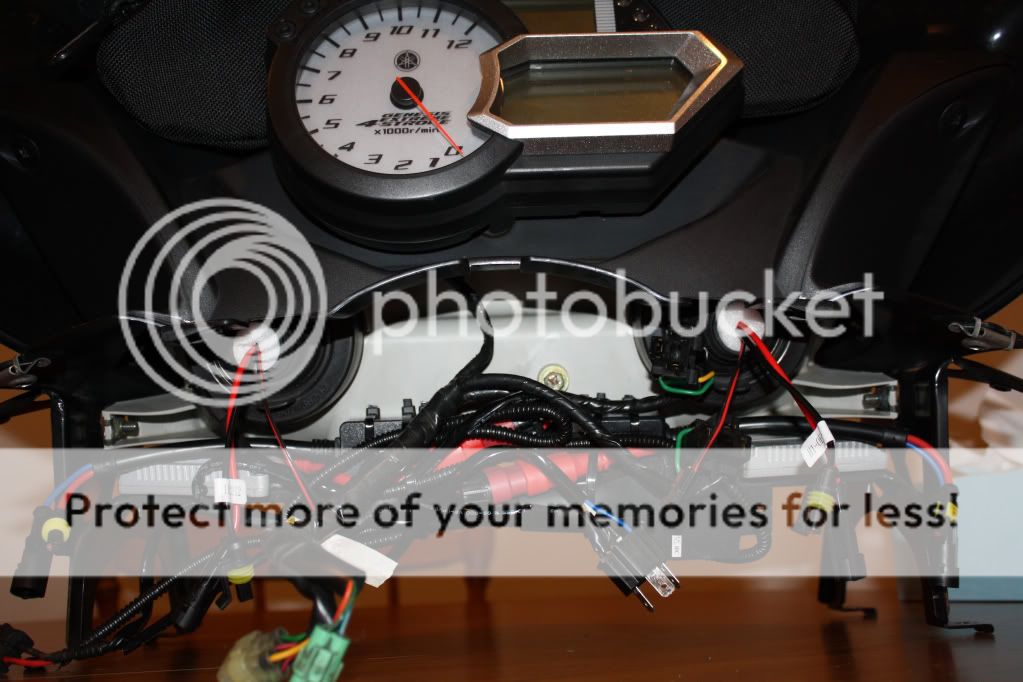

You can also see the light-gauge wires that power the shutter solenoid just like the old HID kit I had. These solenoid wires connect right up to my pre existing relay harness. At low beam a portion of the lens is covered. At high beam the shutter drops and allows light to shine up farther than low, no dead spots.

Next step is to drop it back in the oven to soften the glue and seal up the housing. Back in for 7 mins at 260 degrees. You remove the housing from the oven rack and use pliers to re-seat the housing and engage all the locking clips. It's very easy and again, the heat does to harm anything on the housing.

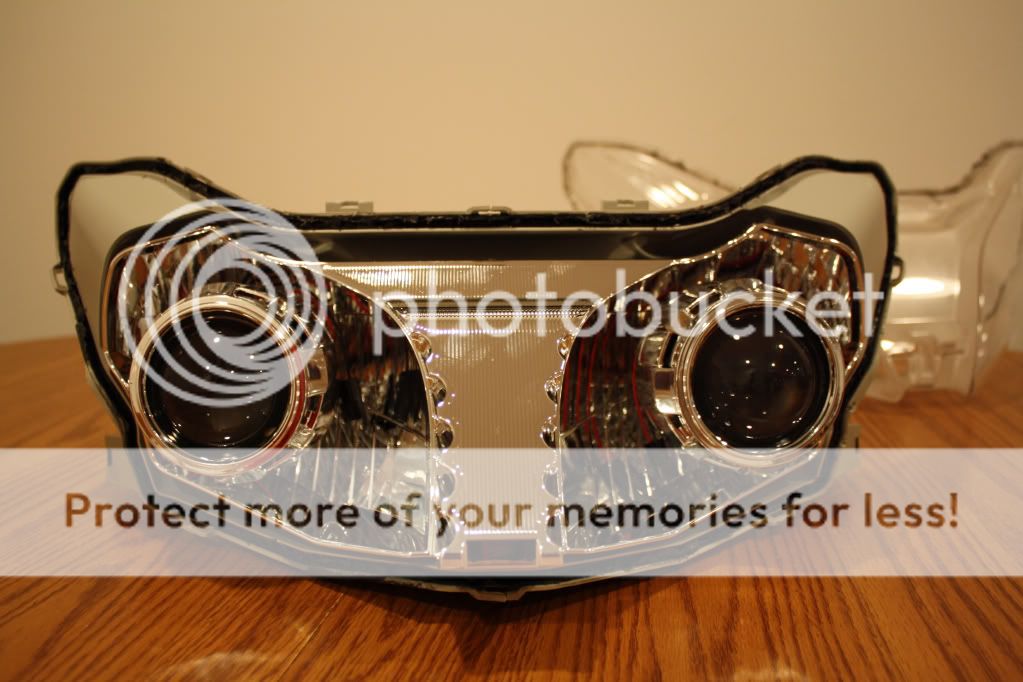

Here we are putting it back together






I used my stock rubber boots on the back of the headlight housing as shown in order to keep out moisture and dust. I just pulled the inner portion of the rubber boot outward so it sticks out instead of in and squeezed some poly styrene into the annular space between the rubber boot and the bulb wires. Use some tape as shown below to effectively seal this location as well. If you skip the tape, you may end up with fog finding its way intio the housing.

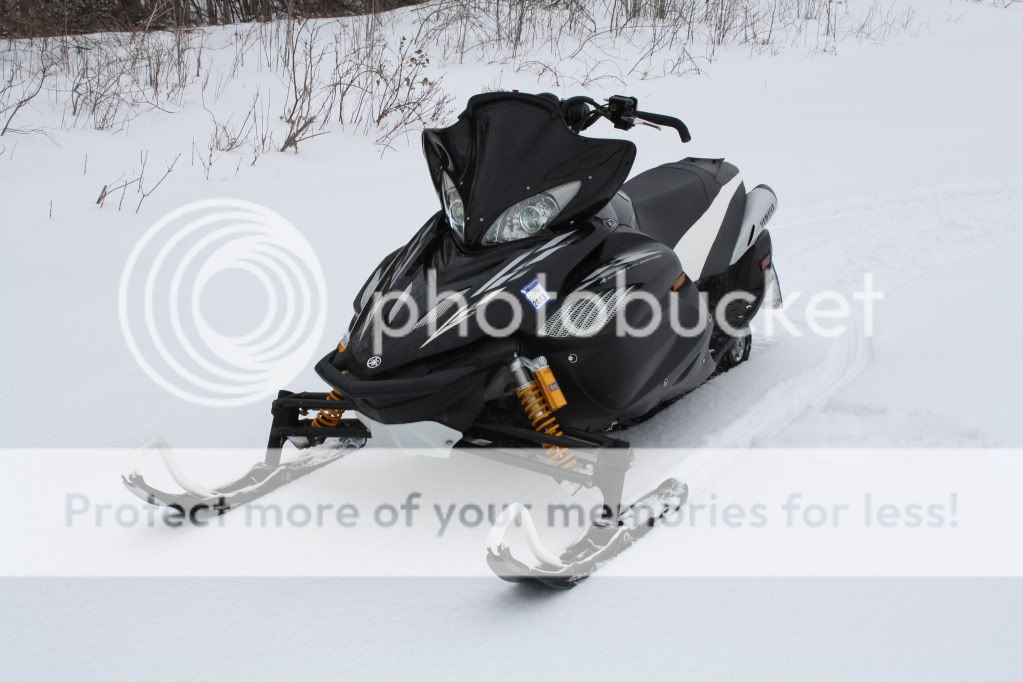

And back on my GT












Even though they look bluish, this temp is nearly pure white at night.

I'll post some nite time photos of the cutoff in the next couple days. Overall, I couldn't be happier with the form and function of this lighting modification.
