I will be installing my TD Stage 6/wastegate upgrade/header in the next couple weeks and figured I would take photos along the way and document as much of it as I can. I will be doing the install myself with some knowledgeable friends not far away if I need some assistance.

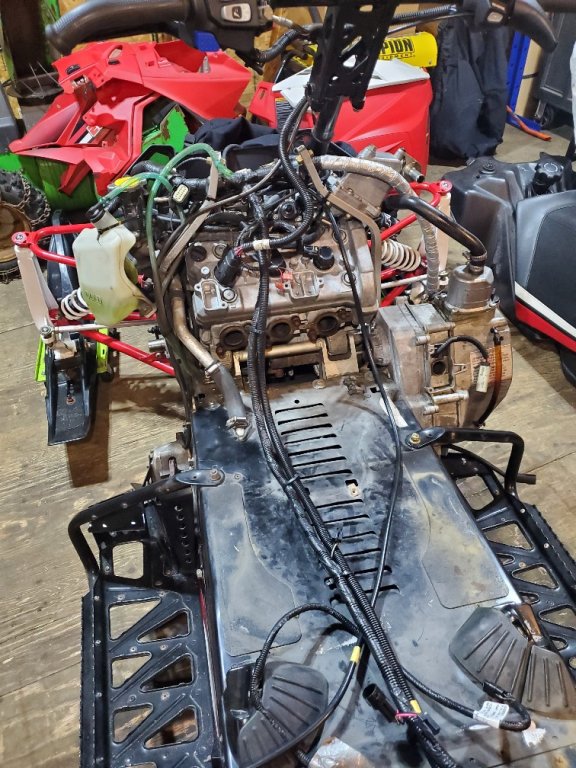

So far I've stripped the sled down to what you see in the pic. I'm waiting for a HD headgasket to arrive from TD before I open up the engine.
Stay tuned!
So far I've stripped the sled down to what you see in the pic. I'm waiting for a HD headgasket to arrive from TD before I open up the engine.
Stay tuned!
Turboflash
TY 4 Stroke God
- Joined
- Mar 18, 2019
- Messages
- 2,436
- Location
- Southern MN
- Country
- USA
- Snowmobile
- '17 ZR9000 Ltd. 137 - PEFI Stage 4
What is "HD" head gasket and why do you need to remove head? I've never heard of any head gasket other than stock Yamaha one. Are you installing head studs? You're in for a real treat removing head. The location of cam chain tensioner requires engine to lifted up in rear in order to access. Due care and attention required to ensure proper cam timing upon re-assembly. Also, if installing head studs, there should be one that is a little shorter than all the others. That one goes in upper far left corner hole as viewed from behind engine. Any of the others will be too long and hit the gear that drives the water pump off the balancer shaft. Have fun!I will be installing my TD Stage 6/wastegate upgrade/header in the next couple weeks and figured I would take photos along the way and document as much of it as I can. I will be doing the install myself with some knowledgeable friends not far away if I need some assistance.
So far I've stripped the sled down to what you see in the pic. I'm waiting for a HD headgasket to arrive from TD before I open up the engine.
Stay tuned!
View attachment 162519
DMCTurbo
VIP Member
- Joined
- Nov 12, 2005
- Messages
- 2,753
- Age
- 50
- Location
- Val Caron, Ontario
- Country
- Canada
- Snowmobile
- 2017 Sidewinder XTX LE 137
Yes I'm aware of everything you mentioned. Installing promod head gasket from TD, head studs, cams, high rpm valve springs and anti shim spitting buckets.What is "HD" head gasket and why do you need to remove head? I've never heard of any head gasket other than stock Yamaha one. Are you installing head studs? You're in for a real treat removing head. The location of cam chain tensioner requires engine to lifted up in rear in order to access. Due care and attention required to ensure proper cam timing upon re-assembly. Also, if installing head studs, there should be one that is a little shorter than all the others. That one goes in upper far left corner hole as viewed from behind engine. Any of the others will be too long and hit the gear that drives the water pump off the balancer shaft. Have fun!
Turboflash
TY 4 Stroke God
- Joined
- Mar 18, 2019
- Messages
- 2,436
- Location
- Southern MN
- Country
- USA
- Snowmobile
- '17 ZR9000 Ltd. 137 - PEFI Stage 4
Sounds great. All the right stuff for no problems. Nice build!
NYTurbo
TY 4 Stroke God
Cometic head gaskets are used by some. You install the one over the water pump at a specified height.What is "HD" head gasket and why do you need to remove head? I've never heard of any head gasket other than stock Yamaha one. Are you installing head studs? You're in for a real treat removing head. The location of cam chain tensioner requires engine to lifted up in rear in order to access. Due care and attention required to ensure proper cam timing upon re-assembly. Also, if installing head studs, there should be one that is a little shorter than all the others. That one goes in upper far left corner hole as viewed from behind engine. Any of the others will be too long and hit the gear that drives the water pump off the balancer shaft. Have fun!
DMCTurbo
VIP Member
- Joined
- Nov 12, 2005
- Messages
- 2,753
- Age
- 50
- Location
- Val Caron, Ontario
- Country
- Canada
- Snowmobile
- 2017 Sidewinder XTX LE 137
Do you know the specified height?Cometic head gaskets are used by some. You install the one over the water pump at a specified height.
DMCTurbo
VIP Member
- Joined
- Nov 12, 2005
- Messages
- 2,753
- Age
- 50
- Location
- Val Caron, Ontario
- Country
- Canada
- Snowmobile
- 2017 Sidewinder XTX LE 137
Wastegate installed and crack pressure set at 9 psi as per TD. The compressor outlet restrictor drilled out to the ID of the nipple and the small fitting blocked off.
Everything now removed and out of the way for the head removal.
Everything now removed and out of the way for the head removal.
DMCTurbo
VIP Member
- Joined
- Nov 12, 2005
- Messages
- 2,753
- Age
- 50
- Location
- Val Caron, Ontario
- Country
- Canada
- Snowmobile
- 2017 Sidewinder XTX LE 137
83-84 mm as per TDDo you know the specified height?
Kenzie
Pro
- Joined
- Feb 27, 2015
- Messages
- 125
- Age
- 34
- Location
- Ontario
- Country
- Canada
- Snowmobile
- Viper ltx se 137 turbo
Is this staying a trail sled or running pro mod?
max rolph
Expert
- Joined
- Feb 10, 2021
- Messages
- 446
- Age
- 60
- Location
- horse shoe valley
- Country
- Canada
- Snowmobile
- 998 turbo
same build as i just did exactly from Turbo Dynamics, we might be doing the turbo rotor next, Ben is doing some testing now. make sure you order all new hose clamps, most of them tend to strip and for cheap insurance you might as well have new ones ready. the real bitch is when refilling antifreeze and making sure all air is out of system, i bought the vacuum style rfill kit off amazon and it sucks the antifreeze through entire system getting rid of any air.
NYTurbo
TY 4 Stroke God
Push thermostat open with a screw driver makes life easy , then bleed on the coolant tank that feeds the turbo.
DMCTurbo
VIP Member
- Joined
- Nov 12, 2005
- Messages
- 2,753
- Age
- 50
- Location
- Val Caron, Ontario
- Country
- Canada
- Snowmobile
- 2017 Sidewinder XTX LE 137
Trail sled/radar runnerIs this staying a trail sled or running pro mod?
DMCTurbo
VIP Member
- Joined
- Nov 12, 2005
- Messages
- 2,753
- Age
- 50
- Location
- Val Caron, Ontario
- Country
- Canada
- Snowmobile
- 2017 Sidewinder XTX LE 137
Making progress today. I had one head bolt that broke 4 sockets. Finally got it out! New valve springs installed, anti-shim spitting buckets and retainers installed. Time to clean the gasket surfaces and get the head studs installed.
Todd Beenen
Expert
What kind of hp that going to make?
DMCTurbo
VIP Member
- Joined
- Nov 12, 2005
- Messages
- 2,753
- Age
- 50
- Location
- Val Caron, Ontario
- Country
- Canada
- Snowmobile
- 2017 Sidewinder XTX LE 137
What kind of hp that going to make?
