2006 Apex summper project finished!!!! Pictures

[rangermike14]

Hey guys, I picked up a 2006 Apex ER at the end of last season from the dealer for cheap and have totally gone through the sled. I picked it up for cheap right after they got it on trade knowing it needed some work. It looked like it had been trailered on an open trailer and the front A-arms were rusty and chipped up, hood was chipped up, front bushings shot, track shot, shocks shot...you get the point! Anyway I always wanted an Attak so I thought since I stole the sled I would have my way with this one and make it exactly how I want it! The sled had just under 5,000 miles. After much time and many beers I am done. I had tons of help from different people for parts and what not. A big thanks to Travis from Barn of parts, Pete Amato(both members of this site) for powder coating and many other people. I will list the stuff I've done to it and then post the pics. I can't wait to ride! LET IT SNOW!!!! Any questions fire away!!!! I have tons of pictures if anyone wants pictures of anything.

Sand blasted and new powder coat on the A-arms
Pioneer Performance A-arm bushing kit including bulkhead bushings
wide version of the dual tuner skis
2010 hood
2010 windshield
2010 blue exhaust covers( Ordered black Yamaha stickers and removed the Vector ones that were on them)
big black side plastics
left side ski spindle/mount
blue skid plate
oil change with Amsoil
spark plugs
Yamaha belt
Apex mountain riser(2 1/4" taller)
handlebar cover that has the Yamaha logo
Hartman 136" extension which included the tunnel extension and skid extensions
136" Camoplast 1.5" Intense track
removed tunnel protectors
23 tooth top gear in chaincase
Mobil 1 synthetic in the chaincase
driveshaft bearings

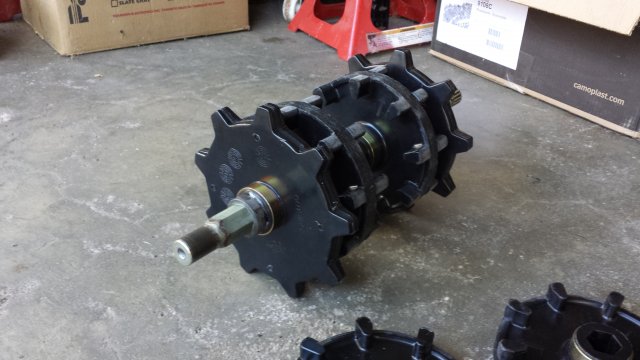

antiratchet drivers
2 Yamaha rear big bogey wheels(old ones were Polaris and the wrong color blue)
2 Yamaha small bogey wheels
bearings in 4 bogey wheels
sandblasted and powder coated skid arms(Black)
Pioneer Performance skid bushing kit
hyfax
pioneer performance bogey wheel lowering kit
cable for rear shock adjuster(was broke)

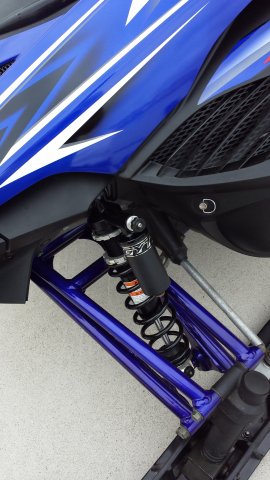

GYTR front shocks and had them rebuild
re valve and big boy spring for the skid shock
Yamaha snow flap
Custom seat made by local guy with added height(harder foam) and gripper top
plasti dipped the stock grey hood grills
Yamaha nose bag under the hood
Yamaha windshear handguards
billet Yamaha gas cap

I am sure I have missed some stuff but this is what I can think of.

These are the day I picked the sled up

These are today!!!!



[rangermike14]



[rangermike14]

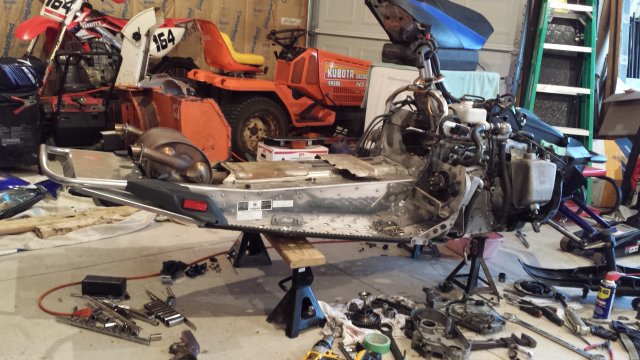

Here's what it looked like a week or two ago!!!!



[rangermike14]



[slowride06er]

Nice job think snow



[rangermike14]

Thanks slowrider. Snow can't come fast enough!



[VX1R]

Awesome job Mike. You took your time and did it up right. Very nice attention to detail.



[rangermike14]

Thanks!!



[thor452]

that sled looks brand new wow great job on the rebuild.



[snobill]

Looks great!



[TOMBOB]

Great job Mike you hit a home run with this sled.



[rangermike14]

Thanks guys.



[thor452]

what did you use to polish the tunnel?



[rangermike14]

Thanks Tom! I used Mothers mag and aluminum polish. Always works well for me.



[BigDogrx1]

Looks super-good job.
