New for 2012-13 all FFS ROV kits with OEM Cat tether switch!

[Mtnviper]

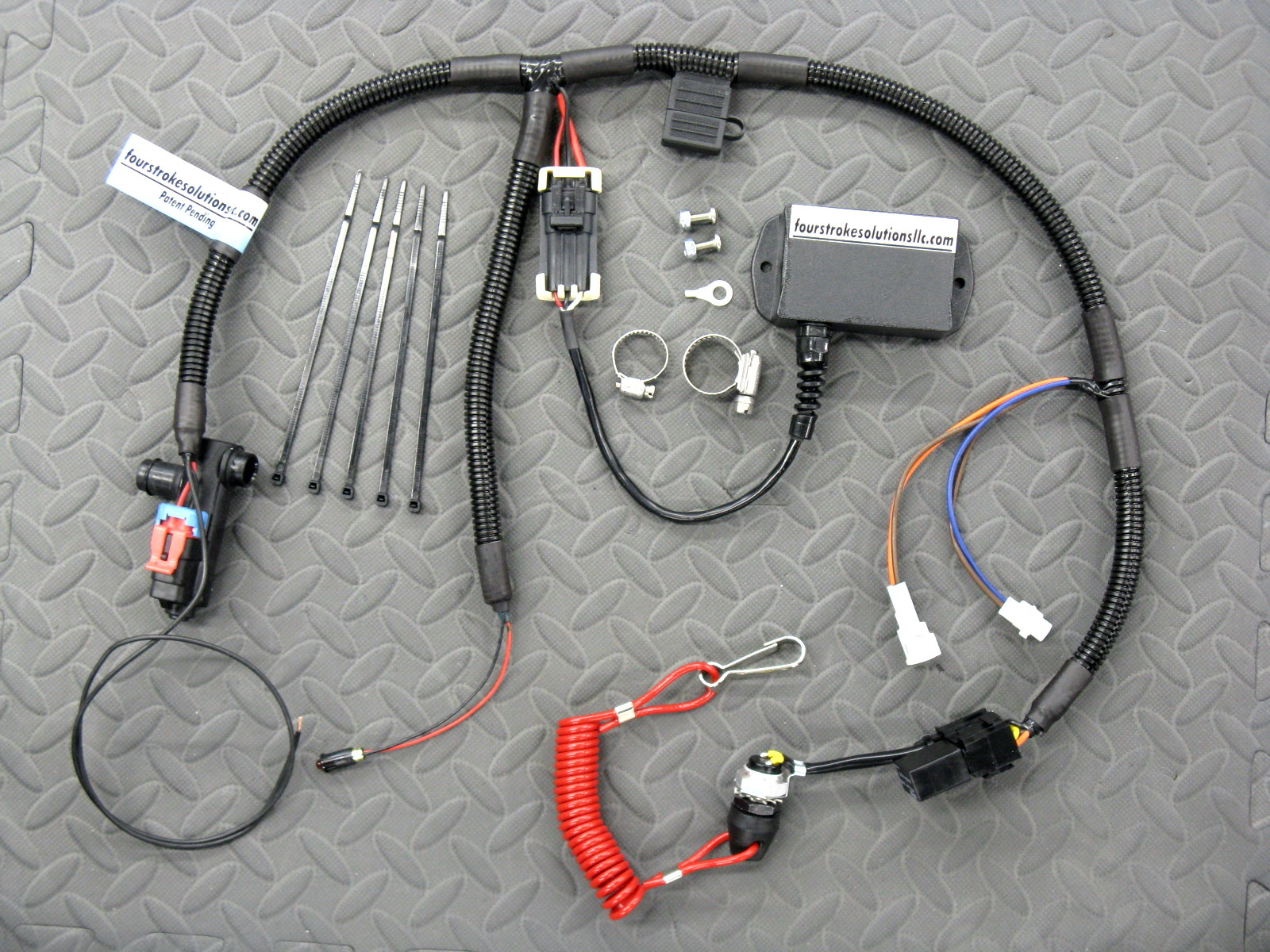

I decided to expand the use of genuine OEM Arctic Cat tether switches used in our M1100T ROV kits to our Yamaha line-up as well!
The OEM Cat tether has an inner seal to help keep out moisture while the tether cord is pulled. Additionally the Cat switch uses a brass plunger rod for a more robust construction. Compared to aftermarket rubber plug type switches which do not have the extra seal and use a plastic plunger rod.

Just like our previous ROV kits, the Cat tethered kit is aviliable with or without the High Performance Electronic Roll-Over Valve Control Module or ROVCM. http://fourstrokesolutionsllc.webs.com/ ... erovcm.htm

US patent #8,225,766 with other patents pending.
http://fourstrokesolutionsllc.webs.com/ ... 225766.htm
Bill



[arteeex]

Maybe you'll want a mount for that tether too?



[Mtnviper]

That looks pretty cool



[yammi4ever]

can the cat tether be put on the older kits plug and play and work in the same size hole that it uses? If so, love to have a price on it.

Thanks



[Mtnviper]

can the cat tether be put on the older kits plug and play and work in the same size hole that it uses? If so, love to have a price on it.

Thanks

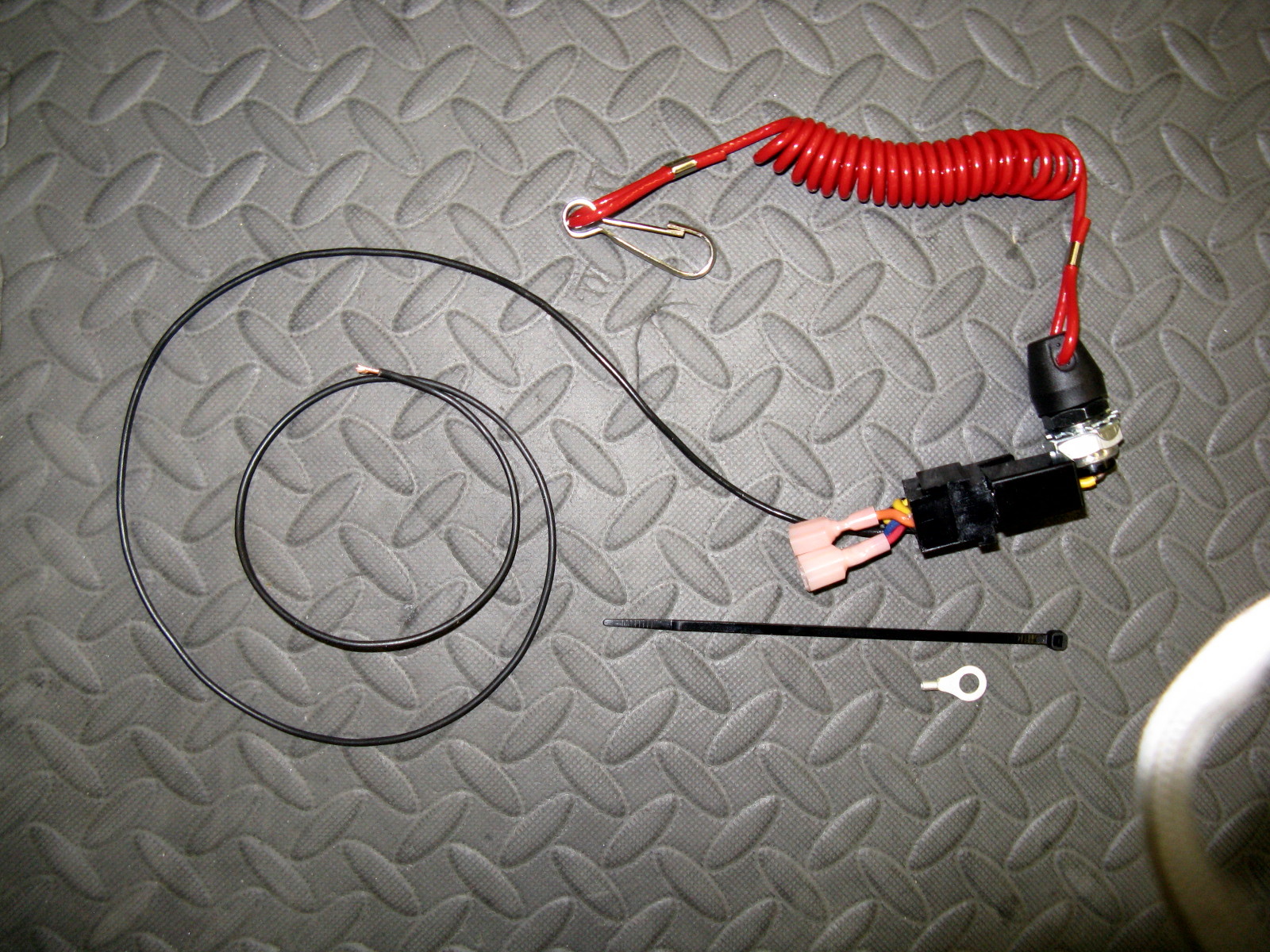

I have had a few guys ask about a conversion for the earlier kits. The Cat tether requires a 5 terminal switching relay in the circuit and I have been making a conversion kit. The conversion kit includes the OEM Cat switch and lanyard, switching relay and a stub harness. The Cat tether conversion kit comes fully assembled and plugs directly into the earlier style ROV harness.
Even though the Cat tether only requires a 1/2" it will fit the larger 5/8" hole and tighten down no problem
Price for the complete switch/relay assembly is $57 plus shipping.

Bill



[yamahas]

Hey Bill, will the hole I drilled for the original tether still be usable? or is this one a different size?



[Mtnviper]

Hey Bill, will the hole I drilled for the original tether still be usable? or is this one a different size?

Yes you can re-use it no problem. The original hole is slightly larger, but the black nut that screws down on top will cover it nicely

Also because the Cat switch has a very low profile underneeth the cowling, there will be more clearance to work with than before.

Bill



[yamahas]

Great! I just wanted to make sure I did not need a smaller hole!

Thanks



[Mtnviper]

I updated the first post. Roll-Over Valve Kits are officially a patented item
US Patent #8,225,766 with other patents pending.

Bill
