I put together a list of all the torque specs I could find. I hope this helps anyone reassembling their phazers quickly find a torque on any bolts they come across (that needs to be torqued)
Here are the over view sheets:

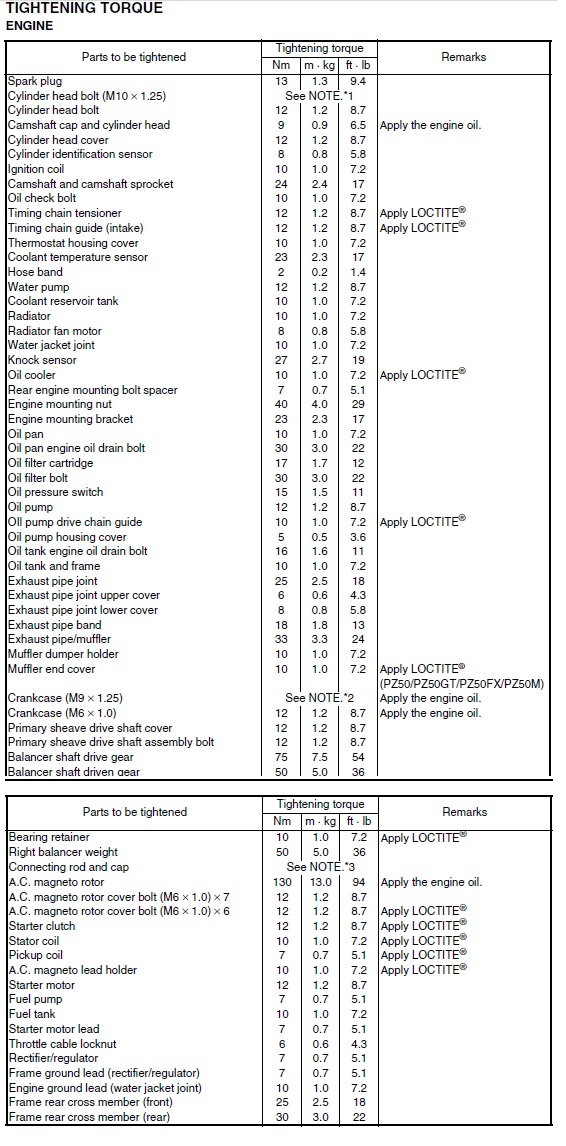

Engine Tightening Torques
Power Train Tightening Torques
Chassis Tightening Torques
Detailed images:
Chassis:

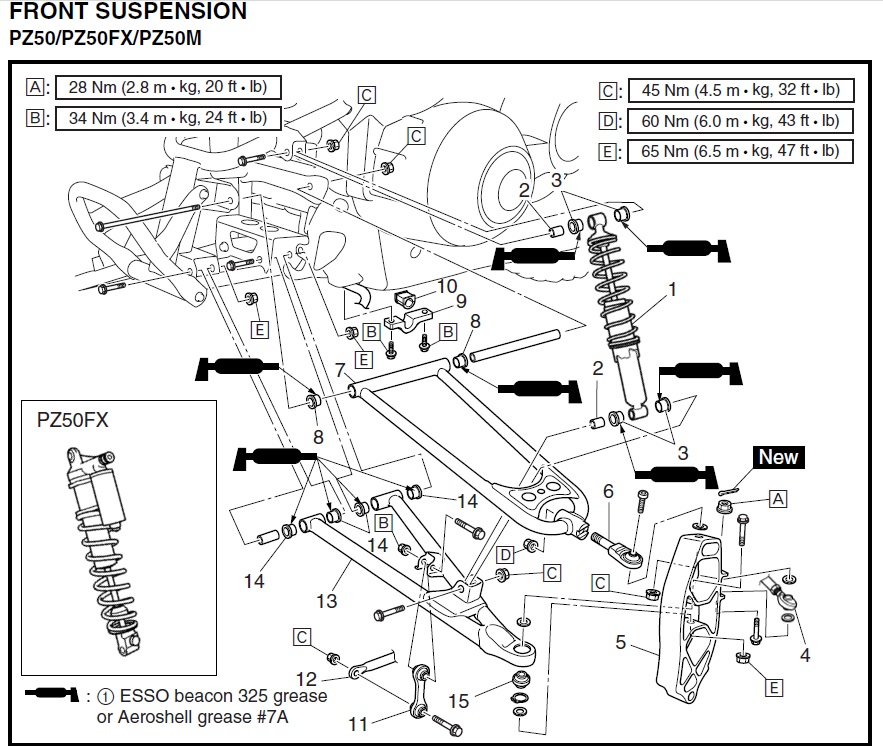

Front Suspension (PZ50/PZ50FX/PZ50M)

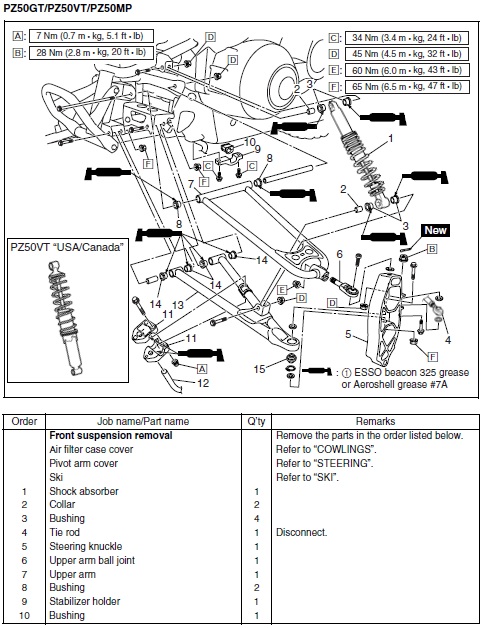

Front Suspension (PZ50GT/PZ50VT/PZ50MP)

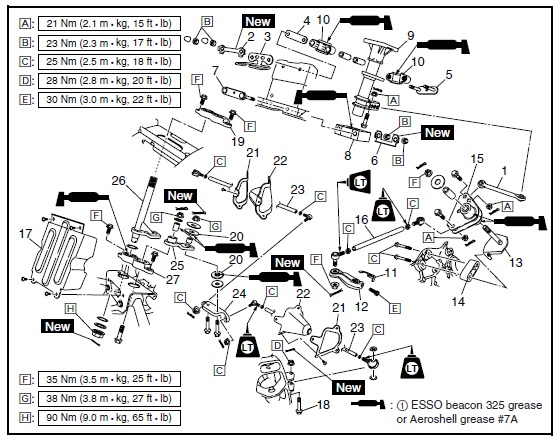

Steering (All the steering links)
Steering (PZ50/PZ50GT/PZ50FX/PZ50M)

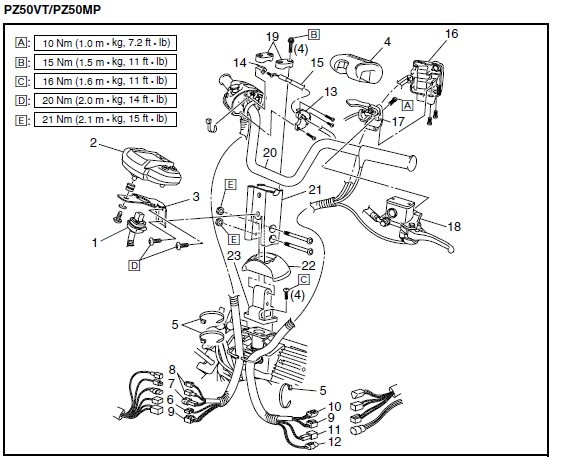

Steering (PZ50VT/PZ50MP)

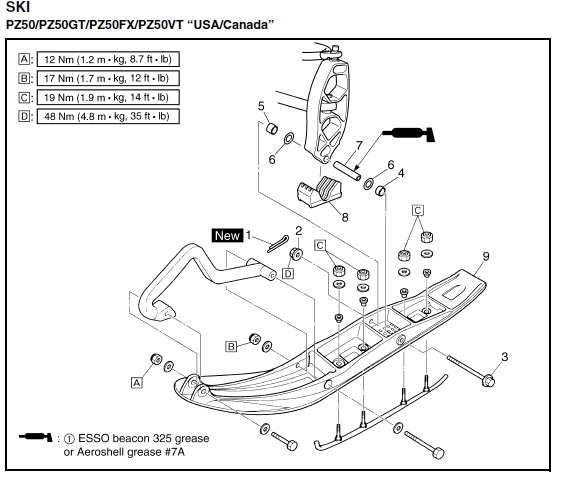

Ski (PZ50/PZ50GT/PZ50FX/PZ50VT Canada/USA)
Power Train:
Primary Sheave Bolt

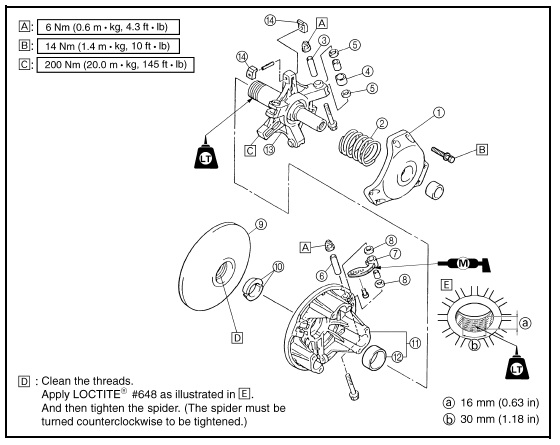

Primary Sheave – Exploded
Secondary Sheave Bolt

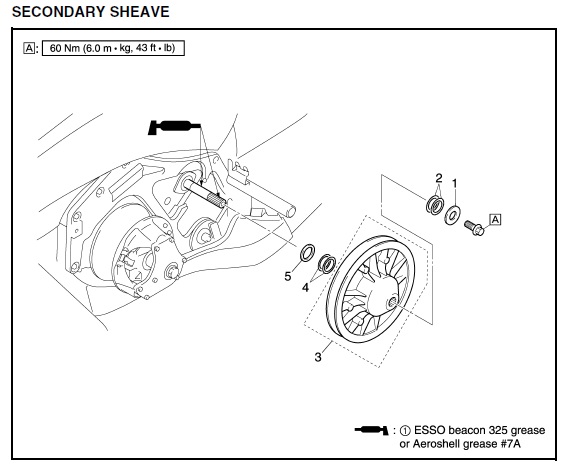

Secondary Sheave - Exploded

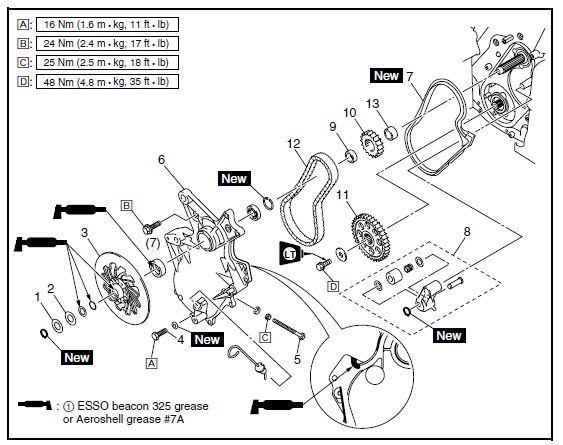

Drive Train

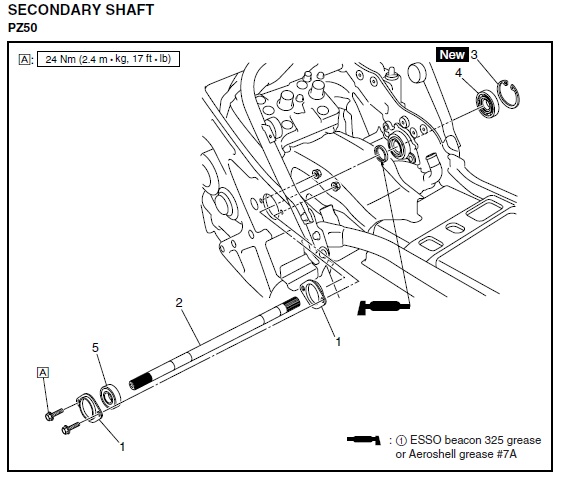

Secondary Shaft

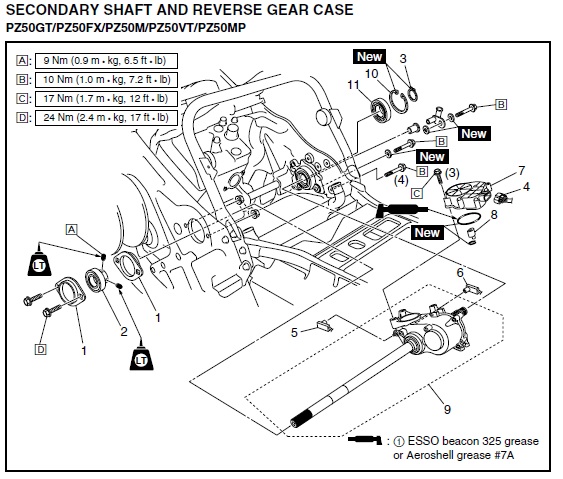

Secondary Shaft and Reverse Gear Case (PZ50GT/PZ50FX/PZ50M/PZ50VT/PZ50MP)
Brake

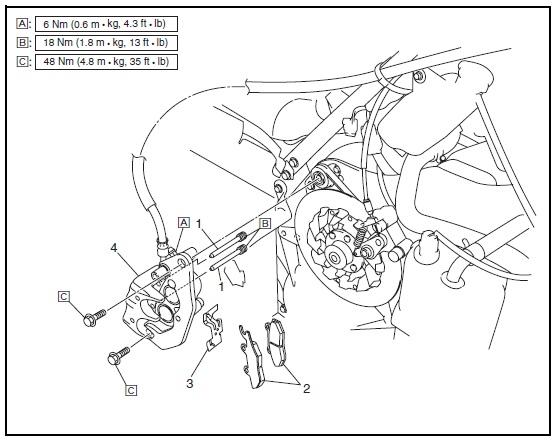

Brake Caliper and Parking Brake
Brake Handle

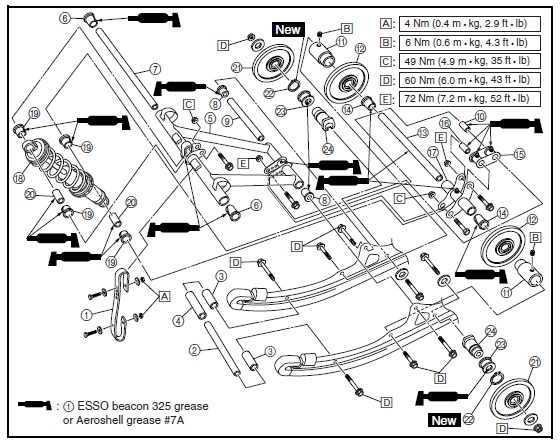

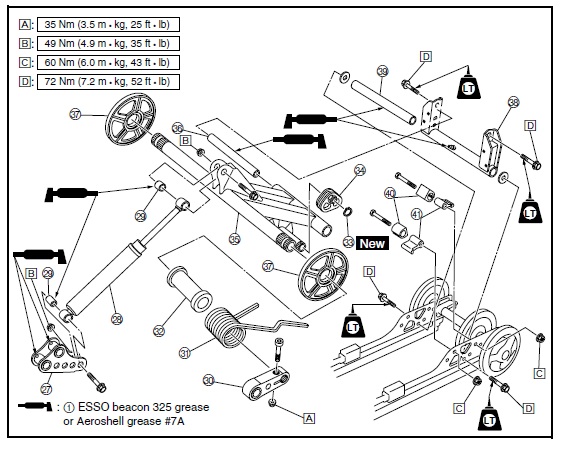

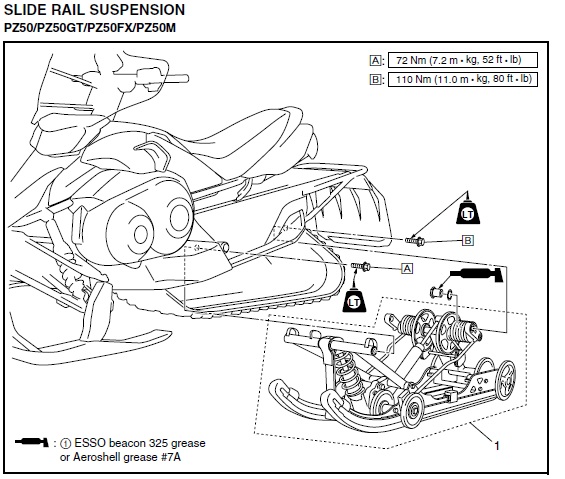

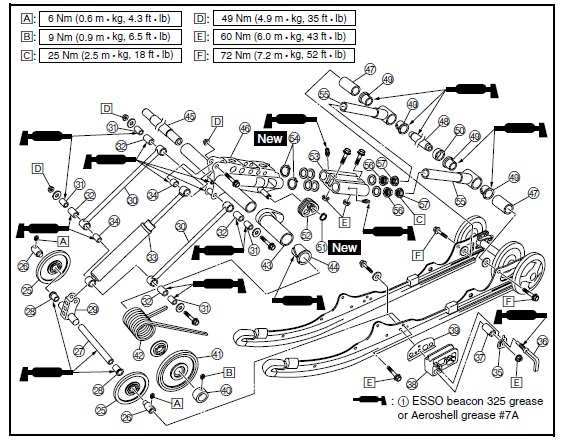

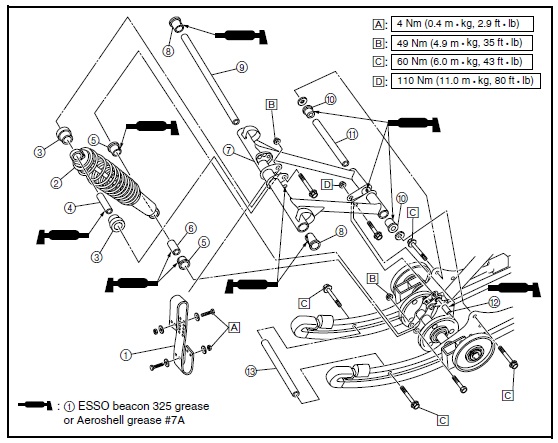

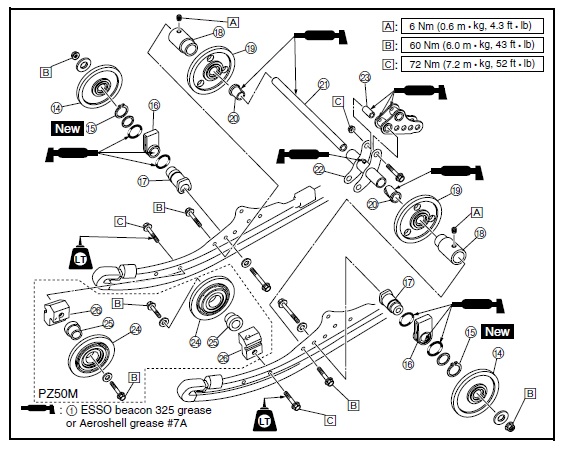

Slide Rail Suspension PZ50/PZ50GT/PZ50FX/PZ50M

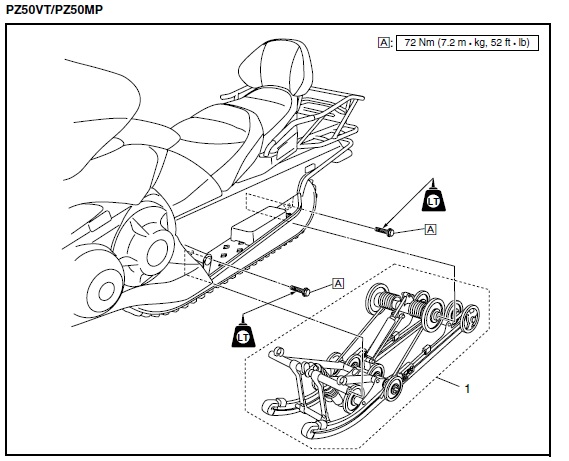

Slide Rail Suspension PZ50VT/PZ50MP

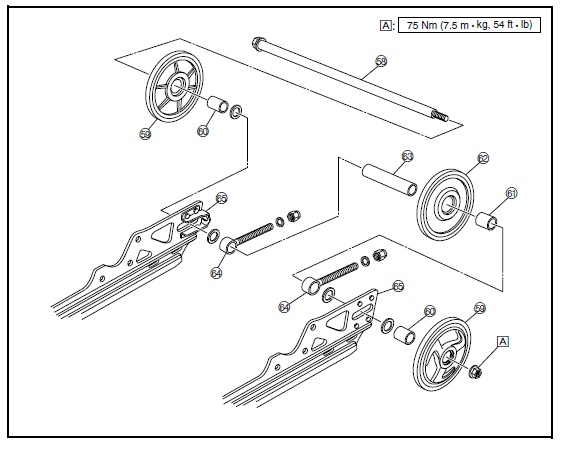

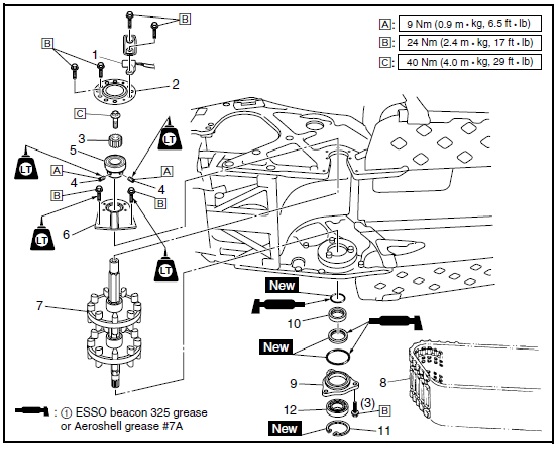

Drive Axle and Track
Engine:

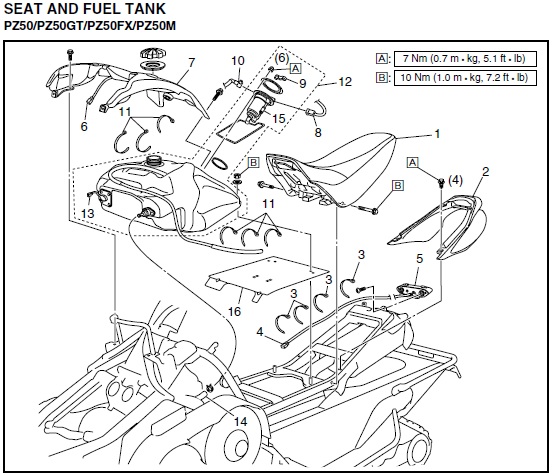

Seat and Fuel Tank (PZ50/PZ50GT/PZ50FX/PZ50M

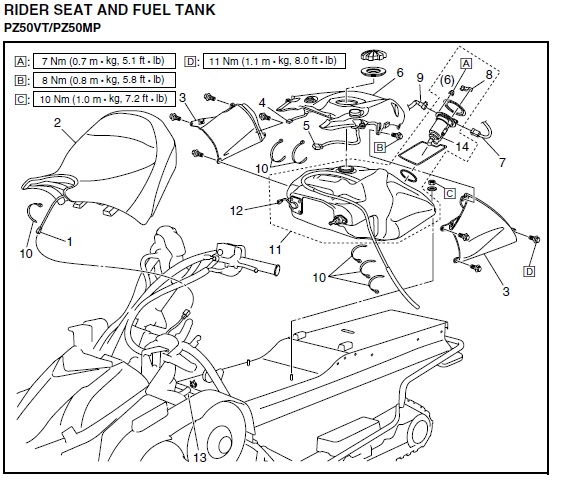

Seat and Fuel Tank (PX50VT/PZ50MP)

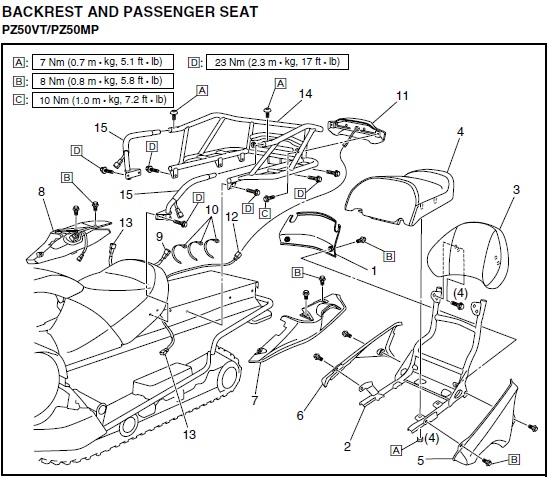

Backrest and Passenger Seat (PZ50VT/PZ50MP)

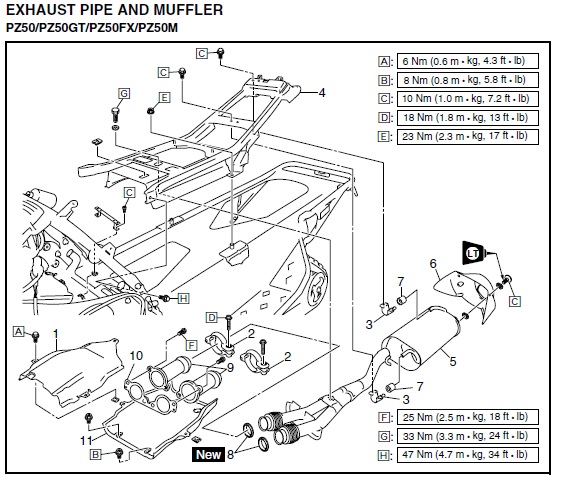

Exhaust Pipe and Muffler (PZ50/PZ50GT/PZ50FX/PH50M)

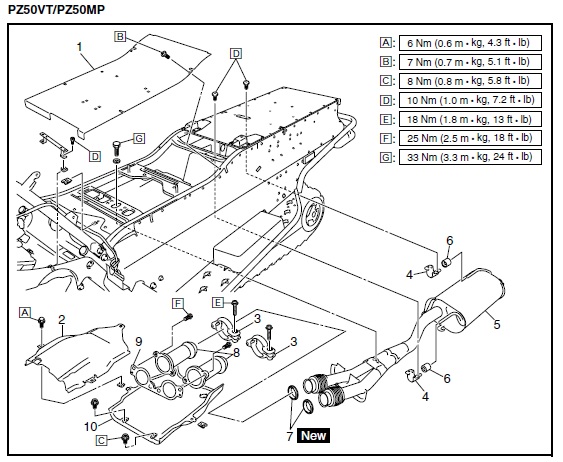

Exhaust Pipe and Muffler (PZ50VT/PZ50MP)

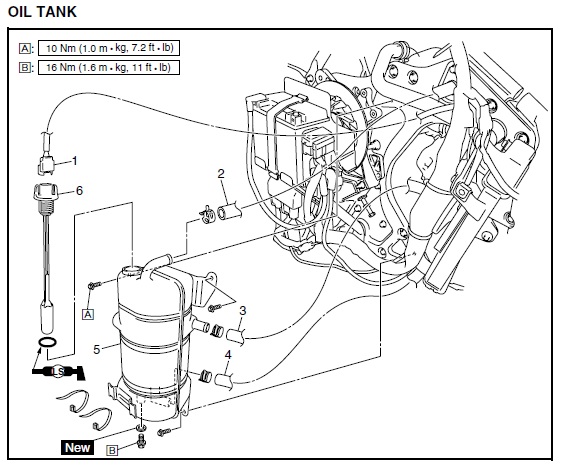

Oil Tank

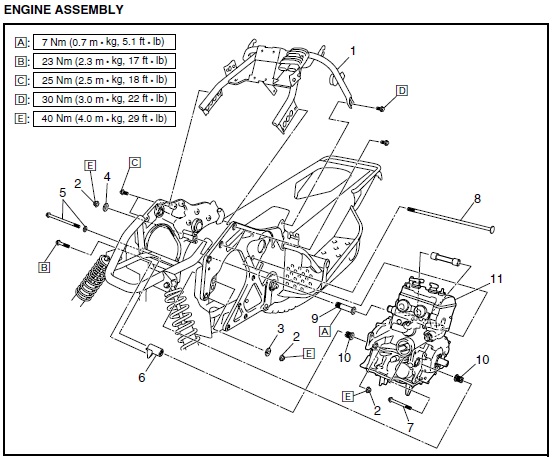

Engine Assembly

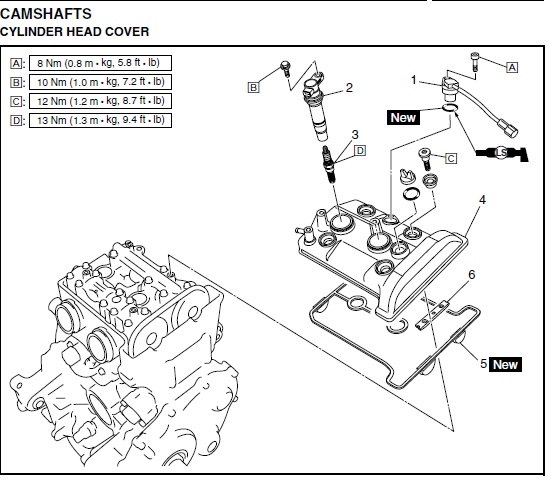

Cylinder Head Cover

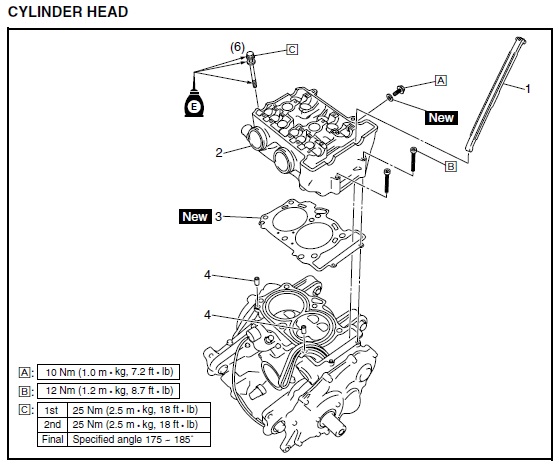

Cylinder Head

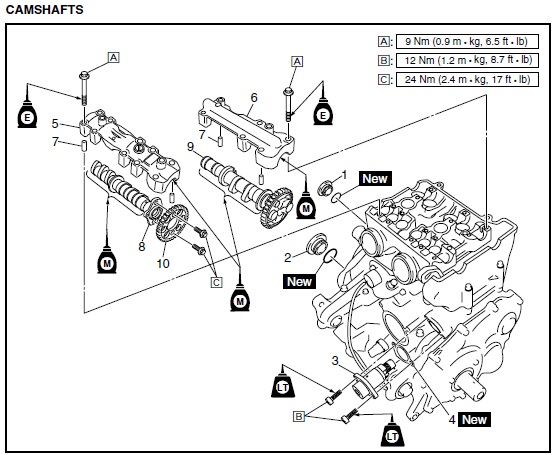

Camshafts

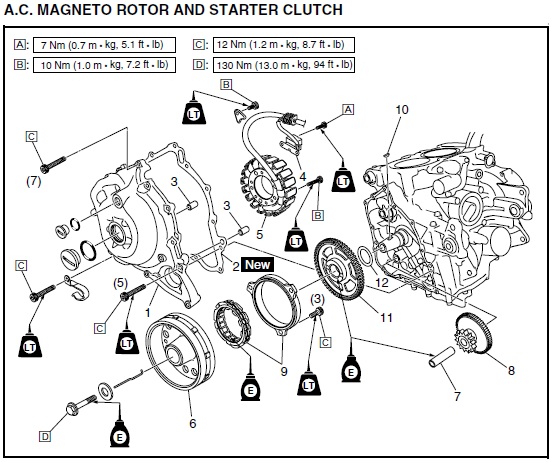

Magneto and Starter Clutch

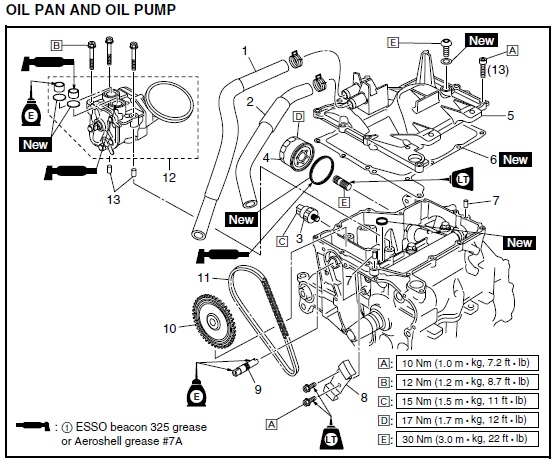

Oil Pan and Oil Pump

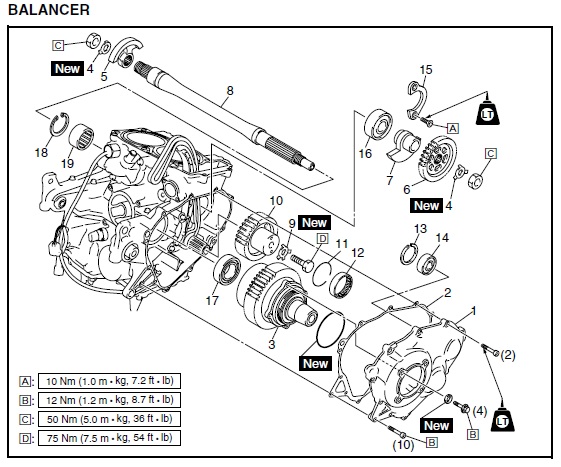

Balancer

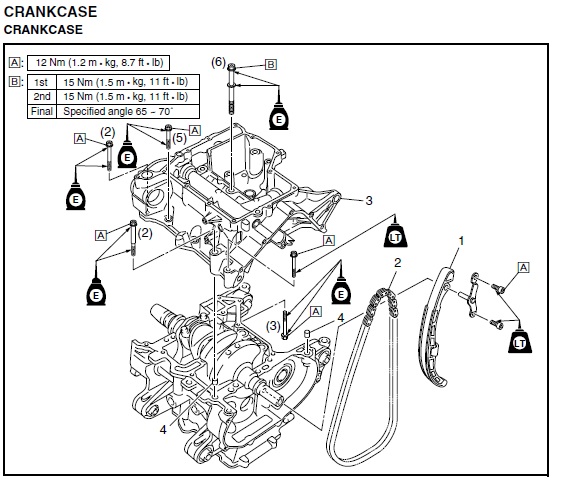

Crankcase

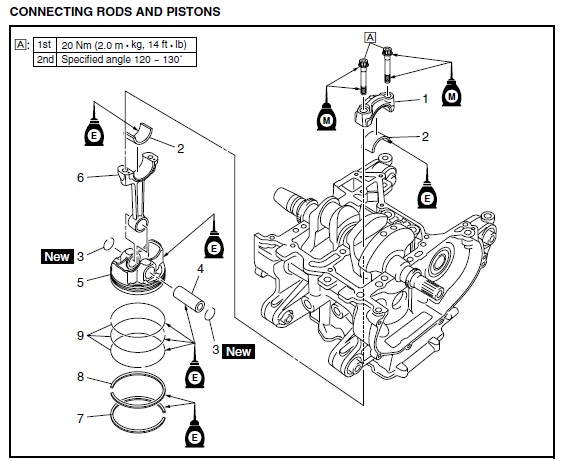

Connecting Rods and Pistons
Cooling System:

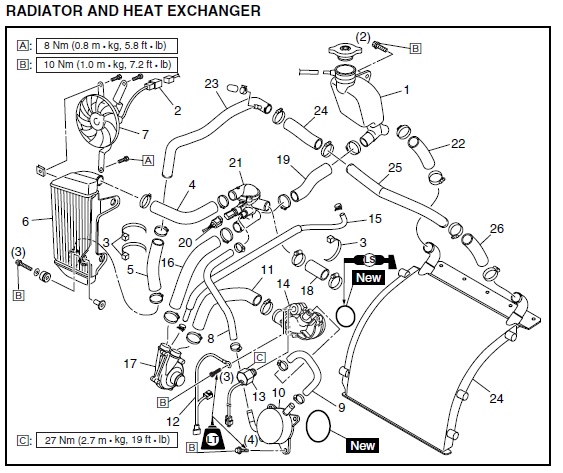

Radiator and Heat Exchanger

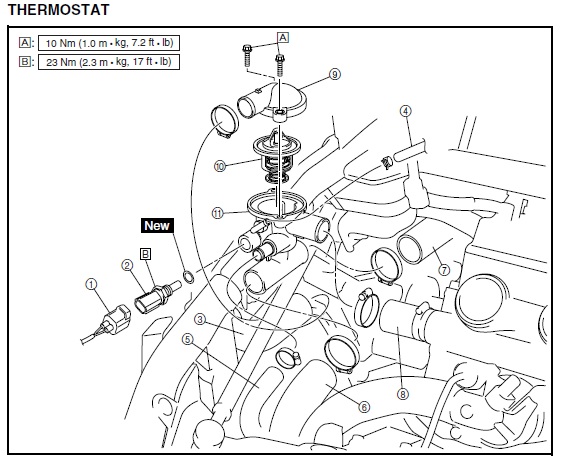

Thermostat

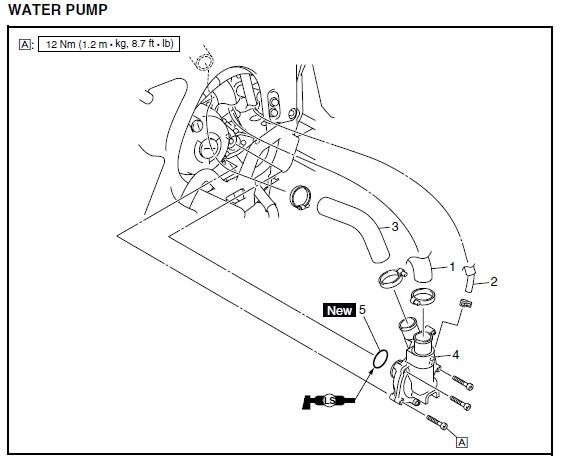

Water Pump
Electrical:

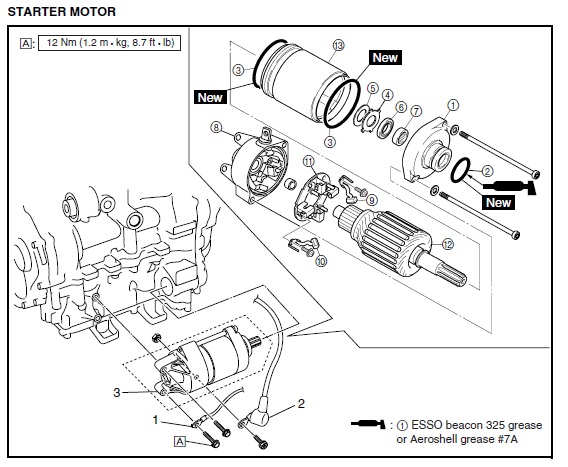

Starter Motor
If I have missed anything please let me know.
Here are the over view sheets:
Engine Tightening Torques
Power Train Tightening Torques
Chassis Tightening Torques
Detailed images:
Chassis:
Front Suspension (PZ50/PZ50FX/PZ50M)
Front Suspension (PZ50GT/PZ50VT/PZ50MP)
Steering (All the steering links)

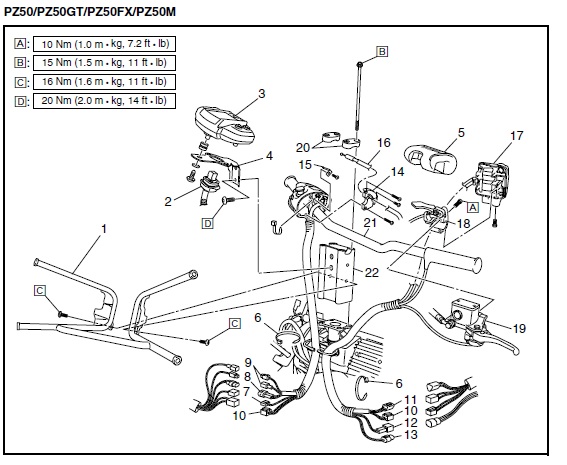

Steering (PZ50/PZ50GT/PZ50FX/PZ50M)
Steering (PZ50VT/PZ50MP)
Ski (PZ50/PZ50GT/PZ50FX/PZ50VT Canada/USA)
Power Train:
Primary Sheave Bolt

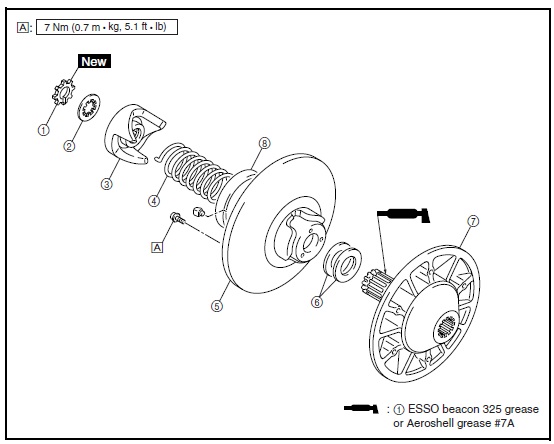

Primary Sheave – Exploded
Secondary Sheave Bolt
Secondary Sheave - Exploded
Drive Train
Secondary Shaft
Secondary Shaft and Reverse Gear Case (PZ50GT/PZ50FX/PZ50M/PZ50VT/PZ50MP)
Brake
Brake Caliper and Parking Brake

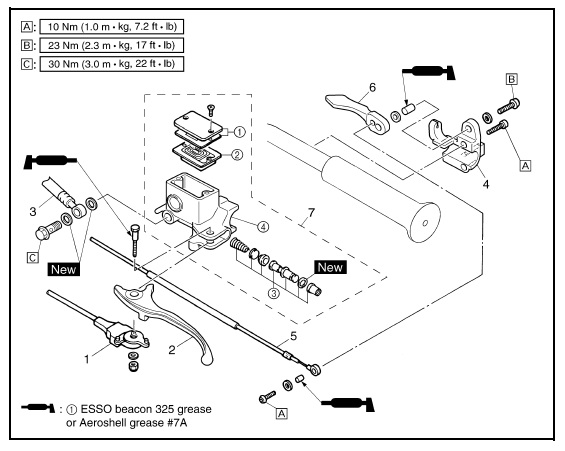

Brake Handle

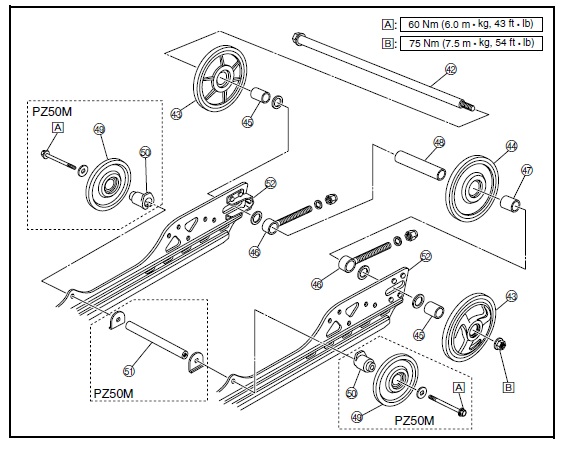

Slide Rail Suspension PZ50/PZ50GT/PZ50FX/PZ50M
