Did some updates to my YXZ!!

[MrSled]

First and foremost I wanted to clean up the wiring mess by the battery. I added some distributions posts, 2nd battery and a DLP alternator kit.

I was tired of the scratches in the plastic windshield so I added a Bent Metal windshield and a rear wiper from a 2005 Ford Escape.

Also added dual vent to the roof for more ventilation or exhaust depending how you rock them.

Removed my small LED light bar and added a 40” curved light bar.

Also End of last year I added a Full Graves Exhaust and Flash.



[1nc 2000]

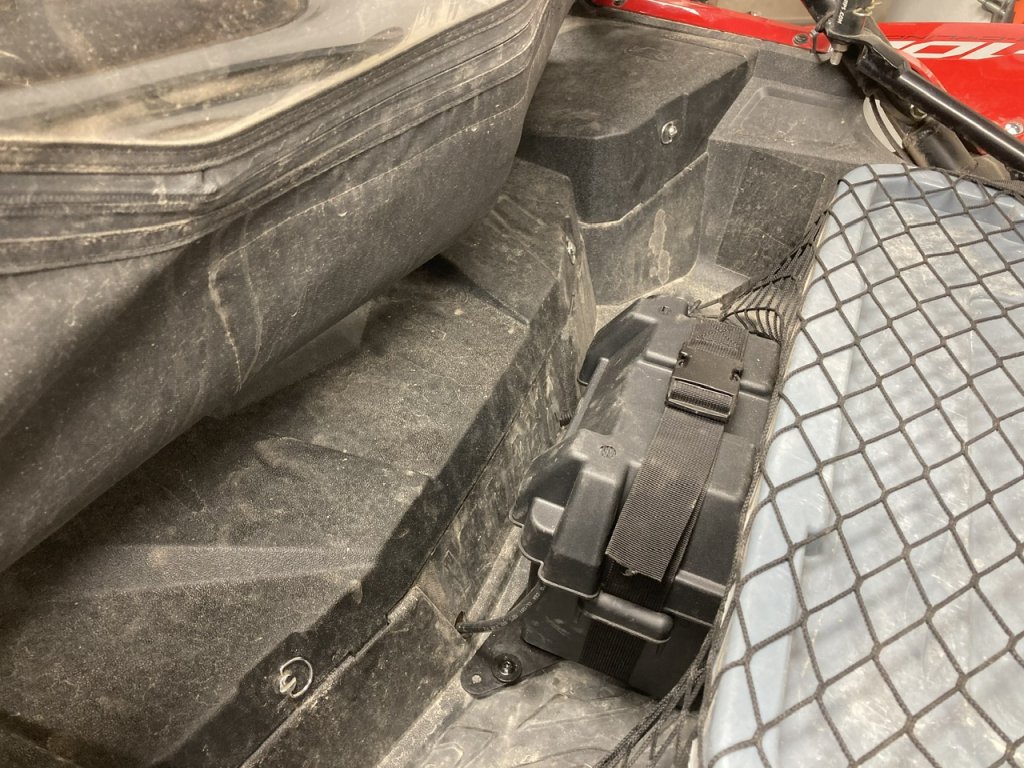

First and foremost I wanted to clean up the wiring mess by the battery. I added some distributions posts, 2nd battery and a DLP alternator kit.

View attachment 172709
View attachment 172710
View attachment 172717
View attachment 172713
View attachment 172711
View attachment 172714View attachment 172718
View attachment 172719

I was tired of the scratches in the plastic windshield so I added a Bent Metal windshield and a rear wiper from a 2005 Ford Escape.

View attachment 172726View attachment 172712

Also added dual vent to the roof for more ventilation or exhaust depending how you rock them.

View attachment 172720
View attachment 172721
View attachment 172722

Removed my small LED light bar and added a 40” curved light bar.
View attachment 172723

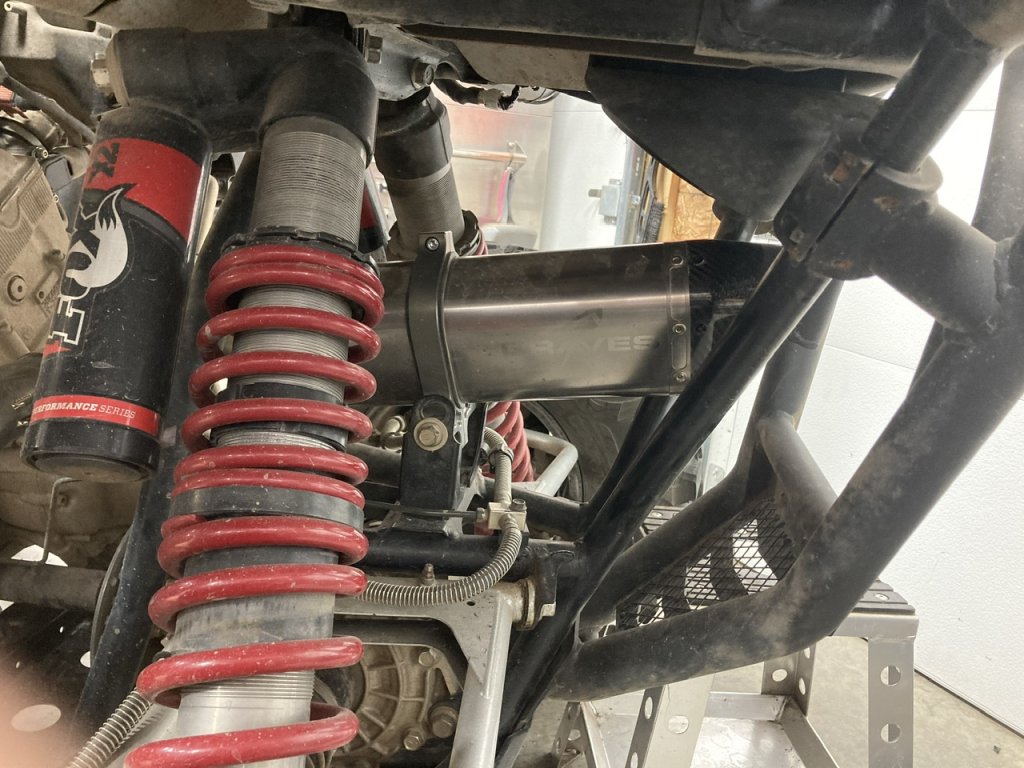

Also End of last year I added a Full Graves Exhaust and Flash.

View attachment 172724
View attachment 172725

How did the roof vents work out?
Looking at adding some to my yxz.



[MrSled]

How did the roof vents work out?
Looking at adding some to my yxz.

They pull in some but not as much as I hoped. I think my light bar is is blocking the air that could be rammed in.



[1nc 2000]

I have a flat roof and was concerned that the air off the windshield would go over the top of the vent.



[MrSled]

I have a flat roof and was concerned that the air off the windshield would go over the top of the vent.

That could be my problem. But when you flip them forward they do help pull out cab heat.



[1nc 2000]

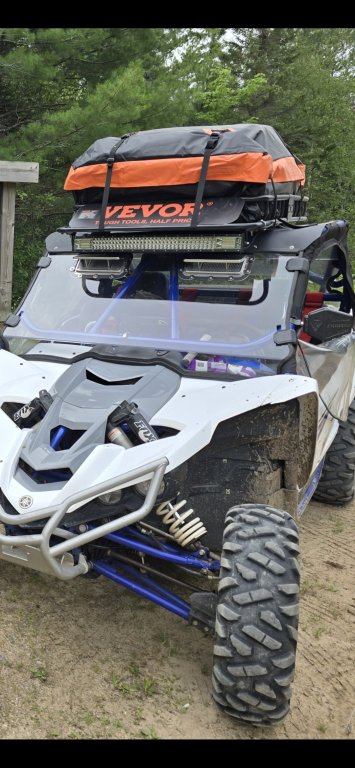

I mounted the vents in the windshield.
With the soft sides, front and rear windows it will create a positive pressure in the cab and keep the engine heat out.



[MrSled]

I mounted the vents in the windshield.
With the soft sides, front and rear windows it will create a positive pressure in the cab and keep the engine heat out.

View attachment 176375

How does it work?



[1nc 2000]

It will blow air at my face if the vent is in the full open position. I just run it one notch from full open. The vents are 5 position so still plenty of air coming in.
Works best with soft sides closed.



[MrSled]

It will blow air at my face if the vent is in the full open position. I just run it one notch from full open. The vents are 5 position so still plenty of air coming in.
Works best with soft sides closed.

Interesting. How about dust?
