Do Not remove this post.... these are the reference photos for the shortened version on the following thread.
Attachments
-

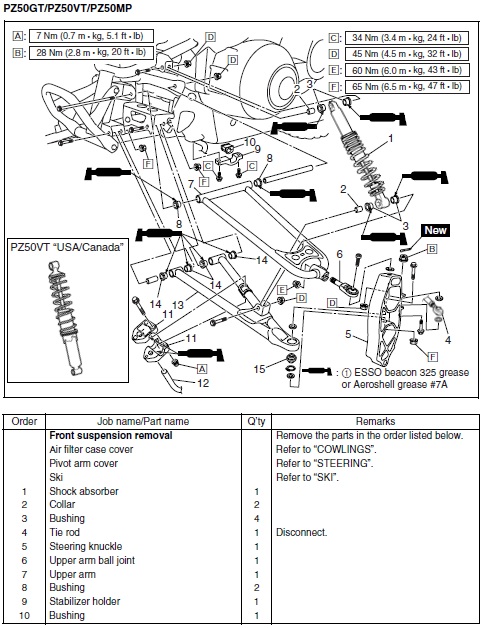

Front suspension (2).jpg124.3 KB · Views: 2,668
-
Engine.jpg221.1 KB · Views: 4,847
-

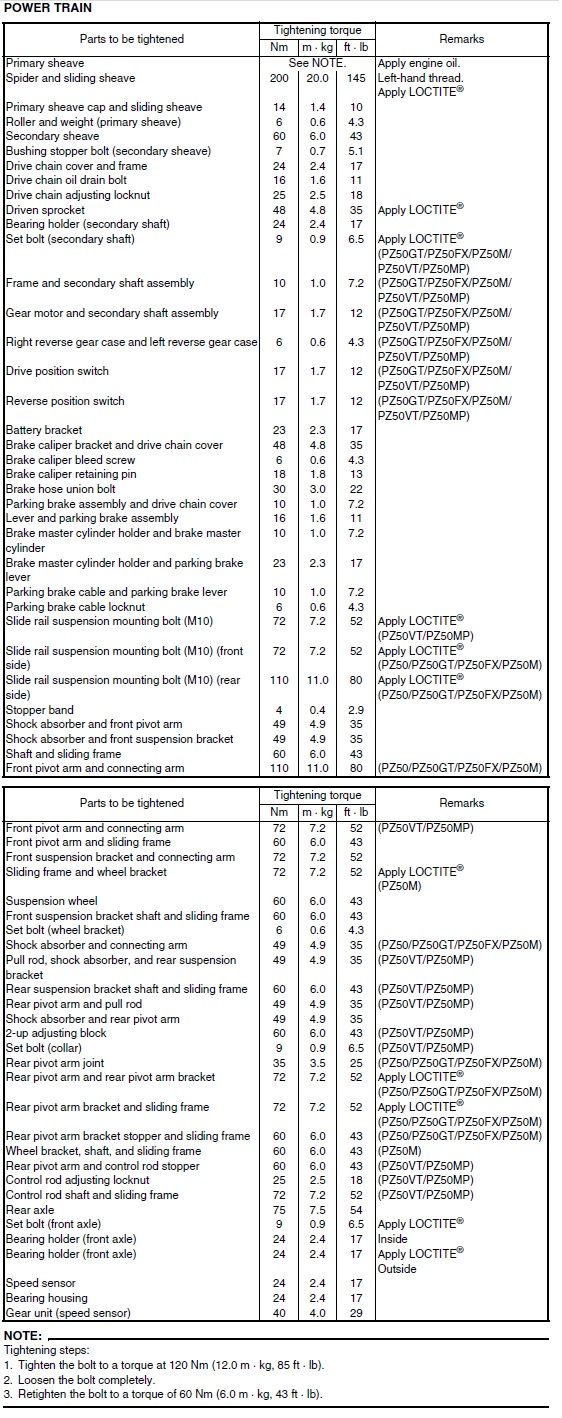

Power Train.jpg354.1 KB · Views: 2,469
-

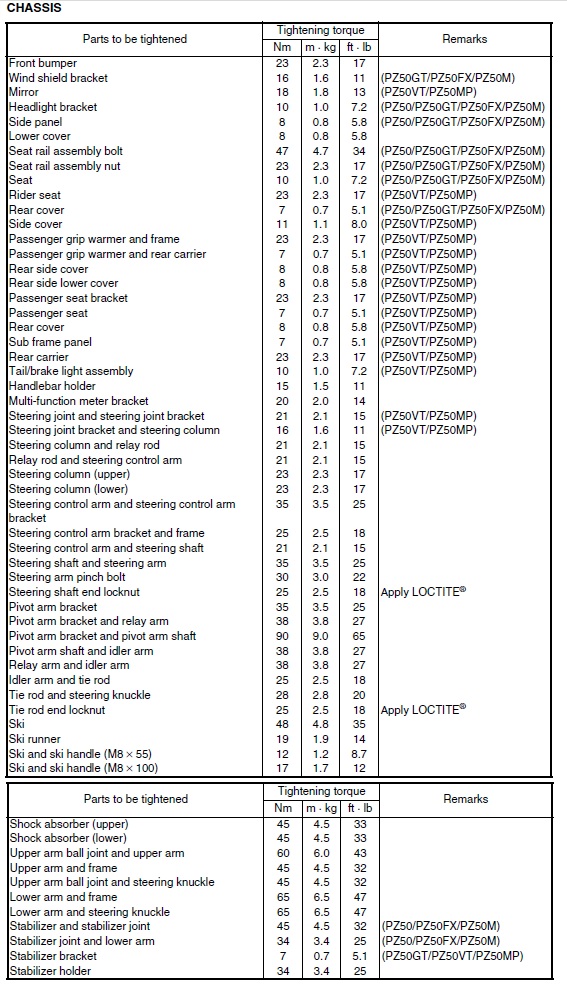

Chassis.jpg237.2 KB · Views: 3,914
-
Steering GT FX M.jpg81.3 KB · Views: 1,367
-
Steering Links.jpg116.5 KB · Views: 1,906
-
Steering VT MP.jpg83.5 KB · Views: 1,265
-
Ski.jpg69.2 KB · Views: 1,561
-

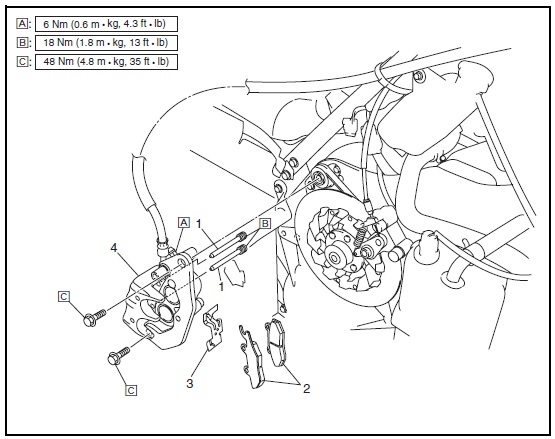

Brake Calliper and Parking Brake.jpg91.9 KB · Views: 1,441
-
Brake Handle and Master Cylinder.jpg66.7 KB · Views: 1,269
-
Brake.jpg69.1 KB · Views: 516
-
Drive Axle and Track.jpg91.5 KB · Views: 1,455
-
Drive Chain.jpg87.2 KB · Views: 600
-
Front Shock and Front Axle PX50VT MP.jpg122.1 KB · Views: 1,462
-
Front Shock Front Axle PZ50 GT FX M.jpg92.2 KB · Views: 1,324
-
Mid Section PZ50 GT FX M.jpg98.7 KB · Views: 1,369
-
Drive Chain.jpg87.2 KB · Views: 2,452
-
Primary Sheave Bolt.jpg63.3 KB · Views: 1,940
-
Rear Axle PX50VT MP.jpg59.5 KB · Views: 1,425
-
Rear Axle PZ50 GT FX M.jpg82.1 KB · Views: 1,251
-

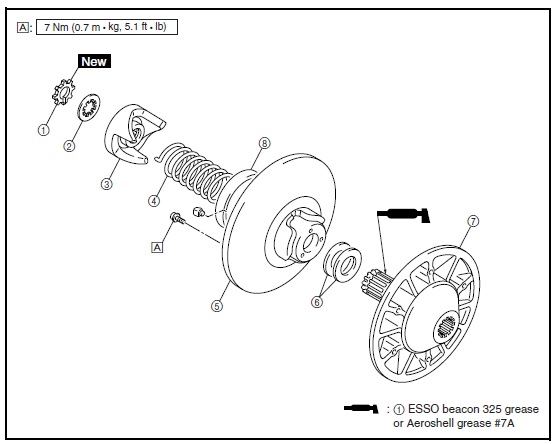

Primary Sheave - Exploded.jpg69.1 KB · Views: 1,658
-
Secondary Sheave - Bolt.jpg51.6 KB · Views: 1,829
-
Secondary Sheave - exploded.jpg47.2 KB · Views: 1,432
-
Secondary Shaft.jpg74.7 KB · Views: 1,453
-

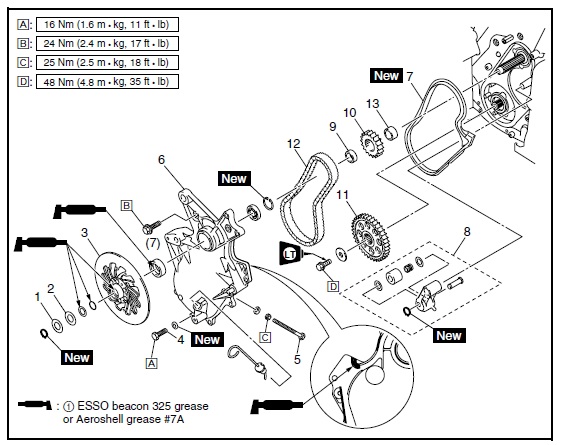

Secondary Shaft and Reverse Gear Case.jpg106.3 KB · Views: 2,236
-
Brake.jpg69.1 KB · Views: 1,208
-
Slide Rail Suspension Mounting Bolts PZ50 GT FX M.jpg98.6 KB · Views: 1,334
-
Rear Shock PZ50 GT FX M.jpg100.4 KB · Views: 1,406
-
Slide Rail Suspension Mounting Bolts PX50VT MP.jpg73.5 KB · Views: 1,350
-
Rear Shock PX50VT MP.jpg124.2 KB · Views: 1,638
-
Seat and Fuel Tank PZ50 GT FX M.jpg102 KB · Views: 1,245
-
Seat and Fuel Tank PZ50VT MP.jpg107.4 KB · Views: 1,431
-
Backrest and Passenger Seat VT MP.jpg105 KB · Views: 1,596
-
Exhaust Pipe and Muffler.jpg109.2 KB · Views: 1,518
-
Exhaust Pipe and Muffler PZ50VT MP.jpg102.8 KB · Views: 1,202
-
Oil Tank.jpg89.9 KB · Views: 1,731
-
Engine Assembly.jpg89.1 KB · Views: 1,696
-
Cylinder Head Cover.jpg85.2 KB · Views: 1,749
-
Camshafts.jpg85.3 KB · Views: 1,356
-
Cylinder Head.jpg69.8 KB · Views: 1,978
-
Magneto Rotor and Starter Clutch.jpg99.8 KB · Views: 1,282
-
Oil Pan and Oil Pump.jpg107.5 KB · Views: 1,356
-
Balancer.jpg99.3 KB · Views: 1,462
-

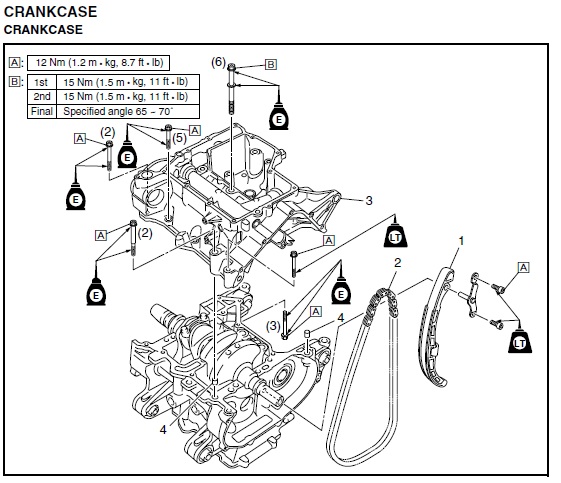

Crankcase.jpg89 KB · Views: 1,620
-
Connecting Rods and Pistons.jpg77.8 KB · Views: 1,114
-
Oil Pan and Oil Pump.jpg107.5 KB · Views: 476
-
Radiator and Heat Exchanger.jpg101 KB · Views: 1,359
-
Thermostat.jpg89.7 KB · Views: 1,333
-
Water Pump.jpg53.1 KB · Views: 1,326
-
Starter Motor.jpg89.8 KB · Views: 1,106
Jeffz
VIP Member
- Joined
- Feb 3, 2010
- Messages
- 600
- Location
- Cresco, Iowa
- Country
- USA
- Snowmobile
- 2008 Yamaha Nytro RTX 40th
2007 Phazer "RTX"
Awesome! Thanks!
Sled Dog
Lifetime Member
Nice work bud!
Awesome!
- Joined
- Nov 1, 2009
- Messages
- 3,564
- Location
- Winnipeg, Manitoba
- Country
- Canada
- Snowmobile
- 2009 Phazer RTX
Thanks guys!
pro116
Lifetime Member
Yes awesome work.I made it a sticky.
- Joined
- Apr 13, 2003
- Messages
- 21,311
- Age
- 54
- Location
- Schofield, WI
- Website
- www.totallyamaha.com
- Country
- USA
- Snowmobile
- 2020 Sidewinder SRX
yamahas said:Thanks guys!
Great Job!!! I have shortened it per your request and split out these thumbnails into another reference thread...
http://www.ty4stroke.com/viewtopic.php?t=104411
- Joined
- Nov 1, 2009
- Messages
- 3,564
- Location
- Winnipeg, Manitoba
- Country
- Canada
- Snowmobile
- 2009 Phazer RTX
MrSled said:yamahas said:Thanks guys!
Great Job!!! I have shortened it per your request and split out these thumbnails into another reference thread...
http://www.ty4stroke.com/viewtopic.php?t=104411
Thank you!
3-UP
Extreme
Wow just bumping a great thread.
Should be a sticky
Ooops I see its already there sorry.
Should be a sticky
Ooops I see its already there sorry.
Trucker
Lifetime Member
- Joined
- Aug 19, 2009
- Messages
- 73
- Location
- Lafayette,Indiana
- Website
- www.fultzracing.com
- Country
- USA
- Snowmobile
- 2016 SR Viper S-TX 146 DX
2009 Phazer GT
1985 Phazer E
This is not meant to be harsh. Maybe it's cause I work in Maintenace. I am floored how many people on here work on their sleds but yet don't OWN a Service manuel. I had my service man. before I had my sled. Hell I was reading it on the way too and from the dealership to pick up my sled. It's in my gear bag so it's with me on all trips. I have even used it for my buddy's Nytro that he had at the time. I personally think it should be an ADDED perk to buying a sled or other atv. They are not hard to get. Just don't get how many people ask about things that are in the manuel. I do get that you may need something claireifed. But any ways I vented sorry if I came across harsh. Just courious why people don't buy them.
Jeffz
VIP Member
- Joined
- Feb 3, 2010
- Messages
- 600
- Location
- Cresco, Iowa
- Country
- USA
- Snowmobile
- 2008 Yamaha Nytro RTX 40th
2007 Phazer "RTX"
I see that the starter picture doesn't show to put Loc-Tite on the bolts.
