Here is a list of all the torque specs for the RX sleds.
Overview Sheets
Engine 1,Engine 2
Power train 1,Power Train 2
Chassis

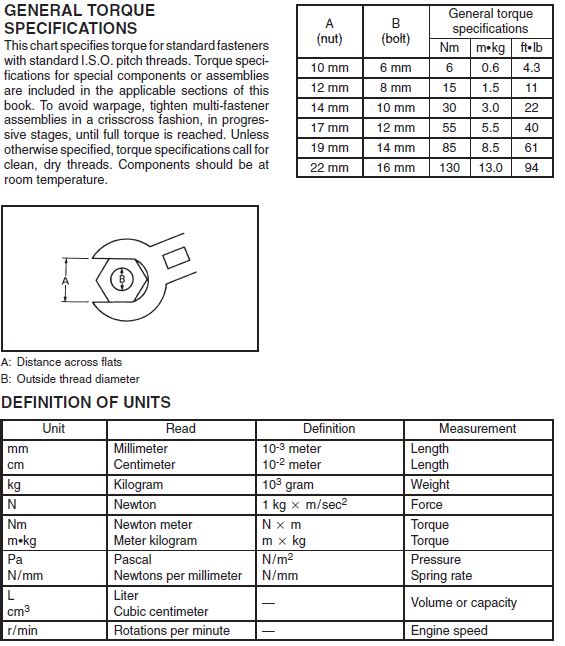

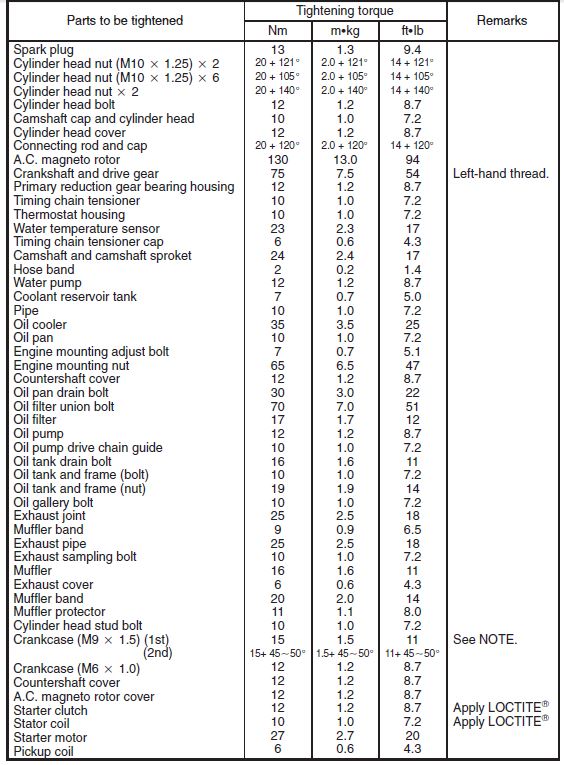

General Torque Specs
Chassis:

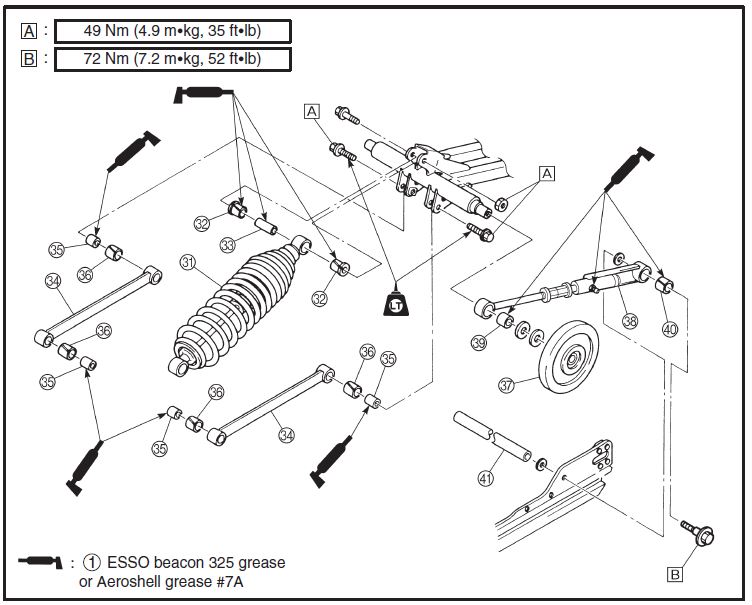

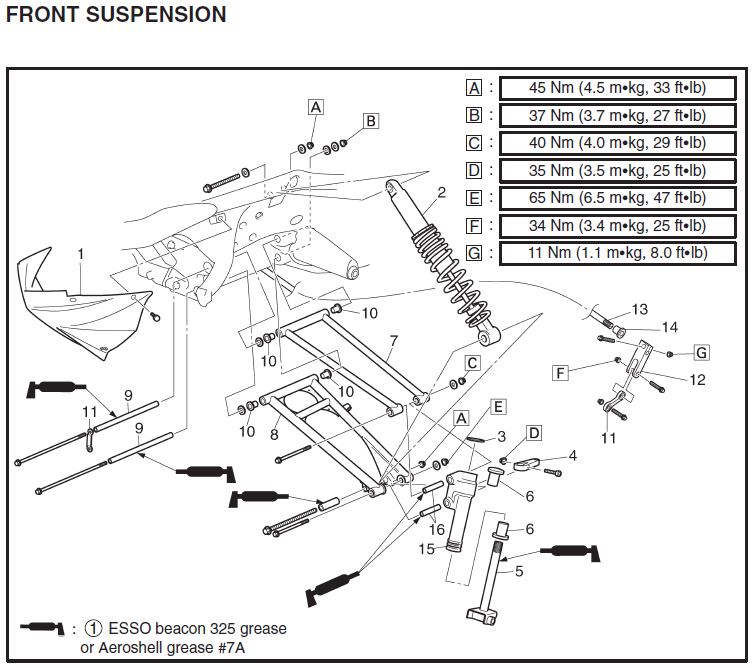

Front Suspension

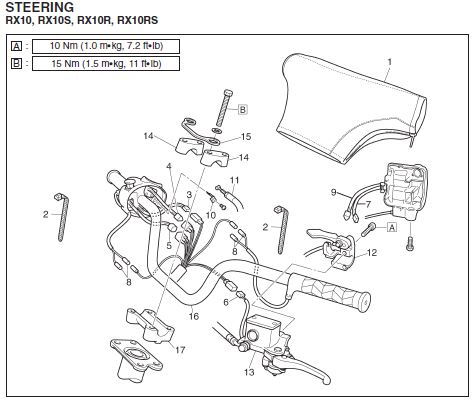

Handle Bars RX10 RX10S RX10R RX10RS
Handle Bars RX10M RX10MS

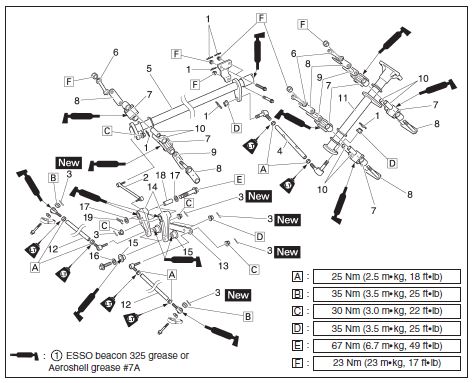

Steering Links
Ski
Power Train

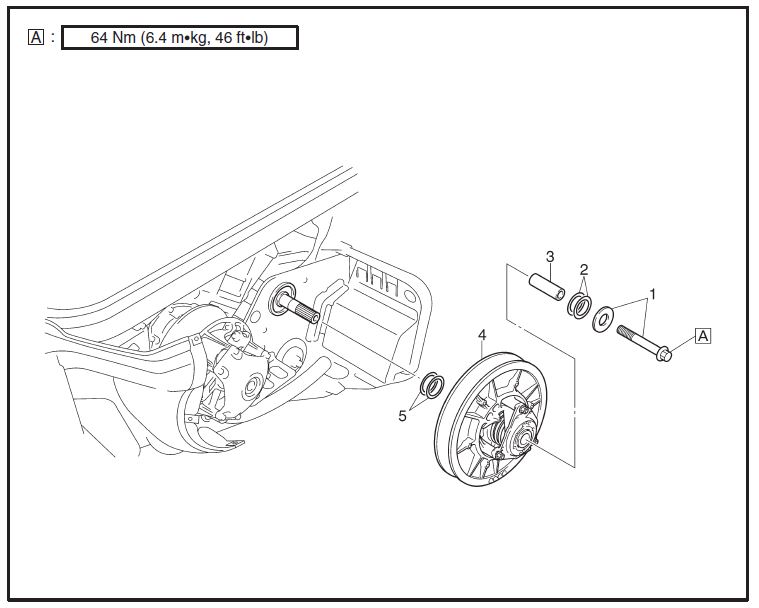

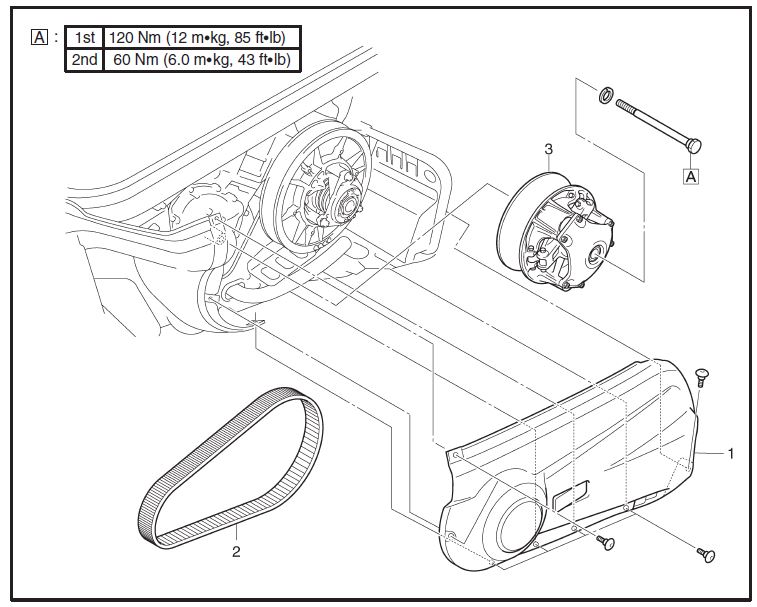

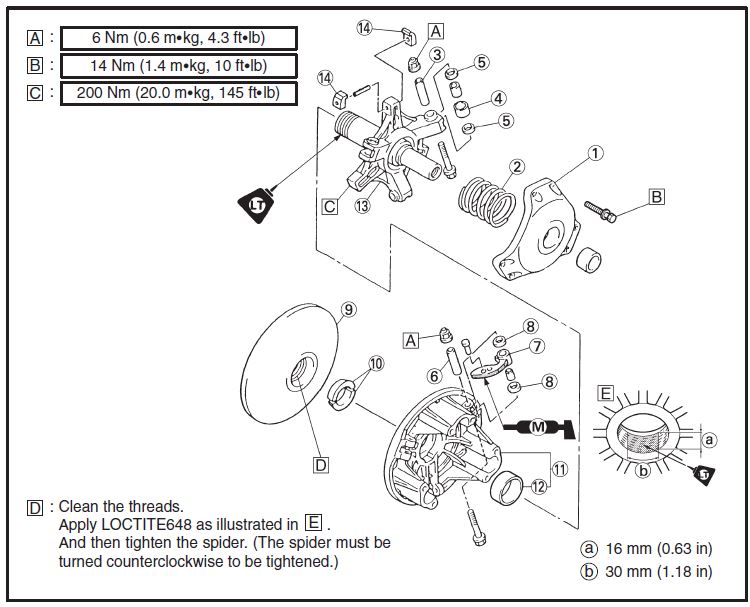

Primary Clutch Bolt
Primary Clutch Exploded
Secondary Clutch Bolt

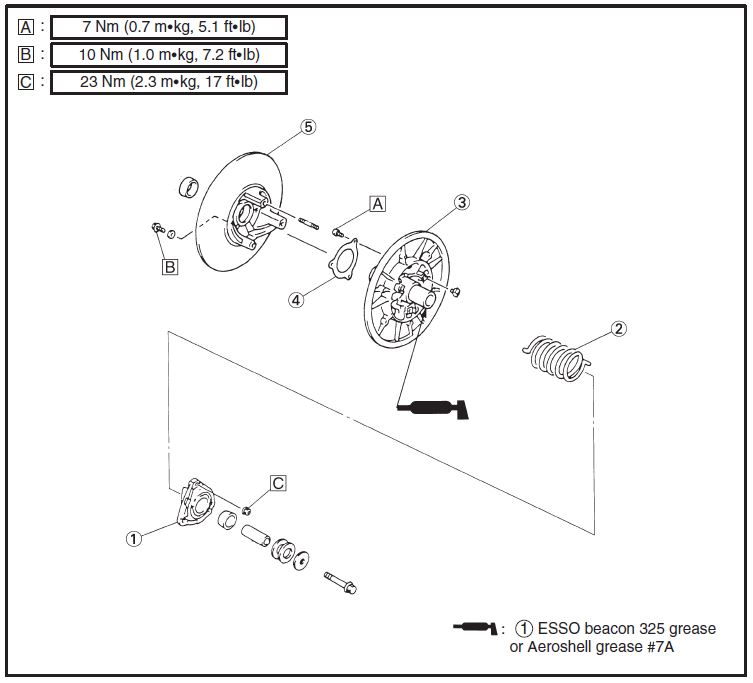

Secondary Clutch Exploded
Chaincase Without Reverse

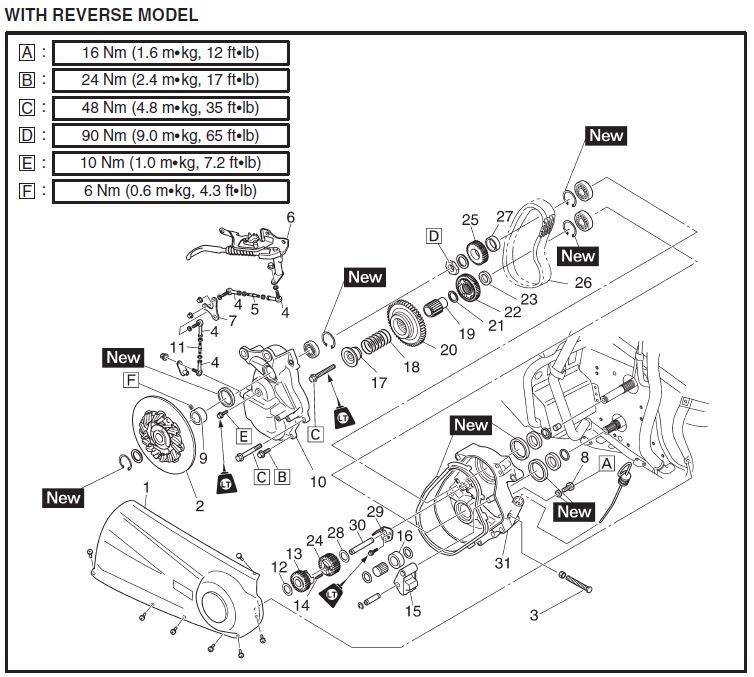

Chaincase With Reverse
Driveshaft

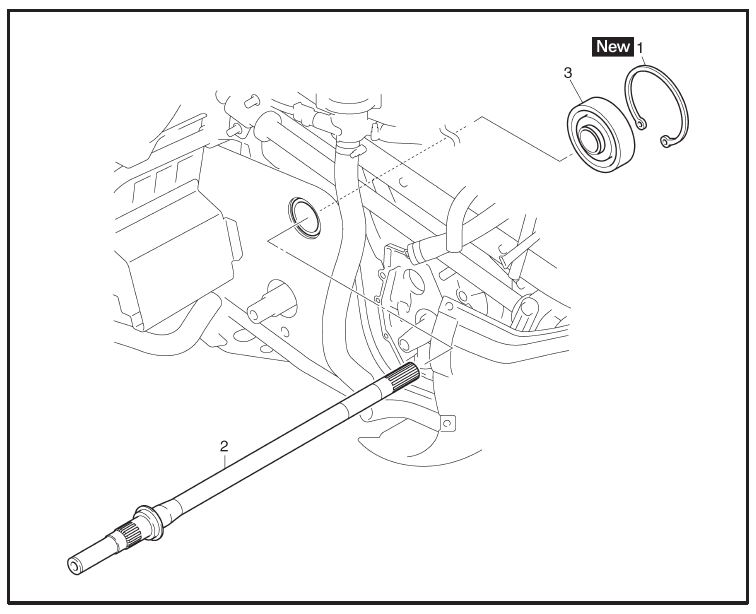

Secondary Shaft

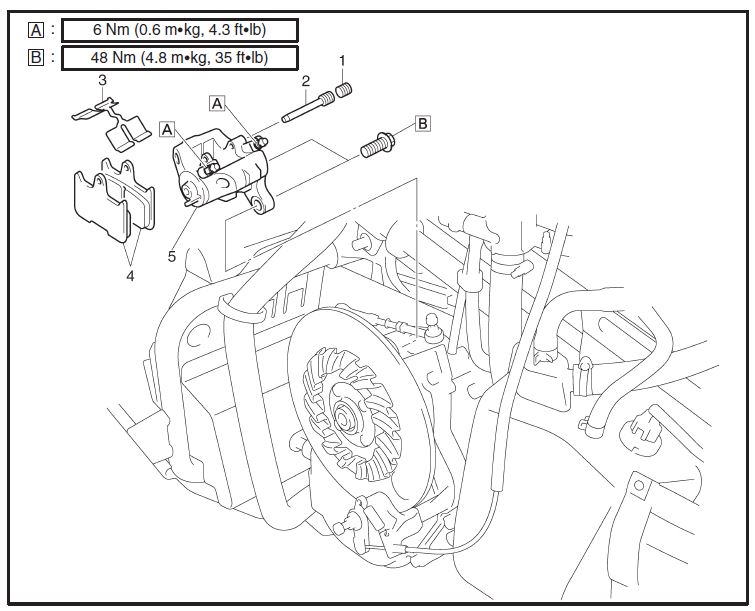

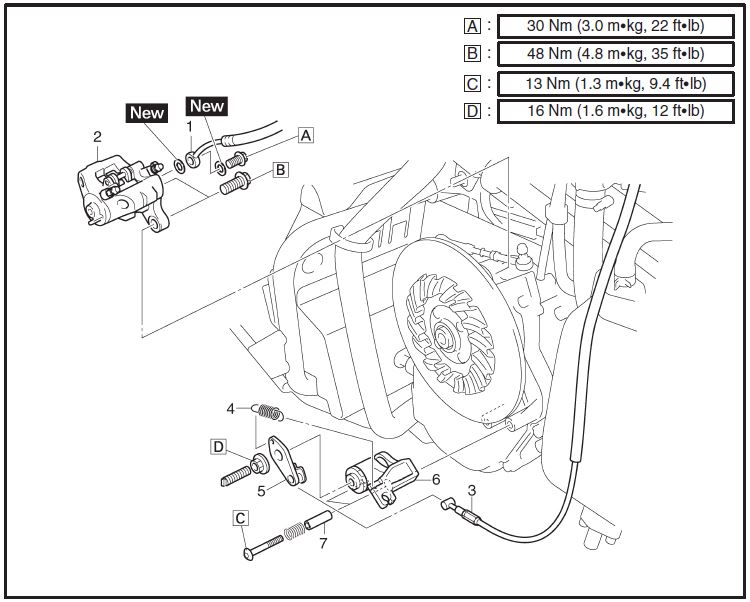

Brake Caliper
Brake Caliper and Parking Brake
Master Cylinder

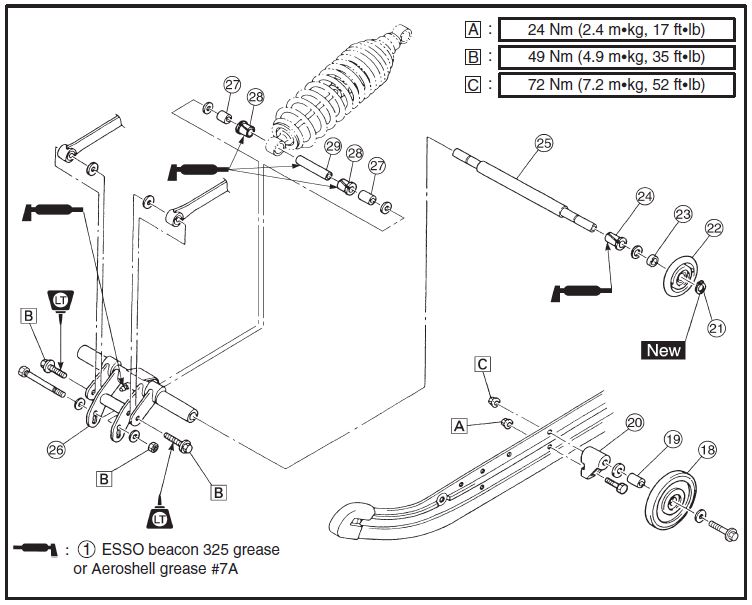

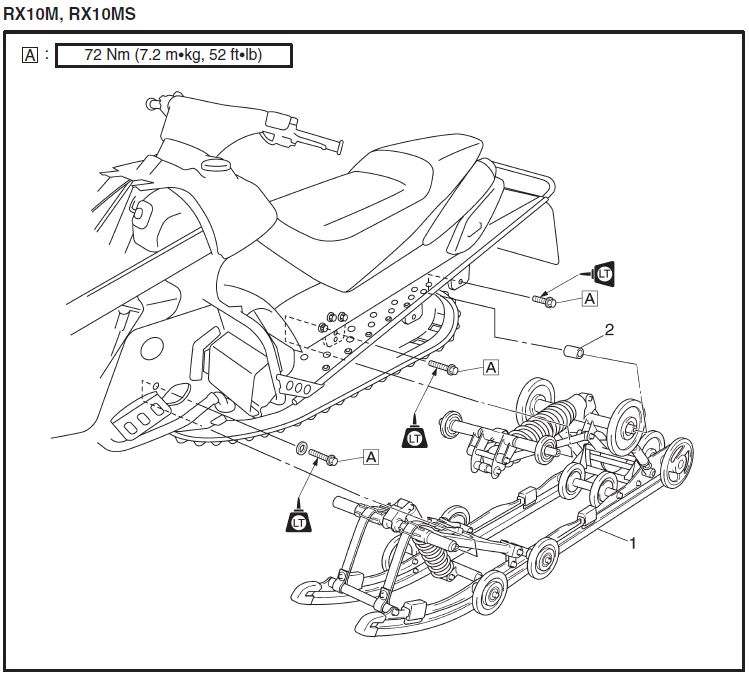

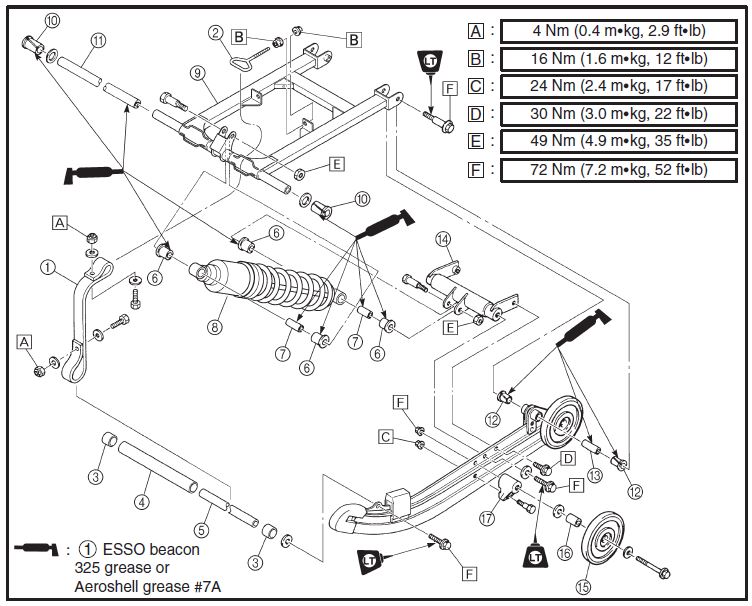

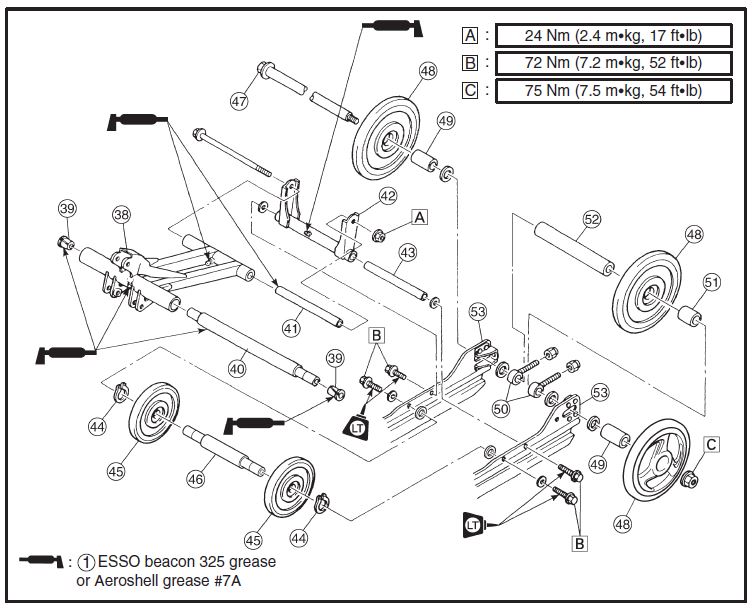

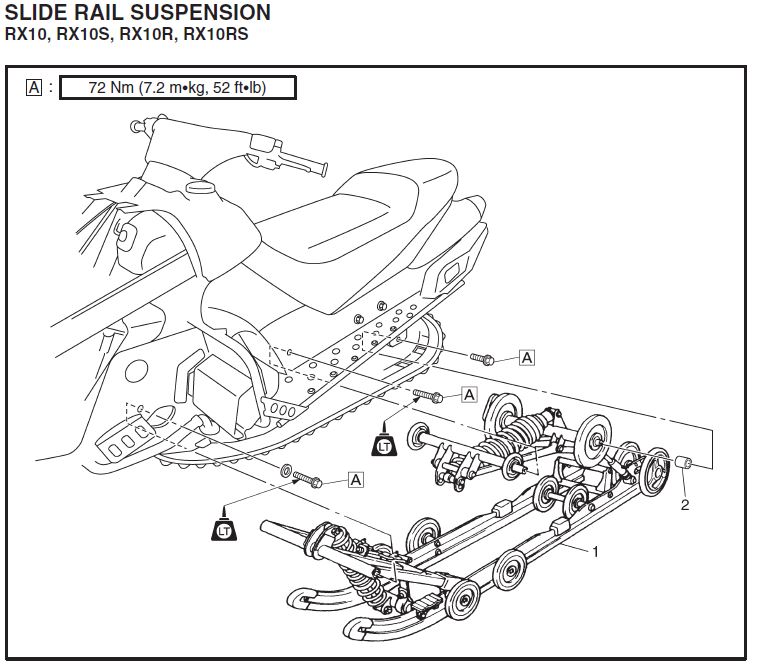

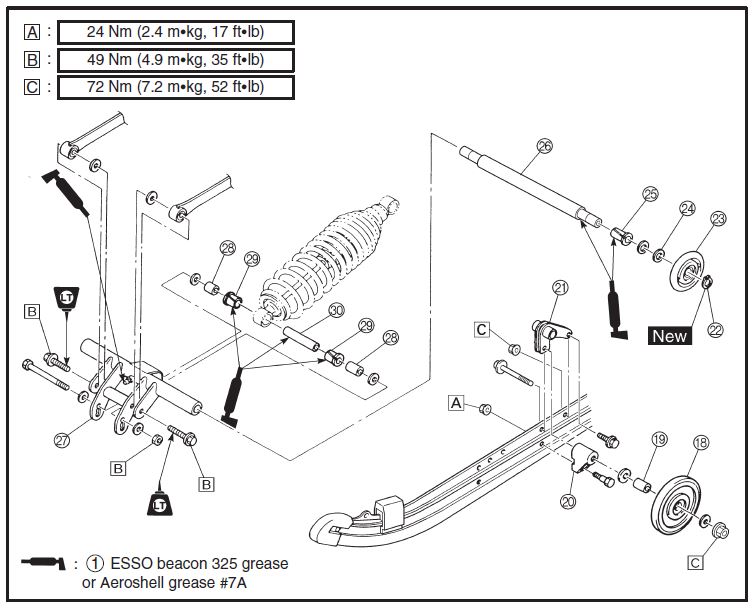

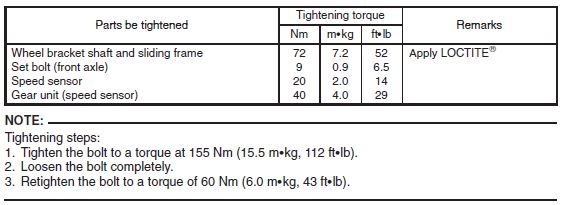

Slide rail Suspension (RX10 RX10S RX10R RX10RS)

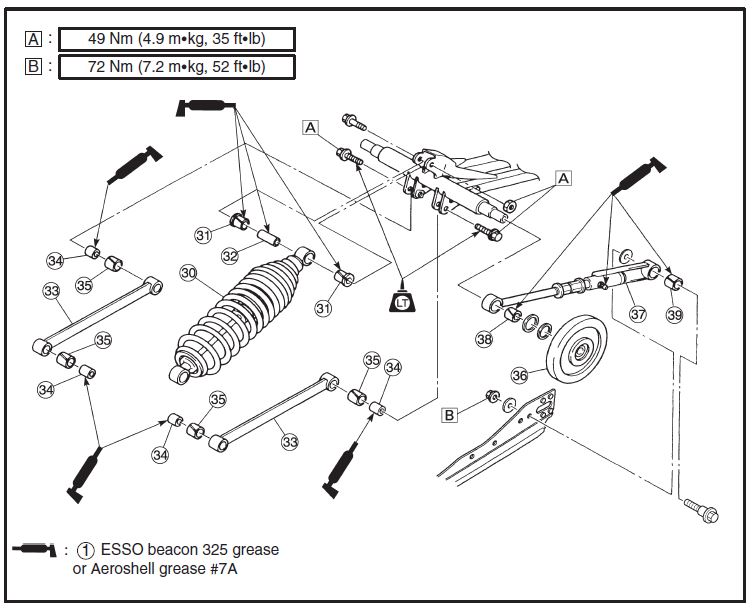

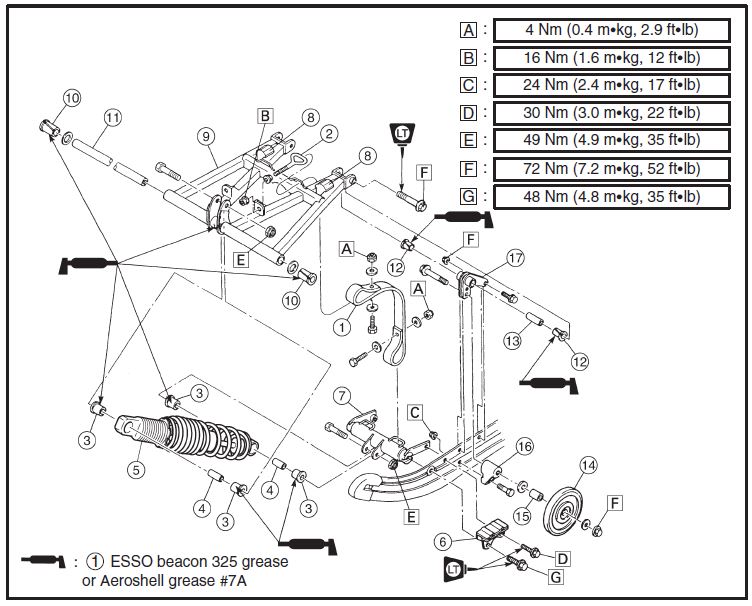

Slide Rail Suspension (RX10M RX10MS)
Engine

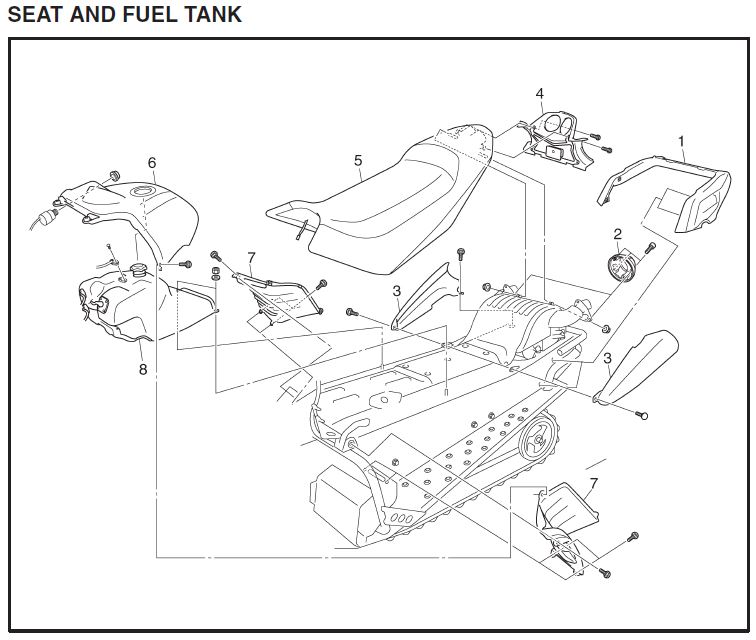

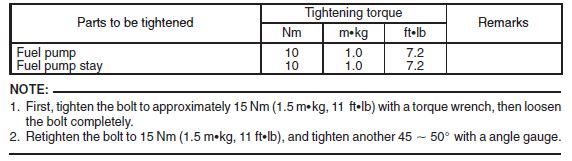

Seat and Fuel Tank

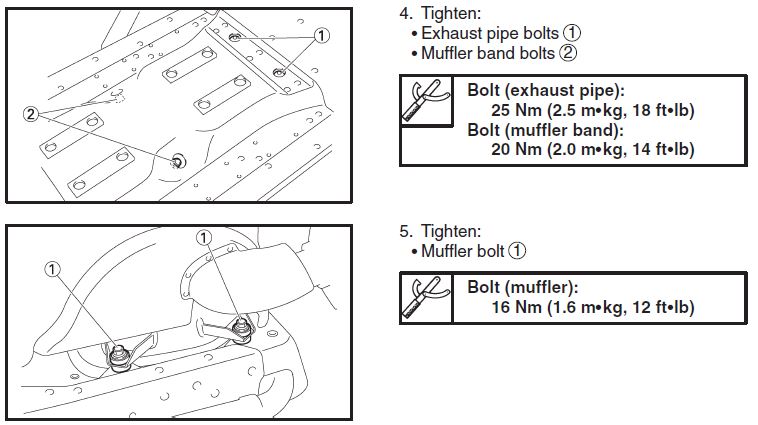

Exhaust Pipe and Muffler
Exhaust Pipe Mounting Bolts
Flex Pipe Clamps
Engine Mounts

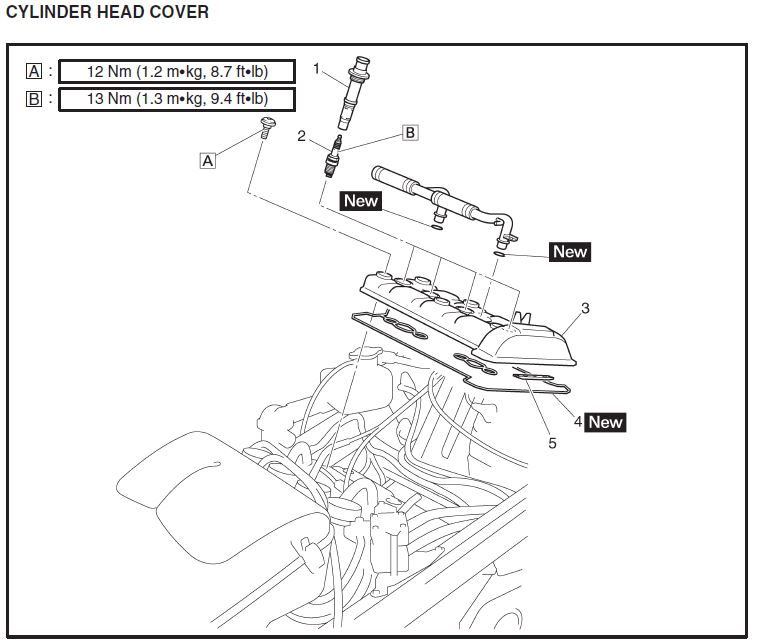

Cylinder Head Cover (Spark Plugs)

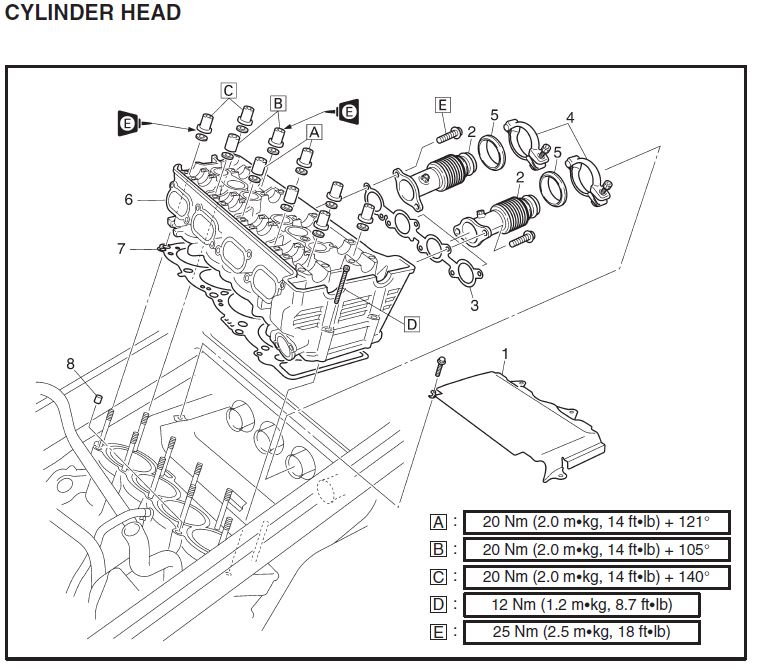

Cylinder Head

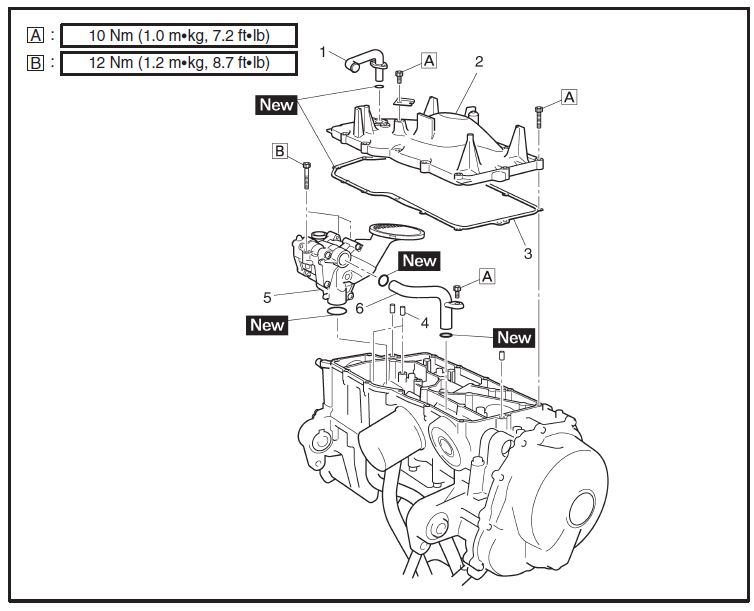

Oil Pan and Pump

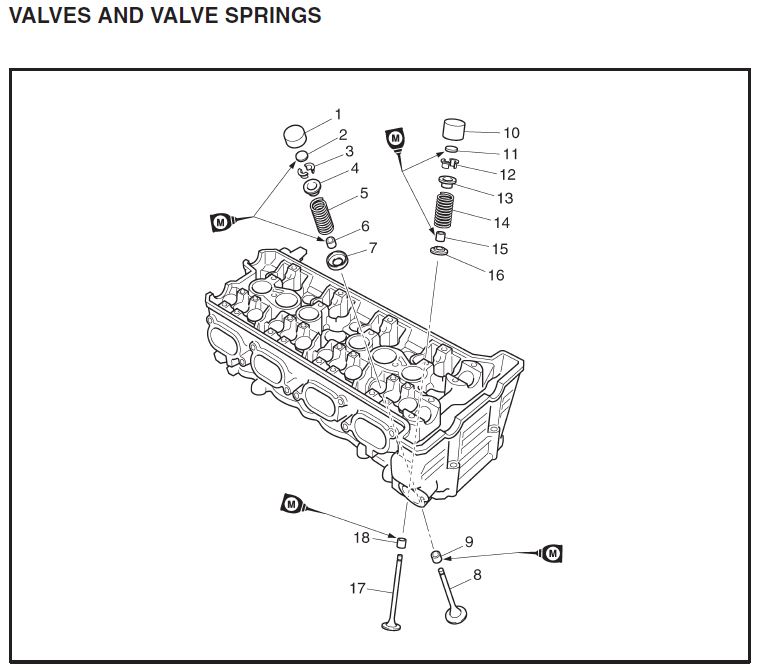

Valves and Valve Springs

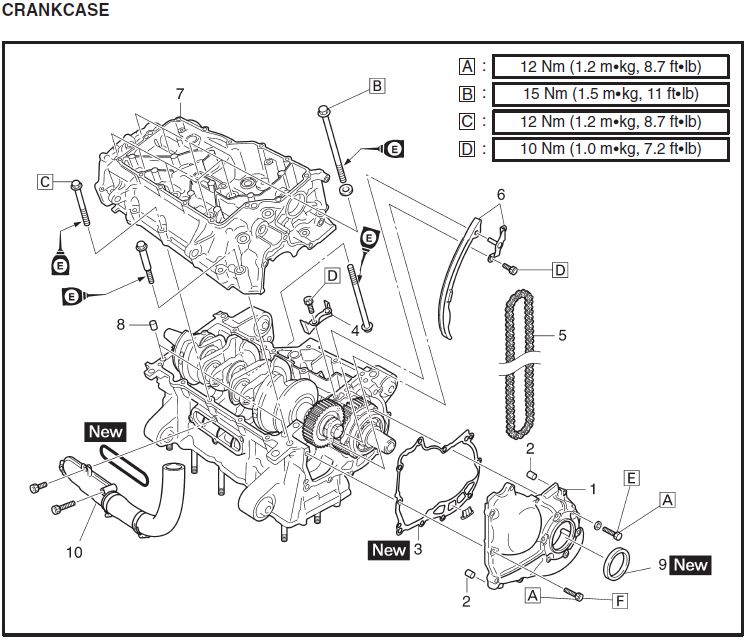

Crankcase

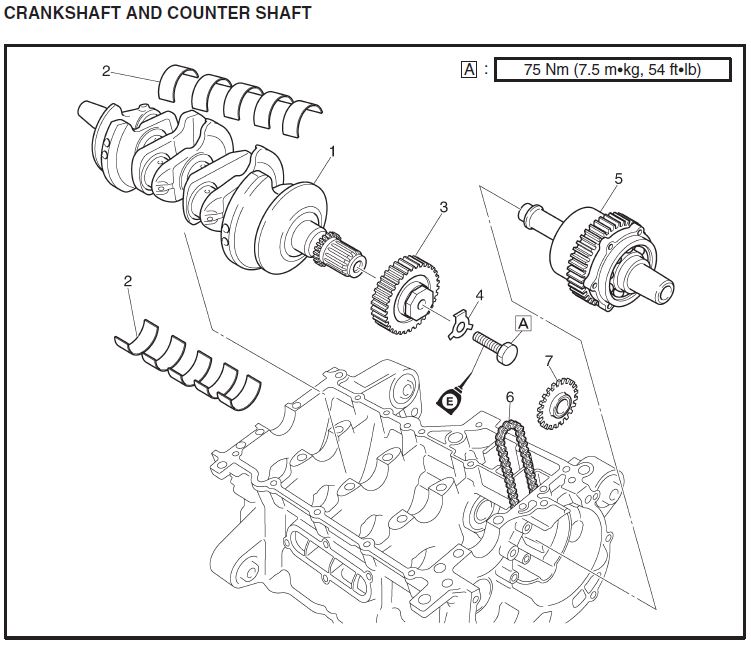

Crankshaft and Counter shaft
Connecting Rods and Pistons
Camshafts

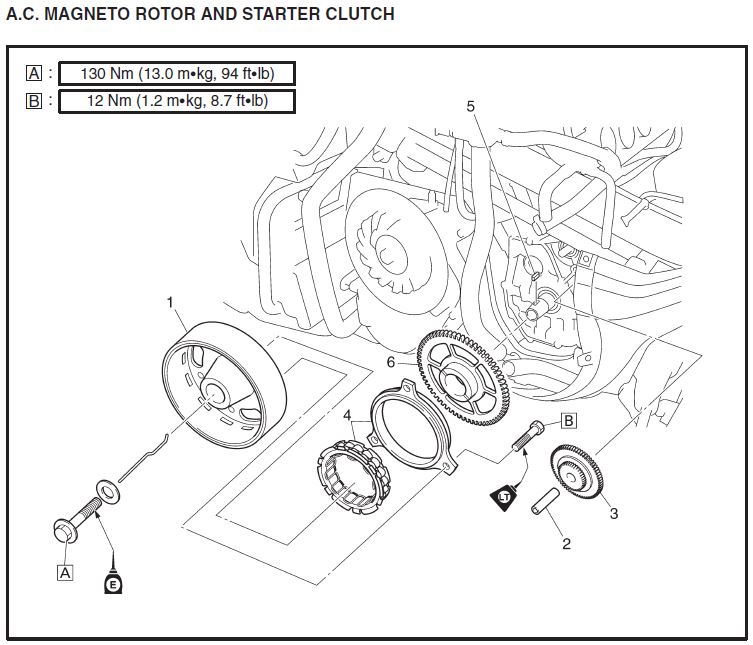

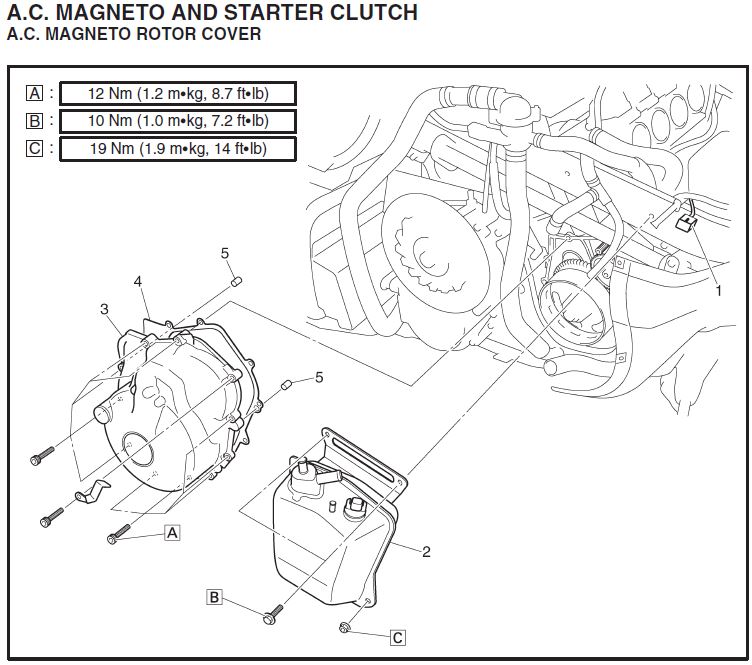

A.C. Magneto and Starter Clutch Cover
A.C. Magneto and Starter Clutch

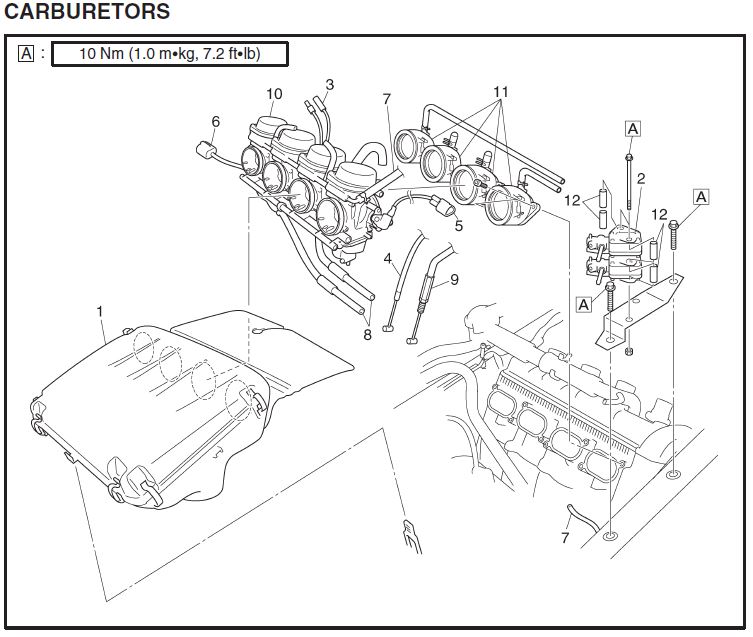

Carburator
Cooling

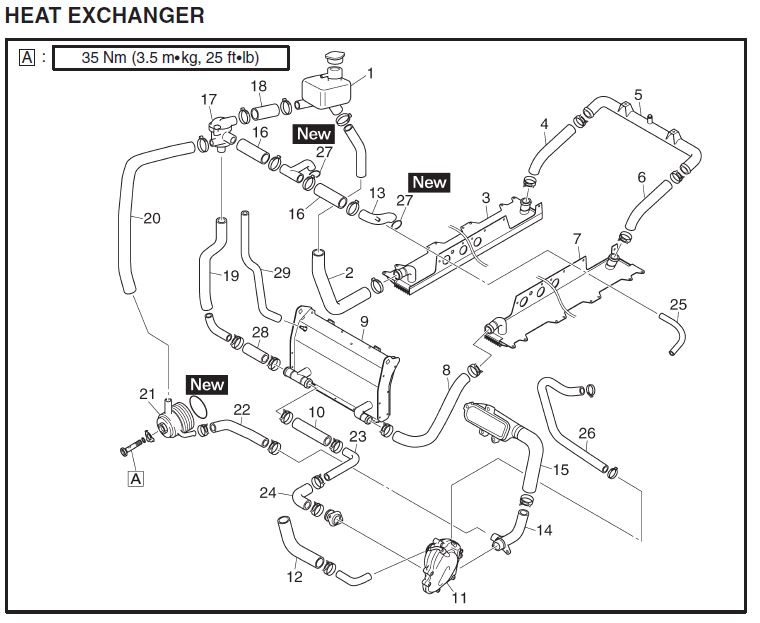

Heat Exchanger

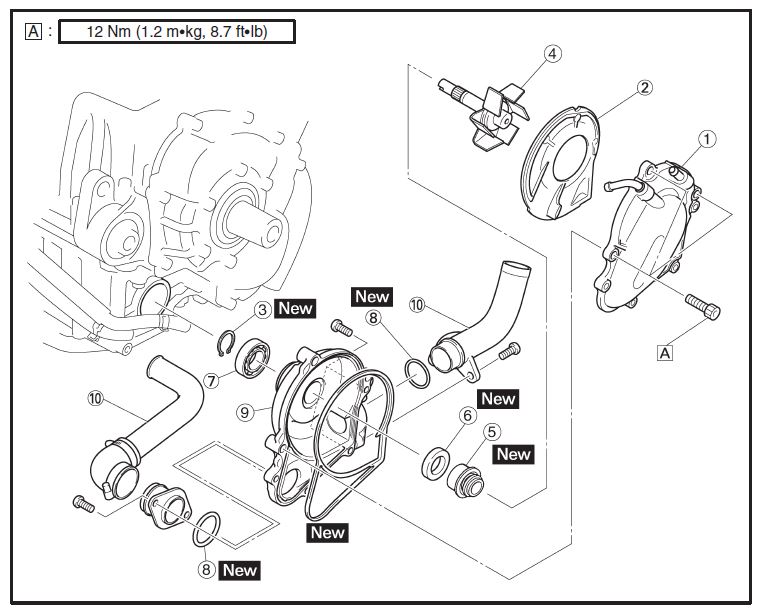

Water Pump

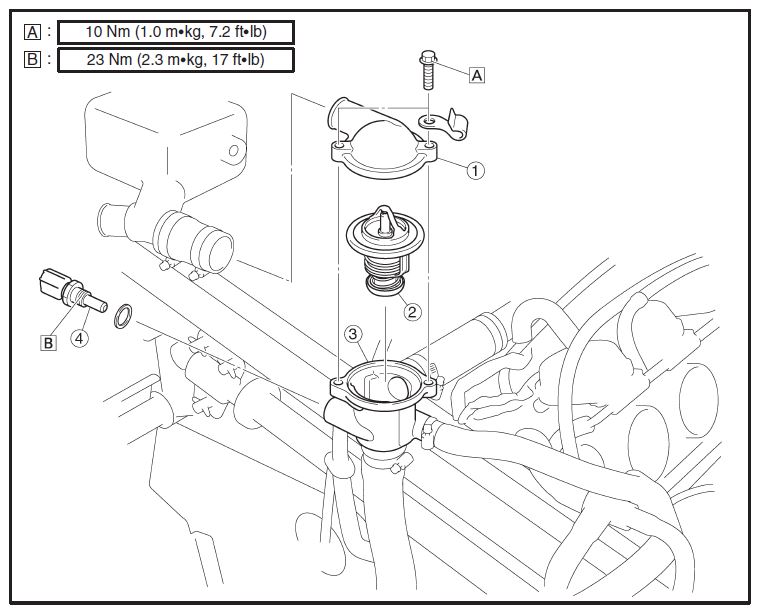

Thermostat
Electrical

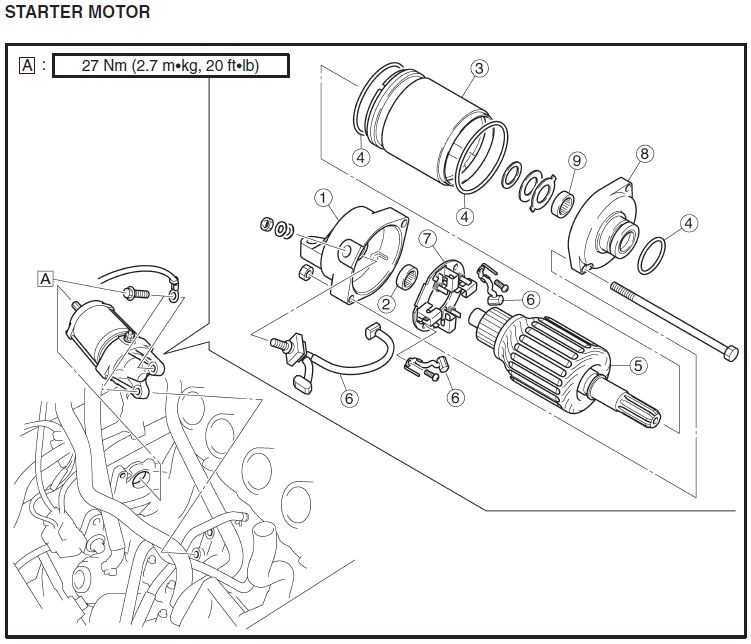

Starter Motor
If I have missed anything please let me know!
Overview Sheets
Engine 1,Engine 2
Power train 1,Power Train 2
Chassis
General Torque Specs
Chassis:
Front Suspension
Handle Bars RX10 RX10S RX10R RX10RS
Handle Bars RX10M RX10MS
Steering Links
Ski
Power Train
Primary Clutch Bolt
Primary Clutch Exploded
Secondary Clutch Bolt
Secondary Clutch Exploded
Chaincase Without Reverse
Chaincase With Reverse
Driveshaft
Secondary Shaft
Brake Caliper
Brake Caliper and Parking Brake
Master Cylinder
Slide rail Suspension (RX10 RX10S RX10R RX10RS)
Slide Rail Suspension (RX10M RX10MS)
Engine
Seat and Fuel Tank
Exhaust Pipe and Muffler
Exhaust Pipe Mounting Bolts
Flex Pipe Clamps
Engine Mounts
Cylinder Head Cover (Spark Plugs)
Cylinder Head
Oil Pan and Pump
Valves and Valve Springs
Crankcase
Crankshaft and Counter shaft
Connecting Rods and Pistons
Camshafts
A.C. Magneto and Starter Clutch Cover
A.C. Magneto and Starter Clutch
Carburator
Cooling
Heat Exchanger
Water Pump
Thermostat
Electrical
Starter Motor
If I have missed anything please let me know!
Last edited:
![](/styles/TYLifeMember.gif)
![](/styles/vip.gif)
- Joined
- Nov 1, 2009
- Messages
- 3,564
- Location
- Winnipeg, Manitoba
- Country
- Canada
- Snowmobile
- 2009 Phazer RTX
Also if any of the links do not work let me know as well.
Good job bud the handle bar one is not working for me anyhow.
![](/styles/TYLifeMember.gif)
![](/styles/vip.gif)
- Joined
- Nov 1, 2009
- Messages
- 3,564
- Location
- Winnipeg, Manitoba
- Country
- Canada
- Snowmobile
- 2009 Phazer RTX
Sled Dog said:Good job bud the handle bar one is not working for me anyhow.
Fixed it!
mongaupt
Newbie
I'm little lost on the primary clutch bolt.
1st torque down to 85 pounds. Then loosen it and torque down to 43 pounds.
Am I reading this correct.
Sent from my iPhone using Tapatalk
1st torque down to 85 pounds. Then loosen it and torque down to 43 pounds.
Am I reading this correct.
Sent from my iPhone using Tapatalk
![](/styles/TYLifeMember.gif)
![](/styles/vip.gif)
- Joined
- Jun 1, 2004
- Messages
- 7,707
- Location
- sudbury on
- Country
- Canada
- Snowmobile
- 2016 apex xtx
2011 apex xtx
2009 phaser rtx/x
1997 et410t/r
1988 vk 540
yes that is proper procedure. 1st torque seats it on the taper. 2nd torque is just to keep it there.
