2015 LTX DX FUEL GAUGE ISSUE

[cobrajet ltx dx]

MY FUEL GAUGE IS OFF BY AT LEAST A HALF TO A QUARTER. COMING OUT OF THE WOODS APPROACHING A ROAD CROSSING THE SLED SPUTTERED AND QUIT. FUEL GAUGE SHOWING ABOVE A QUARTER AND BELOW HALF. KEEP IN MIND I WAS ALREADY HEADING TO TOWN FOR FUEL.SITTING ON THE SIDE OF THE TRAIL I DETERMINED THAT THE TANK WAS EMPTY.

I TESTED SENDING UNIT WHICH TESTED OK
WHAT I REALLY NEED IS FOR SOMEBODY TO REMOVE THERE SEAT, TAKE A PICTURE OF SENDING UNIT SO I CAN SEE THE ORIENTATION WHEN BOLTED TO THE TANK.I NEED A COMPARISON
IM HOPING ITS JUST INSTALLED WRONG.

ANY HELP WOULD BE MUCH APPRECIATED



[DC5]

Pull the sending unit out of the tank. It is just held together with a zip tie, mine came apart and was acting similar to yours.



[cobrajet ltx dx]

THE UNIT WAS PULLED OUT ALREADY AND ALL IN WORKING ORDER BUT THE ORIENTATION ON HOW IT IS POSITIONED IN THE TANK IS MY NEXT THOUGHT THATS WHY I NEED SOME ONE TO TAKE A PICTURE OF THE SENDING UNIT WHEN ITS BOLTED TO THE TANK



[mnman309]

I have a 2015 LTX SE, give me 10 mins and I will get a picture.



[mnman309]

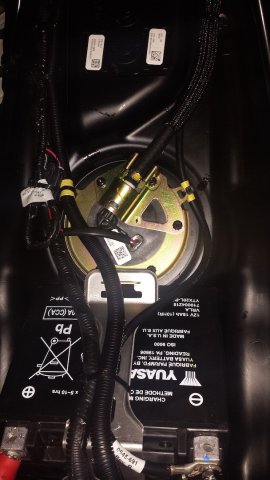

I took the picture from standing on the back right (throttle side). I know nothing has been tampered or changed as I have .2 miles on this thing! bought it and havent ridden it yet!!!



[cobrajet ltx dx]

THANKS SO MUCH MNMAN BUT THAT IS THE FUEL PUMP I NEED A PICTURE OF THE SENDING UNIT SMALL ROUND TWO WIRE UNIT CLOSER TO THE FRONT OF THAT TANK



[mnman309]

ok hang on another pic coming!



[mnman309]

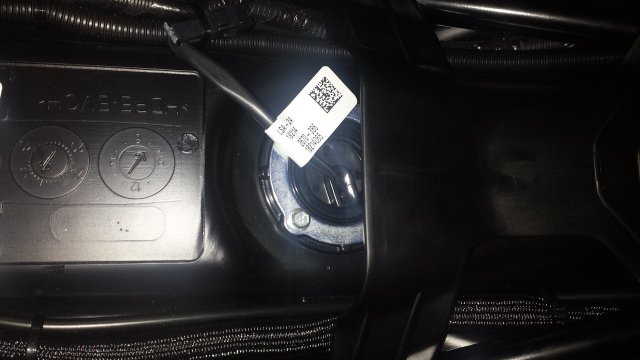

It is in the 2oclock position if you use where the wires come out. There is a raised tab at the 3 oclock position but it is just before that. Again taken at the right side of the sled.



[cobrajet ltx dx]

THATS PERFECT MNMAN, FROM WHAT IM LOOKING AT MY SENDING UNIT WAS INSTALLED WRONG. MY SLED WAS COMPLETLY EMPTY JUST BELOW A HALF ON GAUGE. SURPRISED THAT THERE IS NO INDEX MARKINGS BETWEEN UNIT AND TANK AND THATS WHY I NEED A PICTURE

THANKS SO MUCH AND HAVE A GREAT NIGHT. AND BY THE WAY, THESE SLEDS ARE THE REAL DEAL WITH MINOR ADJUSTMENTS



[mnman309]

I loved my Nytro, cant wait to ride this thing! Your welcome, btw fill out your profile with location and enjoy TY4stroke, I learned alot and everyone is great on here too!



[cannondale27]

THATS PERFECT MNMAN, FROM WHAT IM LOOKING AT MY SENDING UNIT WAS INSTALLED WRONG. MY SLED WAS COMPLETLY EMPTY JUST BELOW A HALF ON GAUGE. SURPRISED THAT THERE IS NO INDEX MARKINGS BETWEEN UNIT AND TANK AND THATS WHY I NEED A PICTURE

THANKS SO MUCH AND HAVE A GREAT NIGHT. AND BY THE WAY, THESE SLEDS ARE THE REAL DEAL WITH MINOR ADJUSTMENTS

Installed at factory wrong? If so please be sure to have dealer submit at least a warranty report. They need to know these things. Great problem solving who would have guessed something so simple would cause this.



[cobrajet ltx dx]

After 20yrs as a tech i have learned 1 vital thing with the diagnostic work, check all the basics before getting a head of yourself. you be surprised how many things are f&& up from the factory.



[cannondale27]

Stick around we need people like you!



[cobrajet ltx dx]

Will do my friend!!!!!!!!!!!!!!
