I actually replaced that hose. I just stuck a bunch of rtv over the crankcase bolt and allen bolt behind the clutch. Ill see if that helps.
Hose down that engine compartment with brake clean and spray foam that b@#$th up.
Goody_1000
Extreme
I really hope you find the root cause. Years ago I had a stud go thru front heat exchanger on my 97 Vmax 700. I laid sled on side, dried off coolant, used propane torch to heat up/dry area. Gooped up some JB weld, can't remember exactly what it was labeled, maybe marine use, not sure, but was JB weld, supposed to stick if wet or not and was for use gas/coolant/oil type leak situations. Worked fine for 3 years, didn't leak. Hope this helps.
Brotherdan
Expert
- Joined
- Sep 8, 2017
- Messages
- 361
- Age
- 52
- Location
- Belmont,maine
- Country
- USA
- Snowmobile
- 2011 apex xtx blue, starr suspension,gytr front shocks,camso 1.5 track cut down, snowtrackers work in process,2003 rx1er originally 121 converted to 136"monoshock 2 ck136 rear suspension with clicker vector ltx shock,muffin works tunnel extension, seat concepts(wrp) seat,apex hooked handlebars converted to all underhood wiring,8"lake effect billet aluminum riser,gytr frontshocks,yamaheater hand warmer kit,rocks ridelite,rocks power supply, rocks heated bag,, tunnel braces,blue skid plate,garmin gps, aggressive snowtrackers on apex single keel skis,rollerski ski wheel kit,108 warthog studs&blue studboy backers,pioneer wheel lowering kit, dupont slides, 4th wheel kit,yamaha saddle, tank& windshield bags, powermadd led handguards, bar mount mirror kit, apex radiator& electric fan added, apex rear cooler,autometer temp guage, apex new style large diameter drive shaft with extroverts machined for chaincase,thunder products clutching,1987 enticer 340ltr 2100miles,1984 enticer 340,1996 wolverine 350,big wheel kit,winch,racks,k&n,full skidplates
Man that’s horrible all that work!Does the water pump have a weep hole?hard to tell from pic,most water pumps use a mechanical seal inside the water pump,if it has a weep hole is it possible the mechanical seal inside the pump is bad&coolant is coming out of the weep hole?Got it running! Same leak....
Brotherdan
Expert
- Joined
- Sep 8, 2017
- Messages
- 361
- Age
- 52
- Location
- Belmont,maine
- Country
- USA
- Snowmobile
- 2011 apex xtx blue, starr suspension,gytr front shocks,camso 1.5 track cut down, snowtrackers work in process,2003 rx1er originally 121 converted to 136"monoshock 2 ck136 rear suspension with clicker vector ltx shock,muffin works tunnel extension, seat concepts(wrp) seat,apex hooked handlebars converted to all underhood wiring,8"lake effect billet aluminum riser,gytr frontshocks,yamaheater hand warmer kit,rocks ridelite,rocks power supply, rocks heated bag,, tunnel braces,blue skid plate,garmin gps, aggressive snowtrackers on apex single keel skis,rollerski ski wheel kit,108 warthog studs&blue studboy backers,pioneer wheel lowering kit, dupont slides, 4th wheel kit,yamaha saddle, tank& windshield bags, powermadd led handguards, bar mount mirror kit, apex radiator& electric fan added, apex rear cooler,autometer temp guage, apex new style large diameter drive shaft with extroverts machined for chaincase,thunder products clutching,1987 enticer 340ltr 2100miles,1984 enticer 340,1996 wolverine 350,big wheel kit,winch,racks,k&n,full skidplates
i looked&it has the mechanical seal,they are usually ceramic &in auto&truck these are usually why water pumps leak
Attachments
kinger
VIP Member
It’s actually leaking oil not coolant. Going to take it out for a run and see how bad it leaks and if I can just add oil each morning or not.
Brotherdan
Expert
- Joined
- Sep 8, 2017
- Messages
- 361
- Age
- 52
- Location
- Belmont,maine
- Country
- USA
- Snowmobile
- 2011 apex xtx blue, starr suspension,gytr front shocks,camso 1.5 track cut down, snowtrackers work in process,2003 rx1er originally 121 converted to 136"monoshock 2 ck136 rear suspension with clicker vector ltx shock,muffin works tunnel extension, seat concepts(wrp) seat,apex hooked handlebars converted to all underhood wiring,8"lake effect billet aluminum riser,gytr frontshocks,yamaheater hand warmer kit,rocks ridelite,rocks power supply, rocks heated bag,, tunnel braces,blue skid plate,garmin gps, aggressive snowtrackers on apex single keel skis,rollerski ski wheel kit,108 warthog studs&blue studboy backers,pioneer wheel lowering kit, dupont slides, 4th wheel kit,yamaha saddle, tank& windshield bags, powermadd led handguards, bar mount mirror kit, apex radiator& electric fan added, apex rear cooler,autometer temp guage, apex new style large diameter drive shaft with extroverts machined for chaincase,thunder products clutching,1987 enticer 340ltr 2100miles,1984 enticer 340,1996 wolverine 350,big wheel kit,winch,racks,k&n,full skidplates

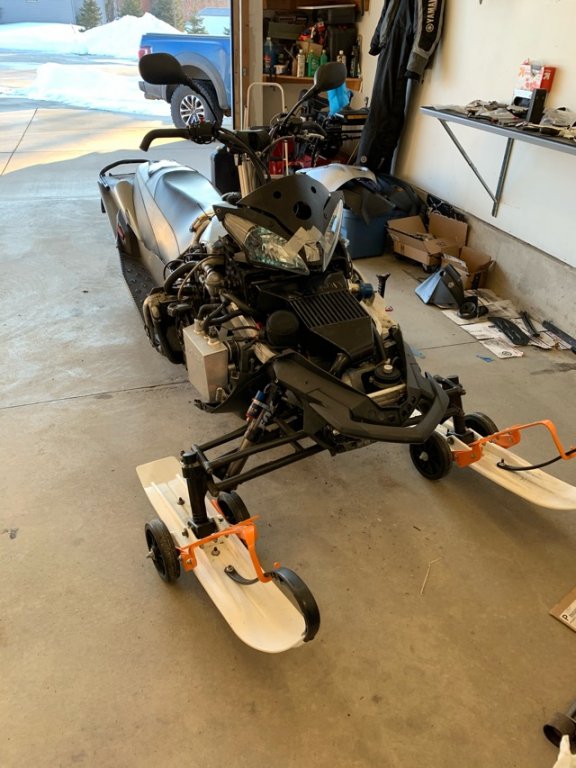

Oh my bad sorry should have paid more attention,good luck mines slowly coming together &hope to not have any issues
kinger
VIP Member
Went out for less then a mile and oil everywhere. Im throwing in the towel until summer. I’m thinking its a cracked block that opens up under pressure or something. Really a bummer but this sled will get a new full re-build this summer!
Just googled it. You are 8.5 hours away from me. Which means in less than 24 hour you could have a good known block. Swap out the piston and you are good to go.
kinger
VIP Member
Looking at getting back on this, I do have a new motor on the way but I would like to diagnose this better so when I pull it I know if I can sell it, part it out or what. I have started it and loaded it on the trailer multiple times this summer not a drop, as soon as I get over 6K and into some boost it actually sprays oil from a unknown source over there. NO oil is mixing with the coolant that was clean. I can't find any cracks on the case, or the water pump. Completely stumped!
Anyone have an idea to test before I render the sled un-usable and yank it?
Anyone have an idea to test before I render the sled un-usable and yank it?
I was out testing a turbo Apex a bunch of years back and had the day cut short by an oil leak. On this sled it was the fitting on the crankcase that the oil return hose clamps to. The fitting itself had come out of the block (I guess it is just a press fit from factory). Anyway, I cleaned up the fitting/case and put it back in with some red loctite, and the sled has been fine ever since. This is a bit different than your issue (one time failure vs. repeatable failure) and confidence is low that it's your problem, but still something you can look at that probably hasn't been checked yet.
sailor joe
TY 4 Stroke Guru
- Joined
- Apr 4, 2019
- Messages
- 761
- Location
- ma
- Country
- USA
- Snowmobile
- 2016 RS VENTURE TF
2020 SIDEWINDER GT
you could check and see if the oil filter gasket has one stuck on from the time before...I had 2 oil filter gaskets on and it sprayed oil just like you describe and the picture looks...its worth a check. Joe
kinger
VIP Member
Thanks Jim, I will try to find that fitting. I have a brand new oil filter on it and triple dog checked the O ring. Could a cracked block spray oil over there? There is literally no hoses or anything that contain oil. So bizarre!
I do appreciate the help and suggestions!!
I do appreciate the help and suggestions!!
kinger
VIP Member
What is that designed hole on the waterpump smack in the middle of my oil trail?
- Joined
- Jun 1, 2004
- Messages
- 7,734
- Location
- sudbury on
- Country
- Canada
- Snowmobile
- 2016 apex xtx
2011 apex xtx
2009 phaser rtx/x
1997 et410t/r
1988 vk 540
most likely the weep hole for the coolant to indicate the seals have failed.
