Can anyone tell me which diagram the choke lever and bolt, etc is on? I have looked at all of them I think from 2003 to 2005??? Can't find them?
03RX1-ER-LE
Bleed BLUE
- Joined
- Feb 22, 2008
- Messages
- 1,616
- Reaction score
- 1,266
- Points
- 1,478
- Location
- M-Th Livonia Mich F-S Oscoda Mich
- Country
- USA
- Snowmobile
- 2011 Apex XTX 12,497 miles
2009 Apex ER 8,169 miles
2016 Sport Haven 12 foot Hybrid trailer
Tow Vehicle
2022 F-150 Super Crew 4x4 2.7L EcoBoost
2021 Wolverine X4
- LOCATION
- Livonia Michigan
There is no break down, sold as an assembly. However I needed some parts myself and Kevin at Port Yamaha thought he recalled a quad had the same set up a looked up a big bear (I think) and was able to get individual parts from the quad parts book. Thanks again Kevin!
RXMax
Expert
That is what my dealer found as well! Had to order the individual parts from a 2005 Kodiak...
RedRocket
TY 4 Stroke Junkie
Technically, it's referred to as a "Starter Plunger" since it does not "choke" the air going into the carb like the old style chokes.
This first page from the 2003 RX-1 Service Manual shows the "Starter Plunger Link" (#3) and the Spring (#7). Pg 232 of 330

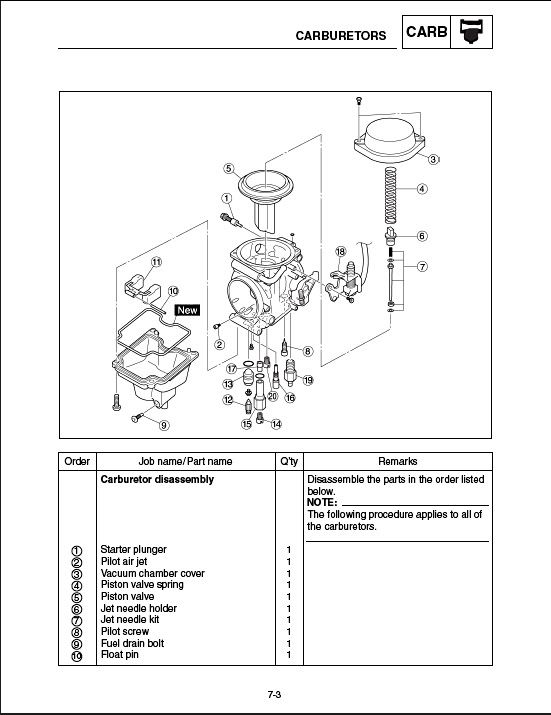

The next page shows the individual Starter Plunger in the carb: Pg 233 of 330
Click thumbnails for larger images.
The bolt and washer from Port Yamaha's site:
Ref #----Part Name-----------------# Req-------Price
52--SCREW--4XV-24453-00-00-------4-------$0.62
53--PACKING--4NK-14327-00-00-----8-------$0.76
I wonder if the "Starter set" #9 for $22.30 comes with the link arm or just the plungers...?
9--STARTER SET--4SV-1410A-00-00-------1-------$22.30
This first page from the 2003 RX-1 Service Manual shows the "Starter Plunger Link" (#3) and the Spring (#7). Pg 232 of 330
The next page shows the individual Starter Plunger in the carb: Pg 233 of 330
Click thumbnails for larger images.
The bolt and washer from Port Yamaha's site:
Ref #----Part Name-----------------# Req-------Price
52--SCREW--4XV-24453-00-00-------4-------$0.62
53--PACKING--4NK-14327-00-00-----8-------$0.76
I wonder if the "Starter set" #9 for $22.30 comes with the link arm or just the plungers...?
9--STARTER SET--4SV-1410A-00-00-------1-------$22.30
04rxw10
Lifetime Member
- Joined
- Jan 28, 2008
- Messages
- 792
- Reaction score
- 7
- Points
- 823
- Location
- Lisbon Falls Maine
- Website
- androscogginubm.org
I belive they are looking for the lever that is on the left hand side of the bars.
03RX1-ER-LE
Bleed BLUE
- Joined
- Feb 22, 2008
- Messages
- 1,616
- Reaction score
- 1,266
- Points
- 1,478
- Location
- M-Th Livonia Mich F-S Oscoda Mich
- Country
- USA
- Snowmobile
- 2011 Apex XTX 12,497 miles
2009 Apex ER 8,169 miles
2016 Sport Haven 12 foot Hybrid trailer
Tow Vehicle
2022 F-150 Super Crew 4x4 2.7L EcoBoost
2021 Wolverine X4
- LOCATION
- Livonia Michigan
I needed the wave washer for holding the lever tension/position, and after dropping it
and never finding it (went to washer heaven) not wanting to buy the whole assembly for a .02 part.Port helped out.
and never finding it (went to washer heaven) not wanting to buy the whole assembly for a .02 part.Port helped out.
Len Todd
TY 4 Stroke God
Your going to have to ask a dealer for these. Sometimes they can call Yamaha and get these parts individually. Try Port.
RXMax
Expert
2005 450 Kodiak parts are the exact match. they have a break out on the ATV fiche but not on the snowmobile fiche. Some dealers might want to try and sell you the whole control...
