The original dual spring will damage the shock body. That plastic coupler/slider between the dual spring will wear a portion of your threads, and the shock body!
Another fact about that shock. Must change out that bottom shaft after 2 seasons. That aluminum solid shaft will wear on the shock eye spot. My buds 17 RTX was worn so bad that it damaged the eye on his shock. Turned it egg shape and had to have components replaced pin that shock. I am replacing again this season. It will be my third counting the original.
My shock is out being rebuilt otherwise I would take a pic of the wear area caused by that factory dual spring set up.
I took some OD and ID measurements of the two springs for comparison. Actually 3 springs.
Stingray 2 1/2” OD 1 13/16 ID
Large stock 2 5/8” OD. 1 15/16 ID
Small stock 2 1/4” OD 1 7/8 ID
Stingray is shorter then original set up.
And measurements are done with tape measure, nothing too critical, just observing!
Edited large shock ID from 5/16 to correct of 15/16.
Attachments
ssgzag15
Extreme
I am not a heavy rider (170ish), but I ride this thing like a Baja Trophy Truck. This swap is part of my process to get more transfer, and lighten up the front end, as the stock settings lend themselves to zero ski lift and a heavy front end feel. I need to carry the front end over the rough stuff, which in turn smashes the rear skid into the face of the mogul. The stock progressive spring blows through the first couple inches immediately and makes the rear end rebound violently, kicking up the whole rear of the sled. I have moved the rear pivots to the upper holes, done all the BOP upgrades to the rear suspension to bullet-proof her as much as possible. Will do more R&D as the season progresses.
![](/styles/TYLifeMember.gif)
![](/styles/vip.gif)
jonlafon1
Lifetime Member
- Joined
- Aug 18, 2014
- Messages
- 4,103
- Age
- 50
- Country
- USA
- Snowmobile
- 2022 Sidewinder LTX_SE
2024 Catalyst RXC
2017 Sidewinder LTX-SE. 11750 miles (SOLD)
StingraysssdcdcSo what spring do you reccomend for a 250lb Ish rider? I have my skid out right now for other upgrades. I'm also running the snowtracker aggressives and I know the instructions says to take some pressure off it also.
![](/styles/TYLifeMember.gif)
![](/styles/vip.gif)
jonlafon1
Lifetime Member
- Joined
- Aug 18, 2014
- Messages
- 4,103
- Age
- 50
- Country
- USA
- Snowmobile
- 2022 Sidewinder LTX_SE
2024 Catalyst RXC
2017 Sidewinder LTX-SE. 11750 miles (SOLD)
Cannondale on here sells them and is a good source(info) of shocks and springs
![](/styles/TYLifeMember.gif)
![](/styles/vip.gif)
jonlafon1
Lifetime Member
- Joined
- Aug 18, 2014
- Messages
- 4,103
- Age
- 50
- Country
- USA
- Snowmobile
- 2022 Sidewinder LTX_SE
2024 Catalyst RXC
2017 Sidewinder LTX-SE. 11750 miles (SOLD)
Triple Rate Spring [Front Track] – Raptor Performance Shocks
![www.raptorshocks.com](/proxy.php?image=https%3A%2F%2Fwww.raptorshocks.com%2Fwp-content%2Fuploads%2F2017%2F10%2Fcropped-favicon-raptor-32x32.png&hash=176d2baddcce90b66ea0d8a17f141ca5&return_error=1)
Like this one also.. Ran this on 17 SE 137" for 10K.. I weigh 225 dressed and riding.
![](/styles/vip.gif)
twyztid
VIP Member
- Joined
- Feb 14, 2011
- Messages
- 865
- Location
- Middleville, MI
- Country
- USA
- Snowmobile
- 2017 Sidewinder LTX SE - TD Power Trail, CAI, 3" Super Quiet
2012 RS Vector
2006 Apex GT
- LOCATION
- Middleville, MI
I tried the Stingray spring on my 15 Viper LTX and wasn't super impressed. I am sure it was better than the stock 135-lb spring on that sled but it still bottomed out a few times (and I am not a big guy... 185 lbs). I got a 17 Sidewinder LTX SE last February and kept the 90/250 stock center shock spring and it is a LOT better, IMO.
![](/styles/vip.gif)
DMCTurbo
VIP Member
- Joined
- Nov 12, 2005
- Messages
- 2,759
- Age
- 51
- Location
- Val Caron, Ontario
- Country
- Canada
- Snowmobile
- 2017 Sidewinder XTX LE 137
I run the CAT 160/260 spring
![](/styles/TYLifeMember.gif)
![](/styles/vip.gif)
jonlafon1
Lifetime Member
- Joined
- Aug 18, 2014
- Messages
- 4,103
- Age
- 50
- Country
- USA
- Snowmobile
- 2022 Sidewinder LTX_SE
2024 Catalyst RXC
2017 Sidewinder LTX-SE. 11750 miles (SOLD)
Yea I don't know the numbers on that raptor triple rate spring.. I felt the sit in drop/the first number(90) on that stocker was to weak.. everyone likes different levels of steering effort, bite in corners, etc.. That stocker spring @ 90 i bet is just about perfect at your weight..I tried the Stingray spring on my 15 Viper LTX and wasn't super impressed. I am sure it was better than the stock 135-lb spring on that sled but it still bottomed out a few times (and I am not a big guy... 185 lbs). I got a 17 Sidewinder LTX SE last February and kept the 90/250 stock center shock spring and it is a LOT better, IMO.
Last edited:
![](/styles/vip.gif)
KillerBee
VIP Member
- Joined
- Jan 1, 2010
- Messages
- 71
- Location
- Waukesha WI
- Country
- USA
- Snowmobile
- 2018 Sidewinder LTX LE 50th

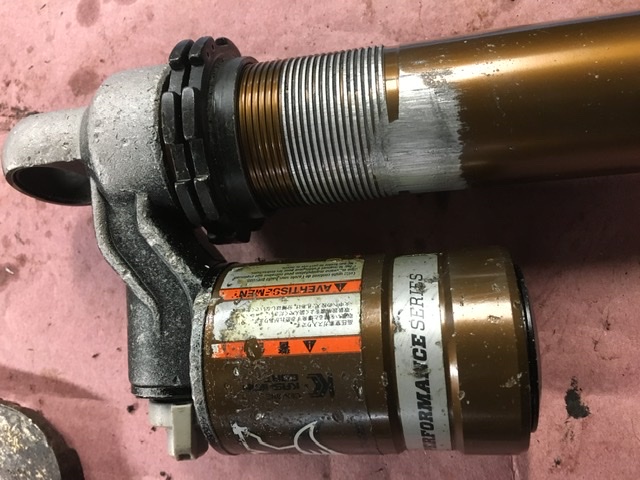

This is the wear I had under that coupler. Shock was replaced under warranty. Then got a straight rate spring from Cannondale and problem solved.
![](/styles/TYLifeMember.gif)
![](/styles/vip.gif)
jonlafon1
Lifetime Member
- Joined
- Aug 18, 2014
- Messages
- 4,103
- Age
- 50
- Country
- USA
- Snowmobile
- 2022 Sidewinder LTX_SE
2024 Catalyst RXC
2017 Sidewinder LTX-SE. 11750 miles (SOLD)
Looks like you rode in some snirt and rocky conditions.View attachment 163382
This is the wear I had under that coupler. Shock was replaced under warranty. Then got a straight rate spring from Cannondale and problem solved.
Motorhead
TY 4 Stroke God
- Joined
- Apr 20, 2003
- Messages
- 2,091
- Location
- Augusta, Maine
- Country
- USA
- Snowmobile
- 2017 SW LTX-LE
- LOCATION
- Augusta ME
Yep, a well known problem with that dual spring. Mine is a longer wear pattern then yours, but not so deep!View attachment 163382
This is the wear I had under that coupler. Shock was replaced under warranty. Then got a straight rate spring from Cannondale and problem solved.
My buddies was as deep as yours, but also a longer wear pattern!
That’s why I went with Stingray, hoping to avert more damage to my shock!
What straight Rate spring did you get from Cannondale, if you don’t mind my asking?
Phatboyc
TY 4 Stroke Master
- Joined
- Apr 2, 2007
- Messages
- 1,035
- Location
- Ottawa, Ontario
- Country
- Canada
- Snowmobile
- 2022 Sidewinder
Looks like you rode in some snirt and rocky conditions.
After seeing that I think running the shock upside down is a good idea regardless. Less crap coming back from the track being so close then hit reservoir/head. Should provide easier access to 3 clicks adjuster being down close to the rails.
The rear shock is upside down might as well match?
![](/styles/TYLifeMember.gif)
![](/styles/vip.gif)
jonlafon1
Lifetime Member
- Joined
- Aug 18, 2014
- Messages
- 4,103
- Age
- 50
- Country
- USA
- Snowmobile
- 2022 Sidewinder LTX_SE
2024 Catalyst RXC
2017 Sidewinder LTX-SE. 11750 miles (SOLD)
Not so sure you can run it any other way??? I'm not used to clicker on middle shock, but i thought it had to be run(clicker shock) "upside down" as shown by the pic i posted ?After seeing that I think running the shock upside down is a good idea regardless. Less crap coming back from the track being so close then hit reservoir/head. Should provide easier access to 3 clicks adjuster being down close to the rails.
The rear shock is upside down might as well match?
![](/styles/vip.gif)
twyztid
VIP Member
- Joined
- Feb 14, 2011
- Messages
- 865
- Location
- Middleville, MI
- Country
- USA
- Snowmobile
- 2017 Sidewinder LTX SE - TD Power Trail, CAI, 3" Super Quiet
2012 RS Vector
2006 Apex GT
- LOCATION
- Middleville, MI
The Stingray spring is a single-rate 160-lb spring. May be better for making the front end light but a 160-lb rate isn't enough to keep it from bottoming out in the big stuff.Yea I don't know the numbers on that stingray spring.. I felt the sit in drop/the first number(90) on that stocker was to weak.. everyone likes different levels of steering effort, bite in corners, etc.. That stocker spring @ 90 i bet is just about perfect at your weight..
![](/styles/TYLifeMember.gif)
![](/styles/vip.gif)
jonlafon1
Lifetime Member
- Joined
- Aug 18, 2014
- Messages
- 4,103
- Age
- 50
- Country
- USA
- Snowmobile
- 2022 Sidewinder LTX_SE
2024 Catalyst RXC
2017 Sidewinder LTX-SE. 11750 miles (SOLD)
160 okay.. Yea I usually ride early morning trails and they groom EVERY night. Not much bottoming ! I could see that 160 being a bit soft on rough stuff.. I just had 8 injections in my back so you can guess how I ride when things get bad..The Stingray spring is a single-rate 160-lb spring. May be better for making the front end light but a 160-lb rate isn't enough to keep it from bottoming out in the big stuff.
