Ulmer Racing
FX Nytro Inside Look!
Disclaimer: This is a preproduction unit and things are subject to change.
Here at Ulmer Racing we were given the oppurtunity to take an inside look at the new FX Nytro! Yamaha did a great job at giving us more room and easier access to the normal every day parts! By removing the three (3) main body panels you can get to any of the general maintenance items on the sled without any hassles!
Hood Removal:

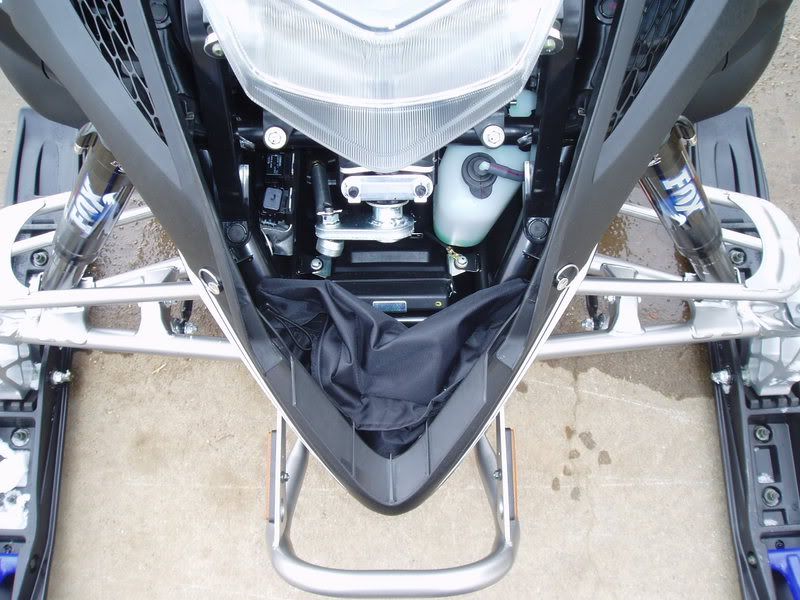

To remove the hood there are a total of four (4) ¼ turn dsuz fasteners that must be loosened allowing removal of the hood. There are two tabs that must slide out from under the gauge cluster allowing removal of the hood. After removing the hood there is access to the coolant level, overflow bottle, storage, and spare belt area of the sled.
Chain case Side Panel Removal:
To remove the side panel there are a total of five (5) ¼ turn dsuz fasteners that must be loosened allowing the removal of the side panel. Also on the front of side panel is two tabs that must interlock correctly with the belly pan before the side panel can be fully installed onto the sled after removal. This is also true for the rear of the side panel by the gas tank with a tab, which must be latched as well. After removing the side panel you are allowed access to the battery, chain case fluid, and engine oil.
Clutch Side Panel Removal:
To remove the side panel there are a total of five (5) ¼ turn dsuz fasteners that must be loosened allowing the removal of the side panel. Also on the front of side panel is two tabs that must interlock correctly with the belly pan before the side panel can be fully installed onto the sled after removal. This is also true for the rear of the side panel by the gas tank with a tab, which must be latched as well. After removing the side panel you are allowed access to the primary clutch, secondary clutch, and spark plugs.
Lower Panel Removal:
***Sorry guys, I forgot to take a picture of this area.***
To remove the bottom panel you must remove the fasteners and slide the panel off. Once the lower panel is removed you have access to the oil filter and the crank case drain plug as well.
FX Nytro Inside Look!
Disclaimer: This is a preproduction unit and things are subject to change.
Here at Ulmer Racing we were given the oppurtunity to take an inside look at the new FX Nytro! Yamaha did a great job at giving us more room and easier access to the normal every day parts! By removing the three (3) main body panels you can get to any of the general maintenance items on the sled without any hassles!
Hood Removal:
To remove the hood there are a total of four (4) ¼ turn dsuz fasteners that must be loosened allowing removal of the hood. There are two tabs that must slide out from under the gauge cluster allowing removal of the hood. After removing the hood there is access to the coolant level, overflow bottle, storage, and spare belt area of the sled.
Chain case Side Panel Removal:
To remove the side panel there are a total of five (5) ¼ turn dsuz fasteners that must be loosened allowing the removal of the side panel. Also on the front of side panel is two tabs that must interlock correctly with the belly pan before the side panel can be fully installed onto the sled after removal. This is also true for the rear of the side panel by the gas tank with a tab, which must be latched as well. After removing the side panel you are allowed access to the battery, chain case fluid, and engine oil.
Clutch Side Panel Removal:
To remove the side panel there are a total of five (5) ¼ turn dsuz fasteners that must be loosened allowing the removal of the side panel. Also on the front of side panel is two tabs that must interlock correctly with the belly pan before the side panel can be fully installed onto the sled after removal. This is also true for the rear of the side panel by the gas tank with a tab, which must be latched as well. After removing the side panel you are allowed access to the primary clutch, secondary clutch, and spark plugs.
Lower Panel Removal:
***Sorry guys, I forgot to take a picture of this area.***
To remove the bottom panel you must remove the fasteners and slide the panel off. Once the lower panel is removed you have access to the oil filter and the crank case drain plug as well.
sxmatt
Pro
Nice post!!!!
Where is the oil filter? How easy is it to get to?
Thanks
Matt
Where is the oil filter? How easy is it to get to?
Thanks
Matt
- Joined
- Apr 17, 2003
- Messages
- 5,348
- Location
- Menno, SD
- Website
- www.ulmerracing.com
- Country
- USA
- Snowmobile
- 2014 Yamaha SR Viper LTX, 2014 Yamaha SR Viper RTX SE, 2015 Yamaha SR Viper MTX SE 162 (turbo), 2015 Yamaha SR Viper MTX SE 153
- LOCATION
- Menno, SD
- WEBSITE
- www.ulmerracing.com
Srxspec said:
The oil filter is very easy to get to. You simply remove the lower inspection panel and it is easily accessed right from the bottom. It is much simpler than the RX-1 or Apex models.
fx-treme
Expert
- Joined
- Jan 7, 2005
- Messages
- 225
- Country
- USA
- Snowmobile
- 2014 SR VIPER LTX SE
Very nice report. thanks for all the info. I'm glad they made it easy to get to the oil filter.
RTX
TY 4 Stroke God
- Joined
- Mar 31, 2005
- Messages
- 1,796
- Location
- massachusetts / maine
- Country
- USA
- Snowmobile
- 2014 viper rtx
2006 apex rtx
Thank You very much for the pix and info!!!
The more i see of this sled the more i am liking it.
The more i see of this sled the more i am liking it.
Nice post and pics. I like how it looks w/o the hood on it so maybe a black hood would look great!!
Yama-Crazy
VIP Member
Same here this sled is realy starting to get my attension the more I see and hear about it..RTX said:
SharkAttak
TY 4 Stroke God
nice job Allen, yamaha seems to make it alot easier for general maintenace, what spark plugs are they using for the nytro
GypsyRoots
Expert
You mean we can get to the spark plugs without taking the seat and fuel tank off???!?!?!?
That was a nice touch...
I also like the fact that you no longer need a tool to check the oil!!!!
Nice post!
Thanks!
That was a nice touch...
I also like the fact that you no longer need a tool to check the oil!!!!
Nice post!
Thanks!
SharkAttak
TY 4 Stroke God
GypsyRoots said:You mean we can get to the spark plugs without taking the seat and fuel tank off???!?!?!?
That was a nice touch...
I also like the fact that you no longer need a tool to check the oil!!!!
Nice post!
Thanks!
no, wanted to know if they are using the cr10ek's, if not there's another 2-3 h.p.
GypsyRoots
Expert
SharkAttak said:
I was just refering to one of the pictures above, not trying to answer your question...
I do not know what type spark plugs it uses, heck, I don't know anything about the new sled...
SharkAttak
TY 4 Stroke God
GypsyRoots said:
i hear ya, it seems as though yamaha is really listening to us on ty, cause the oil filter, spark plugs and everything else is easy to get to, the more i see it the more i want one
GypsyRoots
Expert
I just hope they put the bigger engine on a Venture Lite, or redesign the RS Venture to the new riding position.
I can't imagine how much fun it would be to have 50 mor hp on my sled...
I agree with you though, I really believe Yamaha is trying listen and put out products that the consumers want. Good on them & good for us!
I can't imagine how much fun it would be to have 50 mor hp on my sled...
I agree with you though, I really believe Yamaha is trying listen and put out products that the consumers want. Good on them & good for us!
RTx99
Veteran
so does it rip pretty good or what will us apex riders that came fom revs be happy with this weapon!!
Thrusted Vector
Expert
Gypsy,how did you make out with your Venture?Haven't heard or seen anything for a while.
