Torque specs please

[thunderbolt]

Can anybody give me the proper torque spec on the main primary clutch bolt , I believe its a 22 mm head . also the six ten mm head bolts for the cover . Now for the secondary main bolt and the three helix nuts .
And yes Im doing a clutch kit lol



[XP123]

Can anybody give me the proper torque spec on the main primary clutch bolt , I believe its a 22 mm head . also the six ten mm head bolts for the cover . Now for the secondary main bolt and the three helix nuts .
And yes Im doing a clutch kit lol

The primary clutch bolt is 108 ft lbs then loosen nut and torque to 43 Ft lbs. the secondary bolt is also 43 ft lbs.



[DMCTurbo]

Primary bolt torque to 108ft/lbs, loosen and retorque to 43ft/lbs. Secondary torque 43ft/lbs.



[thunderbolt]

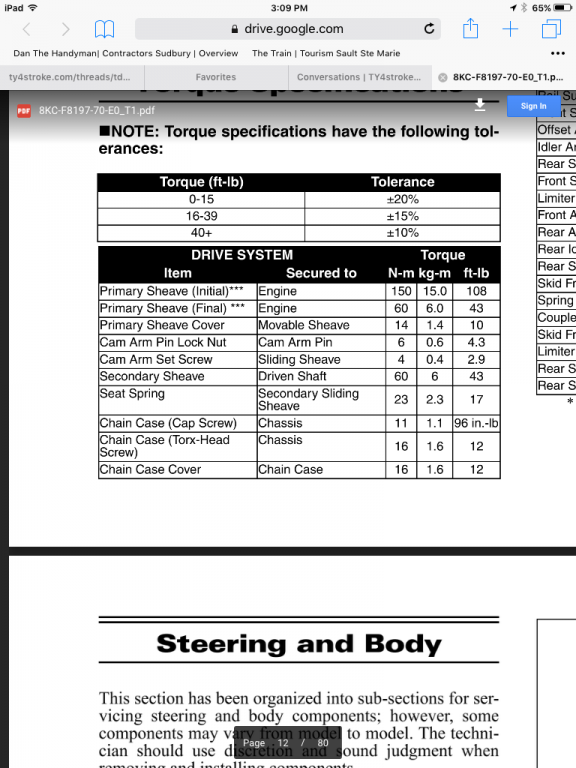

View attachment 133300

Primary bolt torque to 108ft/lbs, loosen and retorque to 43ft/lbs. Secondary torque 43ft/lbs.

Thats awsome thank you so much



[stevewithOCD]

I had to get another torque wrench to get that primary to 108 pounds.

SHHHHHHH

My boss is still looking for it!
