I picked up a used Ohlins rear shock to install in my 06 RTX. The issue I am having is there does not seem to be a white connector to plug the sub-harness into on the sled. It was my belief that all Apex's had the ability to plug and play the Ohlins shock as an upgrade.
See pics for missing connector.. Any thoughts on a work around?
Paddy...
See pics for missing connector.. Any thoughts on a work around?
Paddy...
I installed the rear Ohlins on the weekend, I looked one last time for the sled side connector before putting all the plastics back on. My work around for this season is to tape up the connector and zip tie the lead out of the way on the shock. With any luck I will figure out how to get this shock working soon.
Attachments
Stubbs
TY 4 Stroke Master
- Joined
- Nov 7, 2006
- Messages
- 1,120
- Age
- 44
- Location
- Uxbridge, On, Can.
- Country
- Canada
- Snowmobile
- ‘16 Apex XTX with 137” Mono II
+ other gooodies
- LOCATION
- Uxbridge ON
Did you acquire the sub-lead that runs from the connector under the hood to the connector on the shock itself? I've yet to see a 06-10 Apex without the connector coming out of the right side of the sled's body harness...
snowbiscuit
Expert
Did the same with my 06 RTX.....the cable was there, it had a white protective plug that had to be removed in order to plug in your shock cable
kinger
VIP Member
If you have to remove the gas tank its buried in there near where you took the picture.
Winderallday!
VIP Member

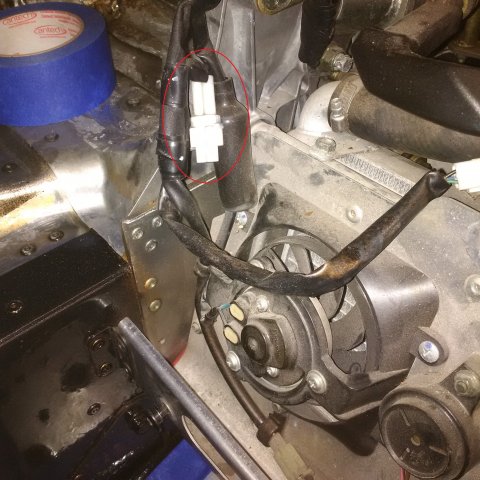

Could be bundled in the harness with the rubber boot over it adjacent to the cooling fan, peel it back and have a look.
Thanks for the tips guys.
Yes, I have the sub lead harness. My VIN ends in 1505 so it wasn't the first sled built, therefore it should have the shock connector. I will check again for the sled side connector to see if it is tucked up between the tank and the chassis.
Yes, I have the sub lead harness. My VIN ends in 1505 so it wasn't the first sled built, therefore it should have the shock connector. I will check again for the sled side connector to see if it is tucked up between the tank and the chassis.
Winderallday!
VIP Member
Fairly sure it is closer to the area above the chaincase rather than the oil tank if that is what you were referring to.
HABS 1
TY 4 Stroke Junkie
- Joined
- Oct 22, 2015
- Messages
- 571
- Age
- 45
- Location
- corunna,ontario
- Country
- Canada
- Snowmobile
- 2006 apex gt,136 Hartman ext,dalton clutched,full excel exhaust,yamiheaters,cna pro ex white skis,hid lights,mtx riser,1.5 intense track,etc,etc!---2021 sidewinder xtx se
i have herd that if sled didnt come with it gage cluster wont operate the adjustment, would have to be gage out of a gt , ye or ne?
Stubbs
TY 4 Stroke Master
- Joined
- Nov 7, 2006
- Messages
- 1,120
- Age
- 44
- Location
- Uxbridge, On, Can.
- Country
- Canada
- Snowmobile
- ‘16 Apex XTX with 137” Mono II
+ other gooodies
- LOCATION
- Uxbridge ON
Ne. The gauges are modular. The same part # was used for GT, RTX, and ER.
HABS 1
TY 4 Stroke Junkie
- Joined
- Oct 22, 2015
- Messages
- 571
- Age
- 45
- Location
- corunna,ontario
- Country
- Canada
- Snowmobile
- 2006 apex gt,136 Hartman ext,dalton clutched,full excel exhaust,yamiheaters,cna pro ex white skis,hid lights,mtx riser,1.5 intense track,etc,etc!---2021 sidewinder xtx se
good to know!!
I found the sub lead very quickly on an 07 RTX
