Barn of Parts Heavy Duty SR Viper 3/16" Aluminum Skid Plate

[hibshman25]

Just about got this product finished up. To install the skid plate you will remove panels "A" and "B" as in picture below. The new skid plate has shims riveted to it to account for the panels being removed. The new skid plate then mounts using (4) holes marked with "X" in picture. The two holes in the rear are countersunk.

Most vipers we've worked have panels A and B already mangled, so rather than requiring customers to flatten their existing plates out we felt it was better to do away with them.

At 3/16" thick, this plate will provide superior protection to the front tunnel cooler and engine oil pan, and still be easily removable for oil changes!

Final retail is going to be $85 for natural finish.



[09nytro]

I can't see the image!!!



[hibshman25]

I can't see the image!!!

They are showing up when I view the post. I posted pics in my website blog too. Maybe try that if you can't see them here.



[alexm2816]

Struggling to see it on the bop site or on here as well.

EDIT:

I'm dumb. http://www.barnofparts.com/Blog----Updated-5-31-16.html



[hibshman25]

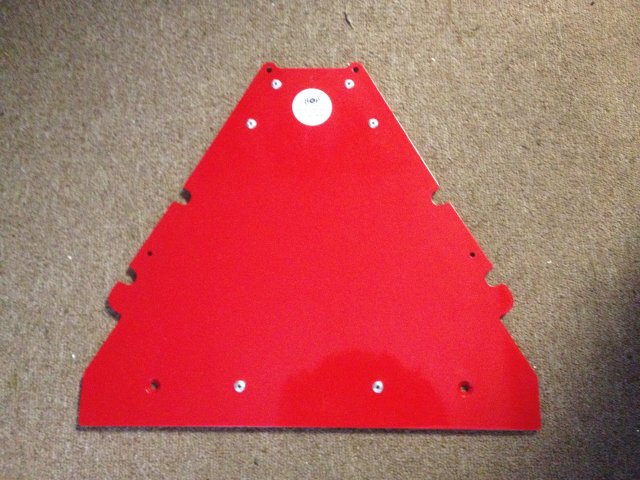

Here's one we just powder coated red for one customer.



[Mike P]

Just about got this product finished up. To install the skid plate you will remove panels "A" and "B" as in picture below. The new skid plate has shims riveted to it to account for the panels being removed. The new skid plate then mounts using (4) holes marked with "X" in picture. The two holes in the rear are countersunk.

Most vipers we've worked have panels A and B already mangled, so rather than requiring customers to flatten their existing plates out we felt it was better to do away with them.

At 3/16" thick, this plate will provide superior protection to the front tunnel cooler and engine oil pan, and still be easily removable for oil changes!

Final retail is going to be $85 for natural finish.

I can not see the images, will the plates fit 2014 RTX? How much testing have you done and how much do the plates weigh?



[MrSled]

Here's one we just powder coated red for one customer.

View attachment 120641

I see them just fine. Will this come off quick for oil changes?



[rebmo]

I see the red one but none from the first posting or the web pics.....



[cannondale27]

Same here. I just see the red one.



[MrSled]

Must be some kind of glitch. I am having my assistant admin check on the problem. Here are the pictures:



[MrSled]

Can you see the images now?



[super1c]

I couldnt before but can now. Hopefully same for everyone else



[Mike P]

Can you see the images now?

I can see the pics,
will the plates fit 2014 RTX? How much testing have you done and how much do the plates weigh?



[hibshman25]

I see them just fine. Will this come off quick for oil changes?

Yes. 4 bolts and it's off. nothing needs to be removed to get plate off other than the fasteners.



[cannondale27]

Yup looks good!
