Part number help

Hammer Down

Extreme
Joined
Oct 7, 2016
Messages
105
Age
50
Location
Loudon, NH
Country
USA
Snowmobile
Sidewinder STX-DX 2017
Apex XTX 2012

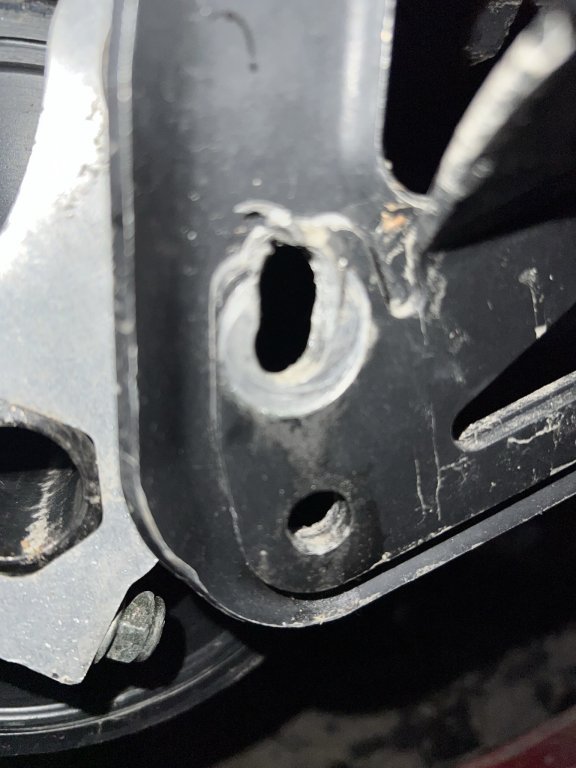

part# help! the bolt hole oblonged and the bolt missing from rear skid. Looking for part# for the bracket and bolt. Looked at the fiche but unsure. It’s the right side when sitting on the sled. Rear skid mounting bolt and bracket. Also is the bottom hole okay to use? If so how does this change the ride?


Attachments

  • BA3D6BF8-B274-4B04-B37D-DC748226B798.jpeg
    64.3 KB · Views: 12

WinderFab

VIP Member
Joined
Mar 1, 2009
Messages
1,505
Age
43
Location
Woodbridge, ON
Country
Canada
Snowmobile
2020 Sidewinder Ltx GT
I would stick with the top hole.

What year and model is your sled?


Hammer Down

Extreme
Joined
Oct 7, 2016
Messages
105
Age
50
Location
Loudon, NH
Country
USA
Snowmobile
Sidewinder STX-DX 2017
Apex XTX 2012
2017 STX DX 137 I think same as LTX-DX and LTX-LE 137


WinderFab

VIP Member
Joined
Mar 1, 2009
Messages
1,505
Age
43
Location
Woodbridge, ON
Country
Canada
Snowmobile
2020 Sidewinder Ltx GT
I’m getting #8JY-F1954-00-00 for the bracket and #8JP-RA196-00-00 for the bolt.


Hammer Down

Extreme
Joined
Oct 7, 2016
Messages
105
Age
50
Location
Loudon, NH
Country
USA
Snowmobile
Sidewinder STX-DX 2017
Apex XTX 2012
Thanks looks about right. what if I just tried to change mounting to bottom hole?


WinderFab

VIP Member
Joined
Mar 1, 2009
Messages
1,505
Age
43
Location
Woodbridge, ON
Country
Canada
Snowmobile
2020 Sidewinder Ltx GT
I’m not sure what the effects would be on a 2017, my 2020 came with suspension on lower hole, I ended up raising it to the upper hole and it lighten the steering considerably so I would think it would add weight to the skis/steering.


jonlafon1

Lifetime Member
Joined
Aug 18, 2014
Messages
2,525
Age
47
Location
Mount Morris, WI. Chaney Lake, Upper MI eh!
Country
USA
Snowmobile
2022 Sidewinder LTX_SE

2021 Arctic Cat 8000

2017 Sidewinder LTX-SE. 11750 miles (SOLD)
part# help! the bolt hole oblonged and the bolt missing from rear skid. Looking for part# for the bracket and bolt. Looked at the fiche but unsure. It’s the right side when sitting on the sled. Rear skid mounting bolt and bracket. Also is the bottom hole okay to use? If so how does this change the ride?
Any idea why or how this happened? That’s crazy bad.


yamamarc

VIP Member
Joined
Sep 29, 2013
Messages
2,850
Location
Massey Ontario
Country
Canada
Snowmobile
2019 zr9000 Ltd
I repaired mine like this and no issues!
Way less work then drilling a millions rivets..lol

If you want more info or details pm me


Snoden

RIP-Logan-Dylan-Never forgotten!
Joined
Jan 28, 2017
Messages
410
Age
59
Location
Ohio
Country
USA
Snowmobile
18 Winder LTX 50th
16 SR Viper RTX (red)
02 SX Viper ER (red)
97 SX Vmax 600 (red)
Travis (Barn of Parts) also has a fix for this. Take a look.


Yamajon1

VIP Member
Joined
Nov 6, 2016
Messages
505
Location
Oshkosh Wisconsin
Country
USA
Snowmobile
2016 SR Viper RTX DX
Former Yamaha sleds:
2004 Venture 600 2002 SX Viper 700
1997 Vmax 600 SX 1994 Vmax 600 1989 Exciter
1986 Vmax 540 1986 Phaser 1981 SRX 440
After torquing with lock tight I mark all my suspension bolts with a black sharpie. I put a straight vertical line on the bolt head. Then you can glance over them pre ride and see if any have moved and if so re torque.


jonlafon1

Lifetime Member
Joined
Aug 18, 2014
Messages
2,525
Age
47
Location
Mount Morris, WI. Chaney Lake, Upper MI eh!
Country
USA
Snowmobile
2022 Sidewinder LTX_SE

2021 Arctic Cat 8000

2017 Sidewinder LTX-SE. 11750 miles (SOLD)
After torquing with lock tight I mark all my suspension bolts with a black sharpie. I put a straight vertical line on the bolt head. Then you can glance over them pre ride and see if any have moved and if so re torque.
I like that !! Thanks for your idea.
