While doing some testing up at Excell last season Aaron expressed the need for a belly pan protector. There were instances when the belts were blowing holes through the belly pan and then not rideable due to snow dust venting into clutch and belt area causing belt slippage.
With some input from Aaron I designed a protector. There are others on the market, but the idea of just sandwiching the foam and riveting a plate to the plastic panel just didn't suit me.
Below is a photo of what I have so far. I will be adding a rubber grommet and collar to the rear mount hole so vibration and stress is not contained within the guard itself. This should prevent stress cracks like the oil tank and radiator mount tabs that happened on early year apex and vector sleds.
Once completed these will be available from myself or Excell.
With some input from Aaron I designed a protector. There are others on the market, but the idea of just sandwiching the foam and riveting a plate to the plastic panel just didn't suit me.
Below is a photo of what I have so far. I will be adding a rubber grommet and collar to the rear mount hole so vibration and stress is not contained within the guard itself. This should prevent stress cracks like the oil tank and radiator mount tabs that happened on early year apex and vector sleds.
Once completed these will be available from myself or Excell.
thor452
Because I can
- Joined
- Jan 5, 2010
- Messages
- 3,029
- Location
- Shawano,WI 54166
- Country
- USA
- Snowmobile
- 2012 Apex XTX 2017 Sidewinder LTX-LE
good idea wish I had one for my apex last year
@123
Expert
nice !!! what price iWhile doing some testing up at Excell last season Aaron expressed the need for a belly pan protector. There were instances when the belts were blowing holes through the belly pan and then not rideable due to snow dust venting into clutch and belt area causing belt slippage.
With some input from Aaron I designed a protector. There are others on the market, but the idea of just sandwiching the foam and riveting a plate to the plastic panel just didn't suit me.
Below is a photo of what I have so far. I will be adding a rubber grommet and collar to the rear mount hole so vibration and stress is not contained within the guard itself. This should prevent stress cracks like the oil tank and radiator mount tabs that happened on early year apex and vector sleds.
Once completed these will be available from myself or Excell.
View attachment 129167
am from canada
DranttelSS
TY Advertiser
- Joined
- Oct 9, 2014
- Messages
- 917
- Age
- 58
- Location
- St. Peter MN
- Country
- USA
- Snowmobile
- 2007 Yamaha Attak
- WEBSITE
- www.dranttelsalesandservice.com
Good work Travis!
**sj**
Lifetime Member
nice work Travis
XP123
TY 4 Stroke Master
- Joined
- Dec 25, 2016
- Messages
- 1,494
- Age
- 68
- Location
- Chautauqua NY
- Country
- USA
- Snowmobile
- Sidewinder XTX LE 137
Looks like the guard will be moving with the engine.
ShootToThrill
VIP Member
That"s a nice piece!! My belt incident showed marks and whipping up high closer to the top of the shock mount. a little higher would be ideal.
Dieselxtx
TY 4 Stroke Junkie
- Joined
- Feb 21, 2016
- Messages
- 519
- Location
- Fox Lake, WI
- Country
- USA
- Snowmobile
- 2017 Sidewinder BTX LE
2012 Nytro XTX 1.75
X2 they are blowing out the front of the panel from what I saw just extend that up 2in and it will be perfect.That"s a nice piece!! My belt incident showed marks and whipping up high closer to the top of the shock mount. a little higher would be ideal.
looks good Travis. Any chance you can make it easily removable with enough dead space below to store a spare belt?
Byam
TY 4 Stroke Guru
X3. The one i have Is attached by the upper tab bolt. I have seen one whit a lots of duct tape closed to that bolt......X2 they are blowing out the front of the panel from what I saw just extend that up 2in and it will be perfect.
Mitch Desorcy
MAX PRO
- Joined
- May 6, 2014
- Messages
- 201
- Age
- 58
- Location
- Winnipeg Manitoba
- Country
- Canada
- Snowmobile
- 2014 Yamaha SR Viper LTX SE
Will that fit on a Viper?? I've had to replace 2 side panels because of blown belts.
hibshman25
Vendor
- Joined
- Sep 25, 2005
- Messages
- 2,851
- Age
- 40
- Location
- Lebanon, PA 17042
- Country
- USA
- Snowmobile
- 2017 sidewinder ltx dx
2018 snoscoot
Thanks for all the feedback. I plan to look into all the suggestions tomorrow.
The intent is to have one design that will also fit the viper as well.
The intent is to have one design that will also fit the viper as well.
Joe ltx-le
TY 4 Stroke God
- Joined
- Mar 26, 2015
- Messages
- 1,524
- Age
- 36
- Location
- Beaverbank-ns
- Country
- Canada
- Snowmobile
- 2017 sidewinder ltx-dx
When do you plan to have your product on the market ? For my winder this is a must .Thanks for all the feedback. I plan to look into all the suggestions tomorrow.
The intent is to have one design that will also fit the viper as well.
hibshman25
Vendor
- Joined
- Sep 25, 2005
- Messages
- 2,851
- Age
- 40
- Location
- Lebanon, PA 17042
- Country
- USA
- Snowmobile
- 2017 sidewinder ltx dx
2018 snoscoot

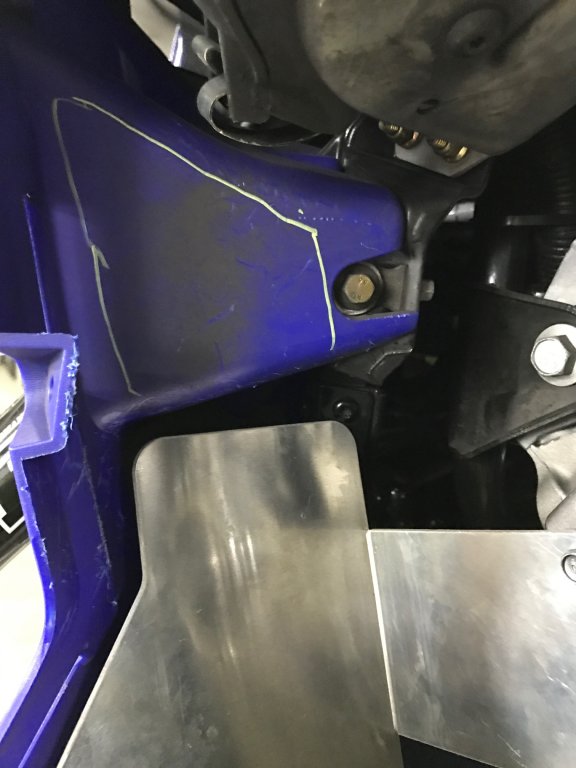

Is the area marked in yellow where you guys are seeing damage? Thinking the contour of side panel is slightly different between viper and sidewinder in this area. Perhaps I will make up a supplemental piece for both sleds that can rivet to the panel to protect this area. I have a viper being dropped off this afternoon and I will compare the two.
