I decided that since I was putting a different track in my new 2022 LTX I would install the BOP ungraded bearing also. Sled has zero miles so I want to start fresh with the bearing.
While doing so I made a few observations.
The new bearing fits MUCH tighter than the original one. I can slide the original one off by hand. When spinning the stock bearing on the shaft, the inner race was sliding on the shaft. BOP bearing need to be tapped on with a dead blow hammer.
You will need to split the caliper to install. There seems to be no way around it as the new collar length wont let the disc/caliper assembly to be installed as one. At least I couldn't do it.
I was determined to use the inner seal and plate. I fiddle farted around getting a seal that would fit then noticed a few things.

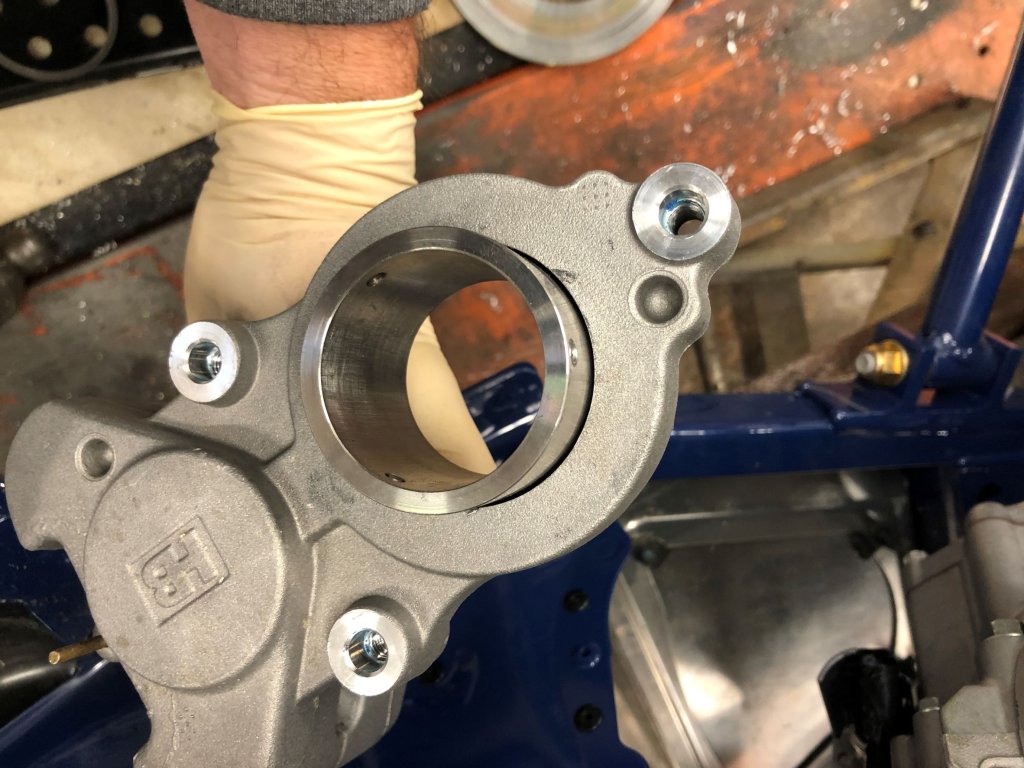

1. As Travis mentioned the size of the new collar does really protect the inner seal from debris so the need for a seal is debatable. See below picture
2. IF you are determined to use a seal then it seems to me that a seal would cover the set screws. In my mind that means installing the caliper and bearing WITHOUT the plate to set the shaft position with the set screws. Removing the caliper bolts, then installing the plate, reinstalling the caliper bolts. I thought about putting a slot in the bolt holes for the plate to make install a little easier but didn't want my caliper bolts only hitting half the surface of the plate possibly causing more problems.
I might over thought that one, its probably the clip that sets the shaft position.
In the end, I ditched the plate.
I also removed the set screws and took a drill and just barely put a small divot in the shaft that the set screws could bite on. I used red loc-tite on the set screws.
In all this seems to be a pretty good solution to the shaft problems many of these have experienced.
While doing so I made a few observations.
The new bearing fits MUCH tighter than the original one. I can slide the original one off by hand. When spinning the stock bearing on the shaft, the inner race was sliding on the shaft. BOP bearing need to be tapped on with a dead blow hammer.
You will need to split the caliper to install. There seems to be no way around it as the new collar length wont let the disc/caliper assembly to be installed as one. At least I couldn't do it.
I was determined to use the inner seal and plate. I fiddle farted around getting a seal that would fit then noticed a few things.
1. As Travis mentioned the size of the new collar does really protect the inner seal from debris so the need for a seal is debatable. See below picture
2. IF you are determined to use a seal then it seems to me that a seal would cover the set screws. In my mind that means installing the caliper and bearing WITHOUT the plate to set the shaft position with the set screws. Removing the caliper bolts, then installing the plate, reinstalling the caliper bolts. I thought about putting a slot in the bolt holes for the plate to make install a little easier but didn't want my caliper bolts only hitting half the surface of the plate possibly causing more problems.
I might over thought that one, its probably the clip that sets the shaft position.
In the end, I ditched the plate.
I also removed the set screws and took a drill and just barely put a small divot in the shaft that the set screws could bite on. I used red loc-tite on the set screws.
In all this seems to be a pretty good solution to the shaft problems many of these have experienced.
Last edited:
HABS 1
TY 4 Stroke Junkie
- Joined
- Oct 22, 2015
- Messages
- 566
- Age
- 45
- Location
- corunna,ontario
- Country
- Canada
- Snowmobile
- 2006 apex gt,136 Hartman ext,dalton clutched,full excel exhaust,yamiheaters,cna pro ex white skis,hid lights,mtx riser,1.5 intense track,etc,etc!---2021 sidewinder xtx se
ya ur rite, that new bearing fits real good , damn near don't need set screws! i installed the plate with a larger seal and u r correct, to do that... u must install everything n tightned down tap everything into place, tightned caliper again! n set set screws, then remove 3 caliper bolts install plate with seal and re snugg, definitely a little "farting" around forsure ! u got be hell bent on usin it! but it will work and close up the inside nicely!I decided that since I was putting a different track in my new 2022 LTX I would install the BOP ungraded bearing also. Sled has zero miles so I want to start fresh with the bearing.
While doing so I made a few observations.
The new bearing fits MUCH tighter than the original one. I can slide the original one off by hand. When spinning the stock bearing on the shaft, the inner race was sliding on the shaft. BOP bearing need to be tapped on with a dead blow hammer.
You will need to split the caliper to install. There seems to be no way around it as the new collar length wont let the disc/caliper assembly to be installed as one. At least I couldn't do it.
I was determined to use the inner seal and plate. I fiddle farted around getting a seal that would fit then noticed a few things.
1. As Travis mentioned the size of the new collar does really protect the inner seal from debris so the need for a seal is debatable. See below picture
2. IF you are determined to use a seal then it seems to me that a seal would cover the set screws. In my mind that means installing the caliper and bearing WITHOUT the plate to set the shaft position with the set screws. Removing the caliper bolts, then installing the plate, reinstalling the caliper bolts. I thought about putting a slot in the bolt holes for the plate to make install a little easier but didn't want my caliper bolts only hitting half the surface of the plate possibly causing more problems.
I might over thought that one, its probably the clip that sets the shaft position.
In the end, I ditched the plate.
I also removed the set screws and took a drill and just barely put a small divot in the shaft that the set screws could bite on. I used red loc-tite on the set screws.
In all this seems to be a pretty good solution to the shaft problems many of these have experienced.
View attachment 169170
