Tunnel Dammage Due to Ice

[1nc 2000]

The first foot of the tunnel was bowed up and half of the Louvres were also bent, I opened them back up. The tunnel needs more than 5 rivets to attach to the heat exchanger in my opinion.



[1nc 2000]

Here is pictures of the plates I used for reinforcement of my tunnel.
The first picture is cardboard cutouts to use as a template.

One filler plate and bottom plate.

This is the top stainless steel plate. Notice the angle up on the fwd end to strengthen it more.

Templates.



[1nc 2000]

I forgot to mention that my sled has only 5000 miles on it so check your tunnels and rivets.



[Turboflash]

Here is pictures of the plates I used for reinforcement of my tunnel.
The first picture is cardboard cutouts to use as a template.

View attachment 151070

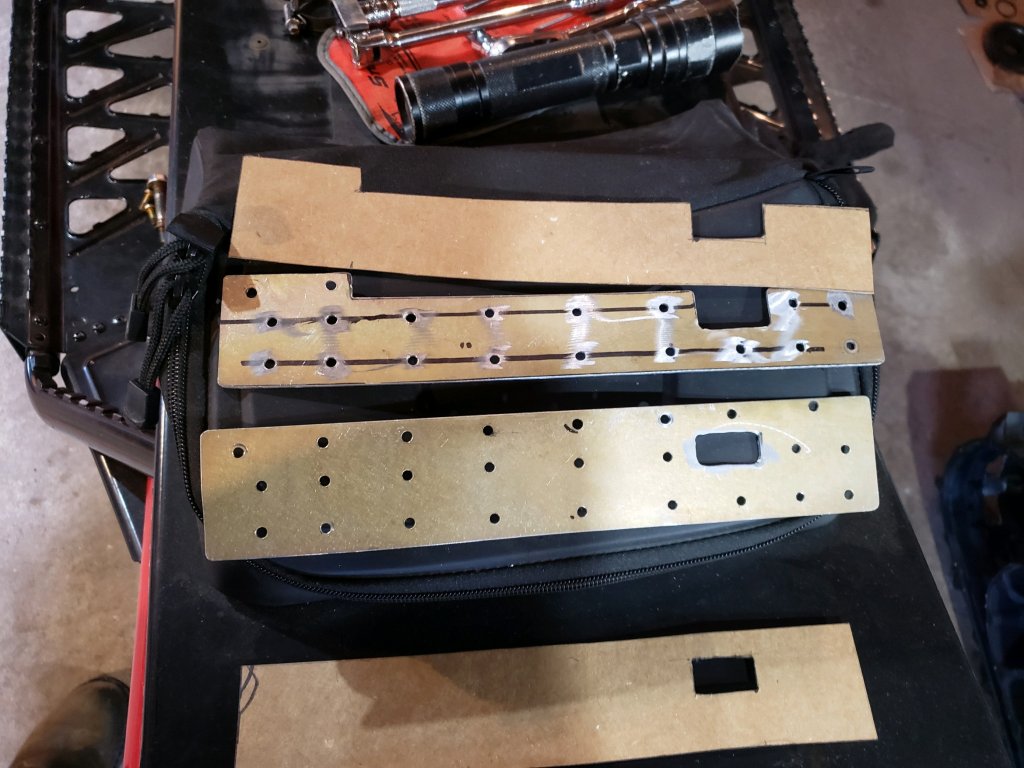

One filler plate and bottom plate.
View attachment 151071
This is the top stainless steel plate. Notice the angle up on the fwd end to strengthen it more.

View attachment 151072

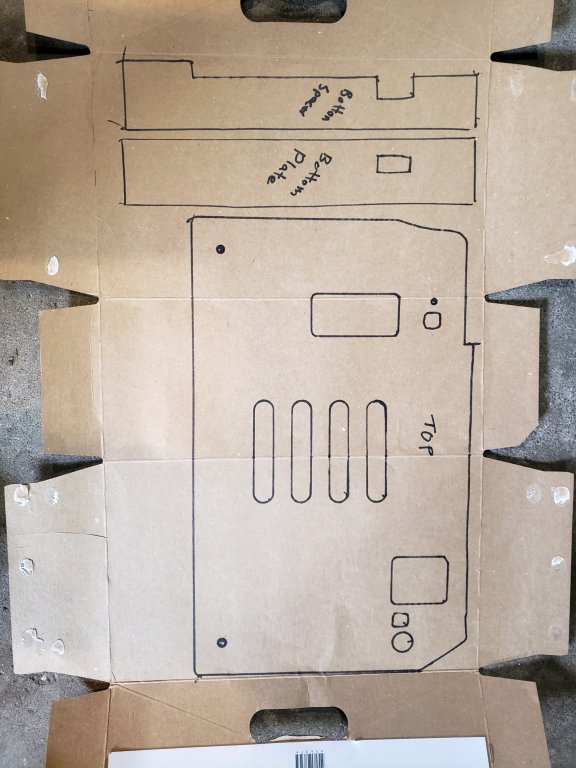

Templates.
View attachment 151073

Impressive!!



[Sevey]

How did you do the cut-outs so cleanly. You must have a plasma cutter ?
Looks good

MS



[cannondale27]

Inc do you have a DXF file for that?



[1nc 2000]

How did you do the cut-outs so cleanly. You must have a plasma cutter ?
Looks good

MS

I bought the stainless steel plate already cut out from a member in this thread. I had to drill to fit though.



[1nc 2000]

Inc do you have a DXF file for that?

No sir.



[1nc 2000]

Went out for a shakedown ride this past weekend after getting sled back together.
All went well except now I need to adjust suspension to keep the inside ski down in the corners. Didn't have that issue last year and didn't change the suspension any.
Feels good to out on the sled again.



[1nc 2000]

Here are some pictures of tunnel damage before repairs.

The snow will go between the tunnel and heat exchanger and get on your clutching. I was seeing water on my secondary and belt slip.



[beanie]

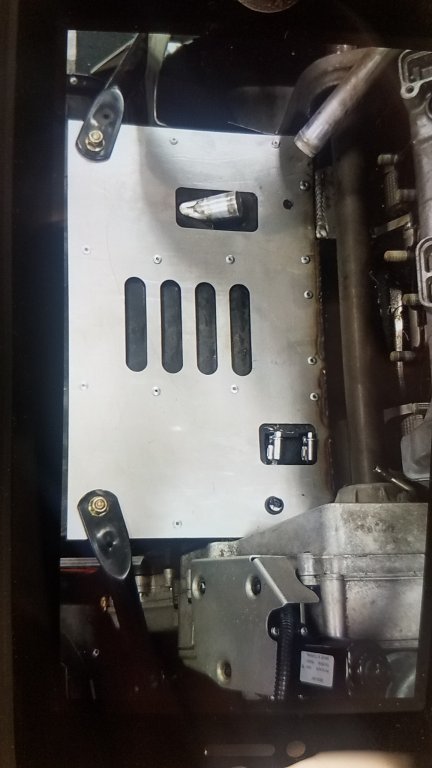

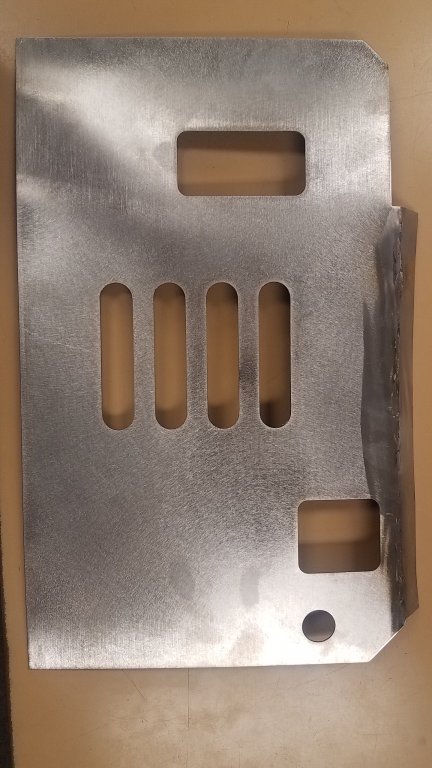

View attachment 147859 View attachment 147860 Here is a plate I designed and used to strengthen my tunnel. Most of the sidewinders I run with did this also. You still have to clear your tunnel of ice in the morning. I carry a small rubber hammer which works great.

Good day ,Do you still sell the tunnel plates for ice damage repair ??



[WinderFab]

Good day ,Do you still sell the tunnel plates for ice damage repair ??

I have a plate that I haven’t installed.



[craigwsrx]

I just sold the last one I had and having more made.



[beanie]

Just another Piss poor design from Yami CAT/ There is no possible way to remove built up ice fully near the front heat exchanger. They put 5 shitty rivets in a paper thin tunnel and expect them to hold right on the edge' I have a 40 year old Enticer 300 that has a stronger tunnel than my winder / There is just No excuse for this type of issue on on a 15k plus sled then put out a bullshit bulletin saying its not a warranty issue .I am about done with Yammy
