A small update. Decals removed, 19T gear installed, a-arm straightened and I also made all new spindle bushings.
Lots of cool projects going on so I figured I would update as well.
I made the mistake of going west last year, so I am changing the nytro up again.
Tunnel Cooler
After Blasting before powder coat
Fresh set of bushings
Frontend on

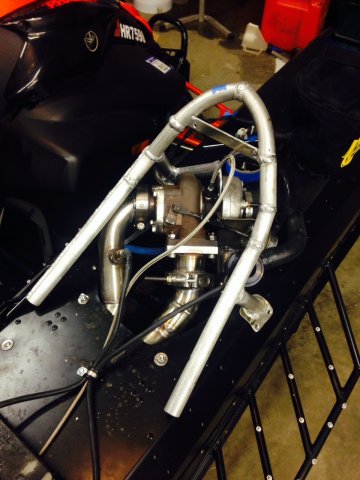

Starting on charge tube.
Mocked up
More to come.
I made the mistake of going west last year, so I am changing the nytro up again.
- '13 AC 153" Float Skid

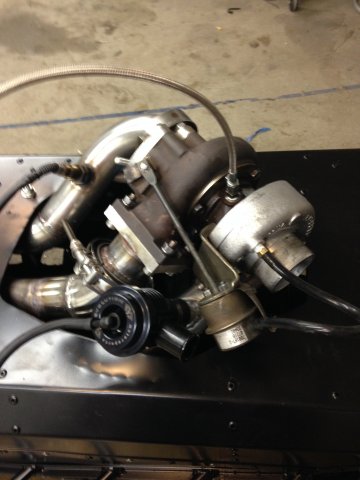

- Turbo
- Mountiantech Aarms
- Tunnel Cooler
- New Tunnel
- etc.
Tunnel Cooler
After Blasting before powder coat
Fresh set of bushings
Frontend on
Starting on charge tube.
Mocked up
More to come.
Attachments
Last edited:
The front cooler had to be moved forward to clear the bigger lug track. I was able to remove it from the sled by using a 90 degree air grinder to grind off the rivets from the inside and cutting the lower right coolant tube off.
It was a good thing I had to do this because after welding the lower right coolant intake closed I pressure tested it and found a pin hole from a big dent.
All fixed
I then reinstalled the cooler in the sled. You can see how far ahead I had to move it to clear the track with 2.86 pitch 8 tooth drivers.

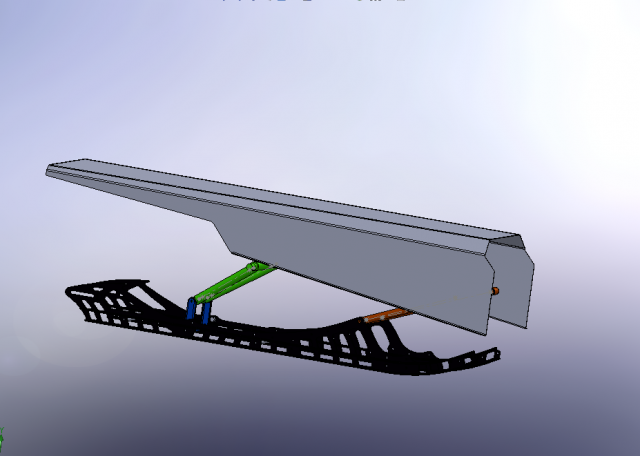

I then did some reverse engineering on my skid. And designed a tunnel. The skid is not perfect but it is close.

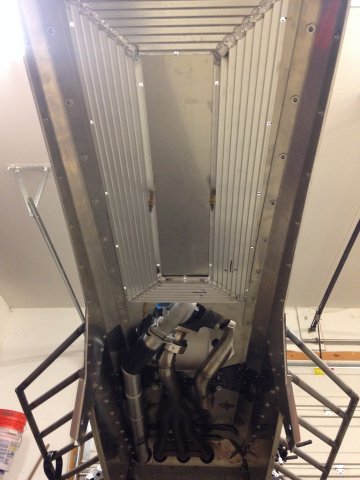

Tunnel Skin mocked up
It was a good thing I had to do this because after welding the lower right coolant intake closed I pressure tested it and found a pin hole from a big dent.
All fixed
I then reinstalled the cooler in the sled. You can see how far ahead I had to move it to clear the track with 2.86 pitch 8 tooth drivers.
I then did some reverse engineering on my skid. And designed a tunnel. The skid is not perfect but it is close.
Tunnel Skin mocked up
