Here I wanted to show you guys a behind the scenes picture of the tunnel extension just before I shot it with the first coat of powder...

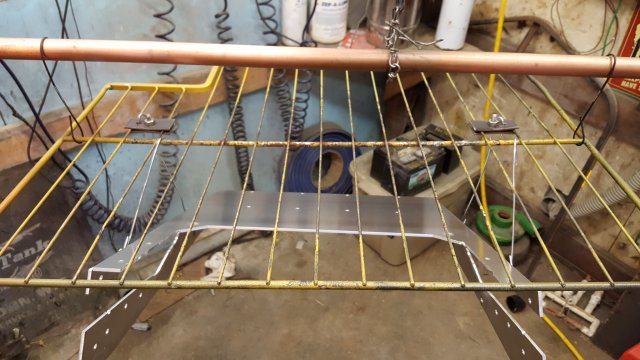

The photo doesn't look like much, but it took me over an hour just to hang the extension from the rack as shown. All I have is an old kitchen range to cook parts, so before I bake anything important, I practice placing the part in the oven so that it will fit without bumping the sides; that involves hanging and re-hanging the part several times to get it right. I know I'm into my 4th month of building this project, but it's little things like this that consume an enormous amount of time.



[MrSled]

Here I wanted to show you guys a behind the scenes picture of the tunnel extension just before i shot it with the first coat of powder...

The photo doesn't look like much, but it took me over an hour just to hang the extension from the rack as shown. All I have is an old kitchen range to cook parts, so before I bake anything important, I practice placing the part in the oven so that it will fit without bumping anything and screwing up the finish. That involves hanging and re-hanging the part several times to get it right. I know I'm into my 4th month of building this project, but it's little things like this that consume an enormous amount of time.

View attachment 120509

It not about the time, its more about the fun of the build and the learning curve along with custom design and fabrications that does it for me.



[Redbeard]

...hope to see this winter.

Mark, are you coming to the Giveaway ride this winter? It's usually around the end of January. As soon as Tom posts the date this fall, I'm on it!



[Redbeard]

I have been swamped with work at home lately, so progress on the sled is moving really slow! I finished running all the air lines, except for the ski shocks. I'll run those lines once I get the shocks back from getting a rebuild at fast. I also installed Weather Pak connectors on the air solenoid coils and replaced a torn tie rod boot. With the exception of a few other knick knacks, the sled is ready to be set back on the floor. Once there, I'm going to replace the tie rod ends above the exhaust header, then all the body panels can be re-installed.

The next big task will be the wiring.



[Redbeard]

It's on the floor! I temporarily placed the seat and tail light assembly on to get a full preview.

My goal is to have the body panels fully assembled by mid-week; it's time to shut 'er down and go to work.



[yamadoo]

Mark, are you coming to the Giveaway ride this winter? It's usually around the end of January. As soon as Tom posts the date this fall, I'm on it!

My schedule isn't out yet but will try to do at least one muni try ride. Last year did the March ride worked well. The give away ride is close to the Manitoba ride and I really enjoy that as well. Lots of great problems to have



[Redbeard]

Tie rod ends above the exhaust header are replaced! I find it odd that these ends were sloppy and the outer tie rod ends for each ski are still good!? I'm guessing it's related to heat and the design of the joint. I'd like to note that wrenches used for tightening wheels on an angle grinder work nicely for keeping tie rods locked in position when tightening jam nuts. Minor grinding involved, and I can still use them for my grinders...lol!

The engine coolant is looking past its sell by date, so time to drain 'er down and replace with new. This will give me a good opportunity to run the sled and align the track while I'm at it!



[Redbeard]

Engine coolant is replaced and the cooling system is bled down. I primed the carbs with gas, hit the key and she lit instantly!

OK, I attempted to align the track while the sled was running, but had limited success...it just wouldn't align...at the front of the track! Hmm...I had the same issue on this exact sled 6 years ago when it was converted to a 151" track. I ultimately had to shift the extrovert drivers 1/8" to the left on the drive shaft to square everything up. This time, they need to go back 1/8" to the right!??? I'm not sure what gives here, other than different skids and tracks??

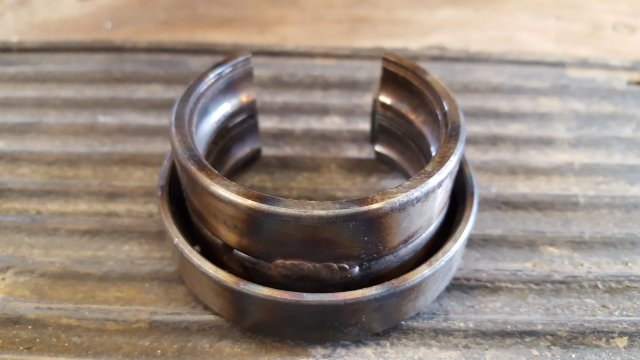

So, instead of pulling the skid back out, dismantling the chain case, etc...etc...I enlisted the help of my custom driver relocation tool, for the second time! It's made from an old hex collar that was once used to keep the original factory drivers from walking back and forth. I split the collar and made it into a two-piece clamp that fastens around the drive shaft. There are two pusher bolts that push against a collar, which puts force on the driver and moves it.

20 minutes later, the track is now aligned!



[MrSled]

Engine coolant is replaced and the cooling system is bled down. I primed the carbs with gas, hit the key and she lit instantly!

OK, I attempted to align the track while the sled was running, but had limited success...it just wouldn't align...at the front of the track! Hmm...I had the same issue on this exact sled 6 years ago when it originally got converted to a 151" track. I ultimately had to shift the extrovert drivers 1/8" to the left on the drive shaft to square everything up. This time, they need to go back 1/8" to the right!??? I'm not sure what gives here, other than different skids and tracks??

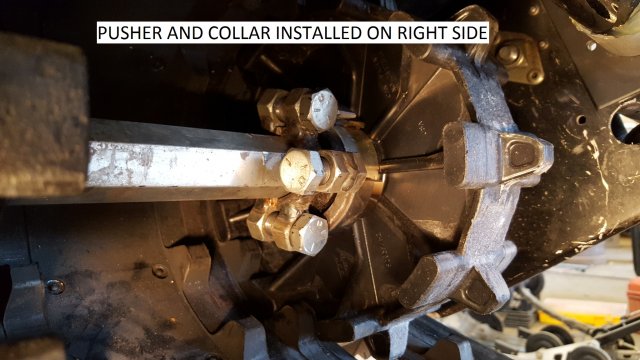

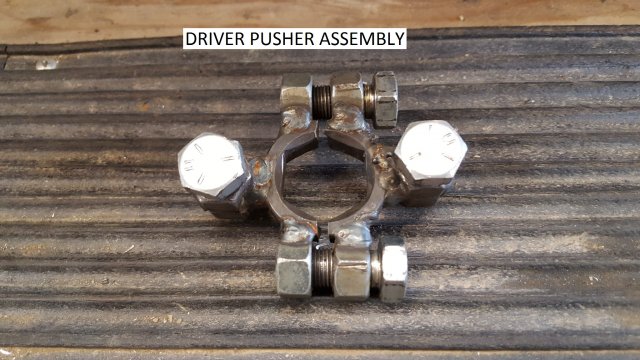

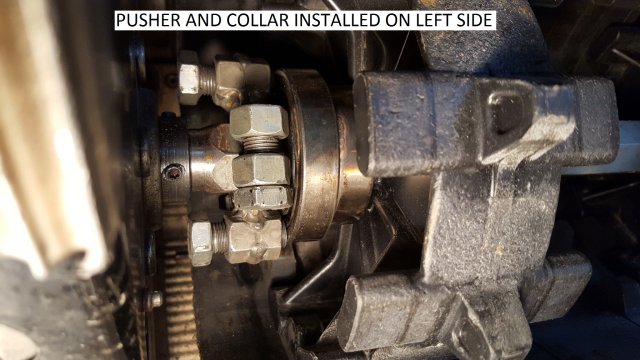

So, instead of pulling the skid back out, dismantling the chain case, etc...etc...I enlisted the help of my custom driver relocation tool, for the second time! It's made from an old hex collar that was once used to keep the original factory drivers from walking back and forth on the drive shaft. I split the collar in two and use bolts / welded nuts to clamp it around an installed drive shaft. There are two pusher bolts that push against a collar, which puts force on the driver and moves it.

20 minutes later, the track is now aligned!
